D3-08TA-2

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (7)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (7)
  • Click a star to rate this product
Automation Direct Koyo PLC Direct 8 Point 110/220 VAC Output.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a D3-08TA-2 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: D3-08TA-2
  • SKU: AD-3103
  • Manufacturer: Automation Direct
  • Series: DirectLogic 305

D3-08TA-2 Technical Specifications

Manufacturer Automation Direct
Series DirectLogic 305
Part Number D3-08TA-2
Weight 6.4 oz
Operating Temperature 32°F to 140°F (0°C to 60°C)

About the D3-08TA-2

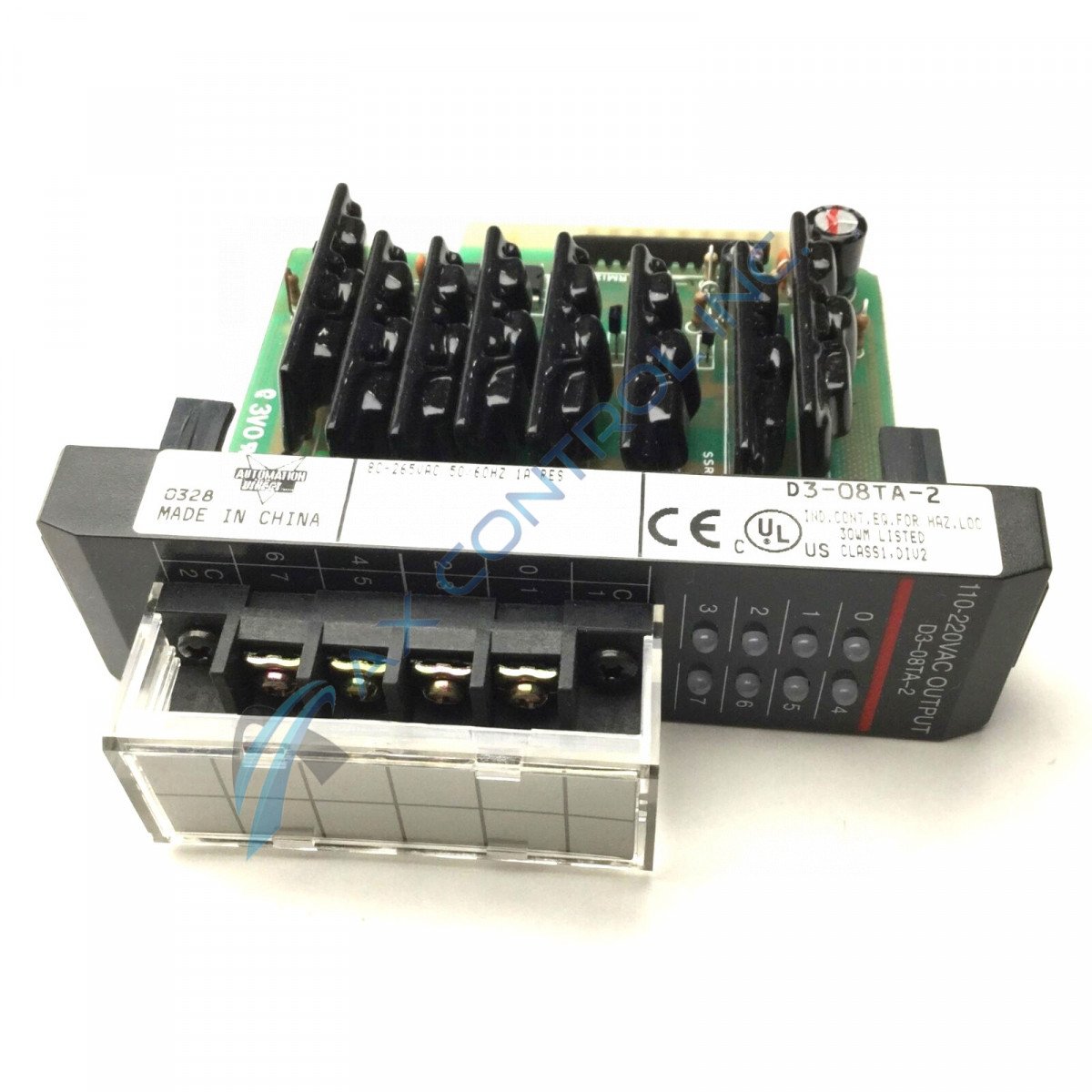

  • The D3-08TA-2 I/O Base is an 8-point, 110-220V AC output module.

Specifications
  • Output: Supports 1 A per point.
  • Commons: Contains 2 isolated commons.
  • Fuses: Features 2 non-replaceable fuses (one 5A fuse per common).
  • Operating Voltage: 80-265 VAC.
  • Output Type: Triac.
  • Peak Voltage: 265 VAC.
  • Minimum Load: 25 mA.
  • AC Frequency: 47-63 Hz.
  • Maximum Leakage Current: 1.2 mA at 220VAC, 0.52 mA at 110VAC.
  • Required Base Power: 9V 20 mA per point (160 mA maximum); 24 V not applicable.
  • Maximum Inrush Current: 10A for 16 ms and 5A for 100 ms.

Structure and Expansion
  • The D3-08TA-2 I/O Base has 8 slots for CPUs, I/O devices, and other types of devices.
  • It supports one CPU base and one expansion base.
  • Expansion bases must be either 5-slot or 8-slot types.
  • Features a non-removable terminal.

Environmental and Physical
  • Weight: 6.4 oz (180 g).
  • Operating Temperature: 32°F to 140°F (0°C to 60°C).
  • Operating Humidity: 5% to 95% relative humidity (non-condensing).

Reviews For D3-08TA-2

Internal Review
(5.0)

The D3-08TA-2 I/O Base is a capable 8-point, 110-220V AC output module designed for various industrial applications. It supports 1 Amp per point and features two isolated commons, enhancing its versatility. This module is built with an 8-slot capacity for CPUs and I/O devices, supporting one CPU base and one expansion base (either 5-slot or 8-slot). It operates within an 80-265 VAC range with a Triac output type. Key electrical specs include a 25 mA minimum load and specific leakage current values. Weighing just 6.4 oz (180 g), it's a compact unit with a non-removable terminal and non-replaceable fuses. It's designed for a wide operating temperature range of 0°C to 60°C and 5-95% non-condensing humidity. The D3-08TA-2 appears to be a robust and straightforward solution for AC output control in compatible systems.

Repair Services For D3-08TA-2

Type Lead Time Price Action
Repair Service 1-2 weeks $287

Our highly skilled technicians can repair your D3-08TA-2. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
