D3-05BDC I/O Base

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a D3-05BDC to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

D3-05BDC

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (7)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (7)
  • Click a star to rate this product
D3-05BDC I/O Base

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a D3-05BDC to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

Note that the total current for the D3-05B and D3-05BDC should not exceed 2.3 mps.

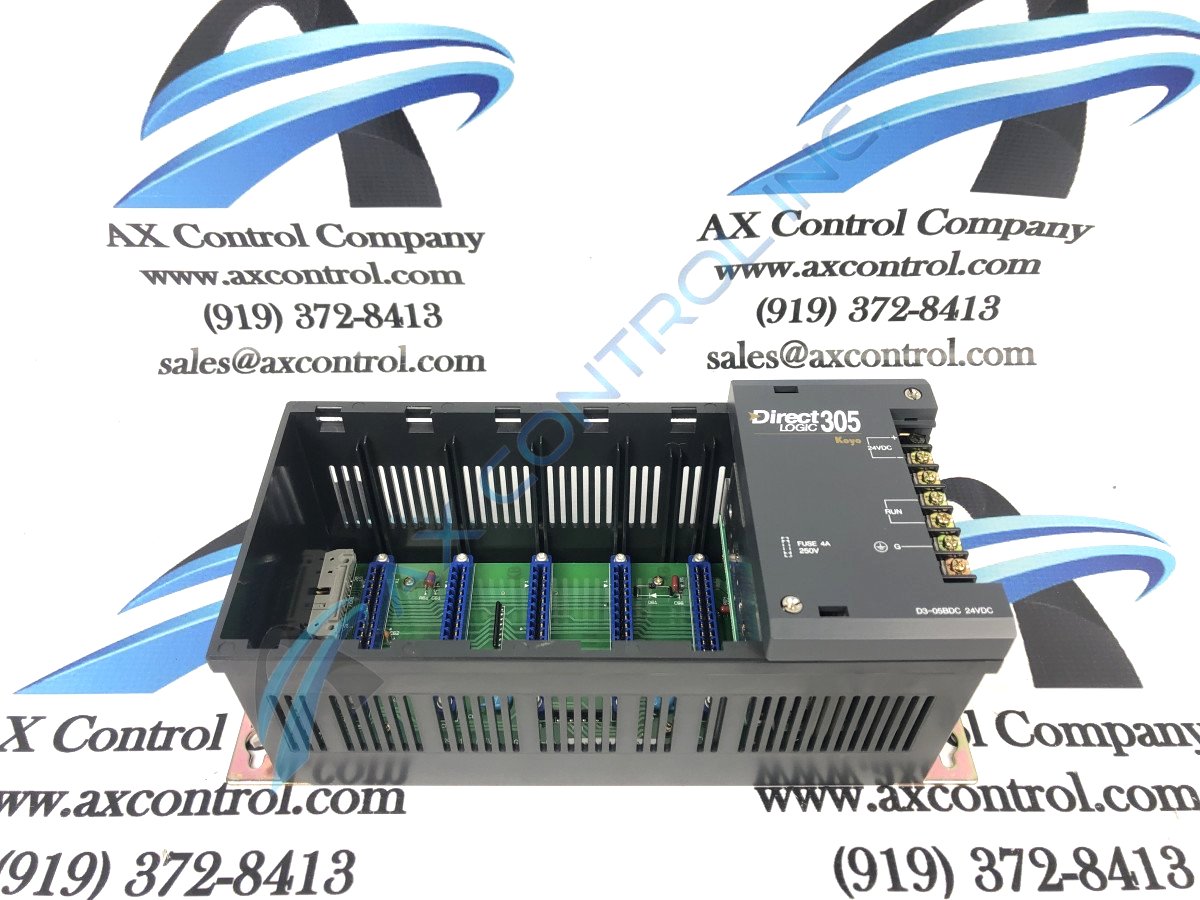

The D3-05BDC I/O Base contains 5 slots for CPUs, I/O devices, and other types of devices. The D3-05BDC can support one CPU base and two expansion bases. The D3-05BDC is a 5-slot I/O base so the expansion bases must also be 5-slot expansion bases.  The input voltage range is 20.5-30VDC <10% ripple and the base power consumption is 48 Watts maximum. The maximum inrush current maximum is 30A. Dielectric strength is 1500VAC for one minute between 24VDC input terminals and run output.

The power supply output (voltage ranges and ripple) is (5VDC) 4.75-5.25V with 5% ripple, (9VDC) 8.5-10V with 5% ripple, and (24VDC) 20-28V with 5% ripple. The 5 VDC current supplied is 1.4A. The 9 VDC current supplied is 0.8A. The 24 VDC current supplied is 0.5A.

The fuse requirement is 4A (250V) user-replaceable.  The dimensions are 11.42 W x 4.85 H x 4.41 D in. (290Wx123Hx112D mm). The weight is 34oz. (964g). The operating temperature is 32° F to 140° F (0° C to 60° C). The operating humidity is 5% to 95% relative humidity (non-condensing).

The D3-05BDC supplies 1400 mA at 5V, 800 mA at 9V, and 500 mA at 24V.
