Product Description

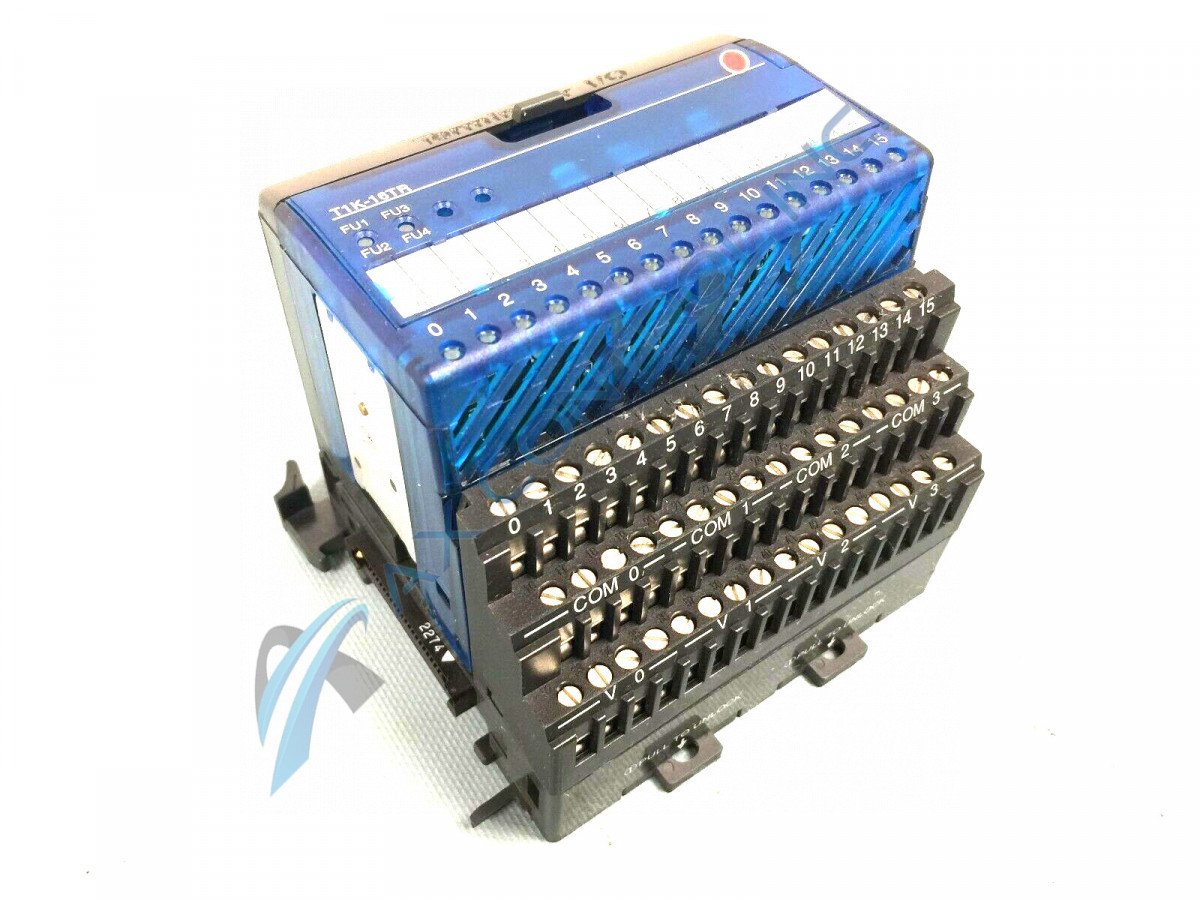

The 16 Point, 4 Common Relay Powered Output Module is from Automation Direct, but Koyo and PLC Direct are the producers of the product. The 16 points on the device are all normally open outputs. For every 4 points there is an isolated common in the module. The dimensions of the device are 3.5 x 3.15 x 3.28 and it weighs 200 grams. The ambient temperature that the device must stay within the range of 0 and 55 degrees Celsius. The temperature that the device should be stored in is between -20 and 70 degrees Celsius. To notify the user of status issues, there is a logic side status indicator.

The 16 Point, 4 Common Relay Powered Output Module has an output voltage range that spans from a 5 to 264 VAC and a 5 to 30 VDC. The operating voltage ranges from 6 to 240 VAC and 6 to 27 VDC. The frequency of the device volleys between 47 and 63 Hz. The maximum leakage current is .1 mA at 264 VDC. The maximum inrush current per point is 6 amps for 10 milliseconds. Per common, the maximum inrush current is  20 amps for 10 milliseconds.

The base power of the 16 Point, 4 Common Relay Powered Output Module is 700 mA at 5 VDC. The off/on response is less than 15 milliseconds and the on/off response is less than 10 milliseconds. There are 4 replaceable fuses within the system that is connected to the indicator system. The product number of the fuse replacements is T1K-FUSE-1.

The searchable product number of the 16 Point, 4 Common Relay Powered Output Module is T1K-16TR. The module is compatible with both the T1K-16B and T1K-16B-1 bases. The product numbers of the instruction booklets are the T1K-INST-M and T1H-DM-M manuals. Call us now to get pricing quotes and information about our warranties.

Repair Services For T1K-16TR

Type Lead Time Price Action
Repair Service 1-2 weeks $281

Our highly skilled technicians can repair your T1K-16TR. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
