T1K-16TA

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.57 (7)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.57 (7)
  • Click a star to rate this product

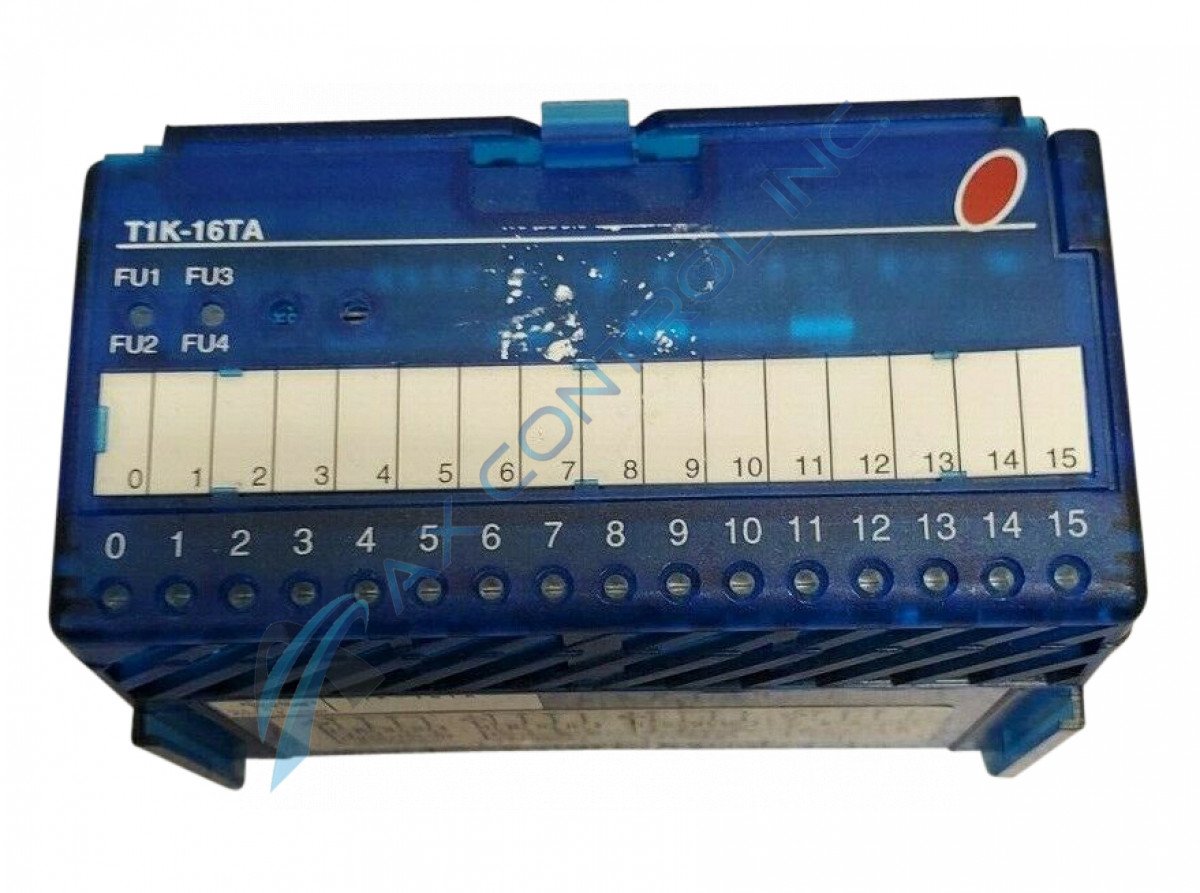

Made by Automation Direct in the DirectLogic 205 Series module, T1K-16TA is a 16 AC Output 4 Common Module. The power supply for this model is from a T1K-01AC. The milliamperage required for this unit is 450 mA.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Warranty: Learn More
Sell Surplus: Have a T1K-16TA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: T1K-16TA
  • SKU: T1K16TAAD
  • Manufacturer: Automation Direct
  • Series: DirectLogic 205

T1K-16TA Technical Specifications

Part Number T1K-16TA
Series DirectLogic 205
Manufacturer Automation Direct
Maximum Inrush Current 10 A for 10 ms
Off to On Response Time <1 ms
Status Indicators Logic Side
Output Voltage Range 15-264 VAC (47-63 Hz) min./max.
Weight 190 grams

Product Description

The T1K-16TA module is part of the DirectLogic 205 Line manufactured by Automation Direct. This module is considered an Alternating Current (AC) output module; the unit has 16 outputs per module, with the four commons being isolated. During the operation of this device, it should be noted that the workroom stays at an ambient temperature of 0 and 55 degrees Celsius. When the T1K-16TA module is in storage, the temperature should be between -20 and 70 degrees Celsius. The dimensions of the T1K-16TA unit are 3.5 x 3.15 x 3.28, with a weight of 190 grams. A logic side status indicator is the best way to alert the user that faults are occurring on the model.

The operating voltage of the T1K-16TA unit ranges between 17 and 240 VAC (volts of alternating current). The appropriate frequency of this unit will sway between 47-63 Hertz. The output voltage range is between 15-264 VAC. The module also has a maximum leakage current of 4 mA @ 264 VAC. The maximum load current per point is one amp and four amps per common. The inrush current for the device is ten amps for approximately ten milliseconds.

The base power required to run the module is 450 mA @ 5 VDC and needs no external power. The off/on response of the device is less than one millisecond, and the on/off response is less than one millisecond plus 1/2 cycle; four fuses connect to the system with personal status indicators.

The module is compatible with both the T1K-16B and T1K-16B-1 bases. The product numbers of the instruction booklets are the T1K-INST-M and T1H-DM-M manuals.

Frequently Asked Questions about T1K-16TA

Is there a specification regarding what type of Input/Output module the T1K-16TA model is?

Yes, within the DirectLogic 205 series and Terminator I/O modules, there are four different types of modules; base units, analog I/O modules, discrete I/O modules, and specialty modules. The T1K-16TA model falls under the discrete I/O module specification. As a discrete I/O module, the unit is considered an AC output module. As an AC output module, there are sixteen outputs.

Are there any resistances associated with this model?

Yes, there are two available resistances on the T1K-16TA module. The two resistances are shock and vibration resistance. Each of the available resistances has its own specifications. The vibration resistance on this model is MIL-STD 810C with method 514.2. The shock resistance on this module is MIL-STD 810C with method 514.2 as well.

If the fuses on the T1K-16TA module blow can they be replaced?

Absolutely! If the fuses on the T1K-16TA module fail or blow, they can be replaced. The type for the fuse replacement is 5 x 20 mm. There are four points per fuse.
