T1K-16NA-1

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product

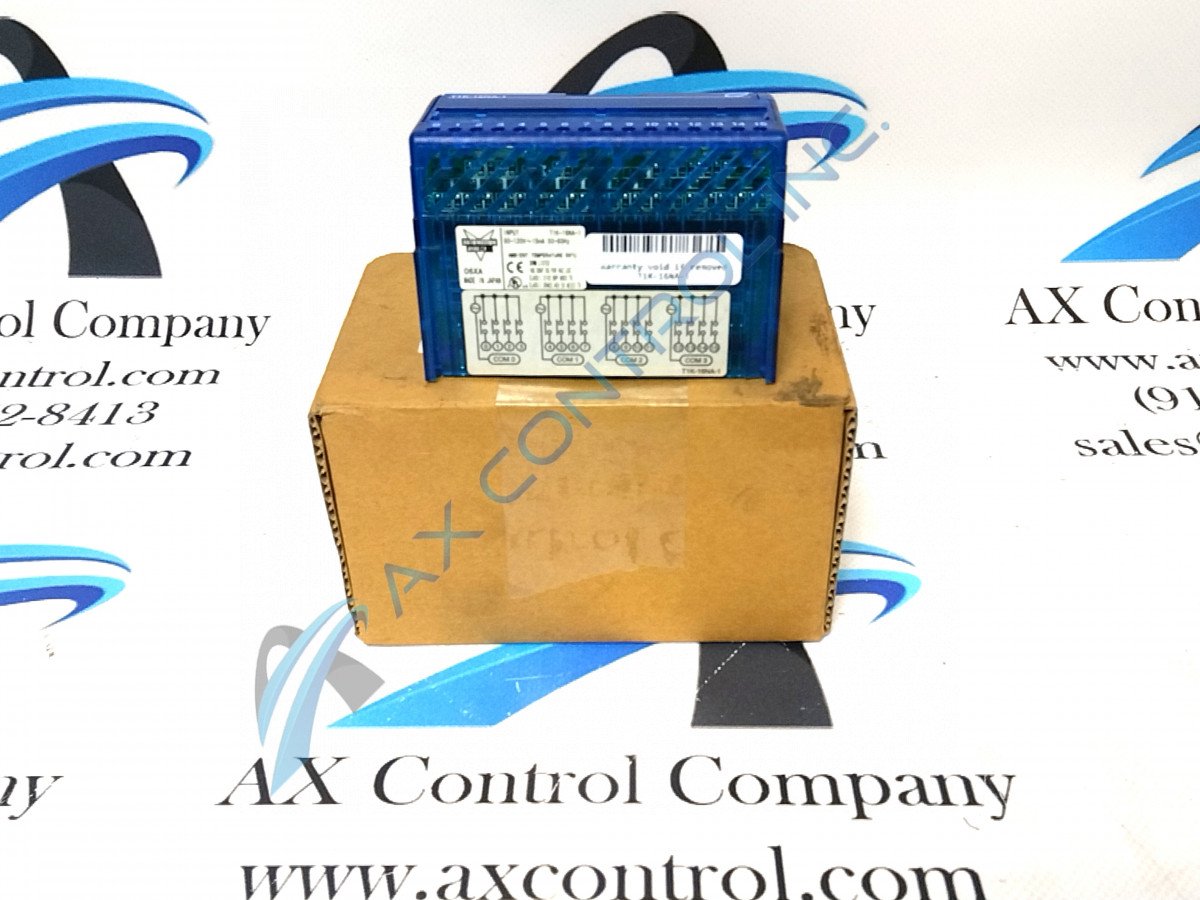

The T1K-16NA-1 module is part of the Terminator I/O DirectLogic 205 series from Automation Direct. The module has sixteen inputs per module with four isolated comms per module. When the module is being mounted in the DirectLogic 205 series, it requires a base module.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a T1K-16NA-1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: T1K-16NA-1
  • SKU: T1K16NA1AD
  • Manufacturer: Automation Direct
  • Series: DirectLogic 205

T1K-16NA-1 Technical Specifications

Part Number T1K-16NA-1
Series DirectLogic 205
Manufacturer Automation Direct
Product Type Termination Field I/O
Inputs per Module 16
Commons per Module 4 points; isolated
Status Indicators Logic Side
Weight 120 grams

About the T1K-16NA-1

The T1H-16NA-1 is a 16 Point, 4 Common AC Input Module from Automation Direct's DL205 product line. On this device, there is an isolated common for every four inputs. During the operation of this module, it is required that a T1K-16B or T1K-16B-1 base be used. The device's dimensions are 3.5 x 3.15 x 3.28 and weighs 120 grams.

While in use, the module should stay at an ambient temperature that ranges from 0 to 55 degrees Celsius. While in storage, the module should reside in a space that remains between -20 and 70 degrees Celsius. The T1H-16NA-1 model has logic side status indicators; these indicators will help notify the users of any potential problems within the device.

The input voltage range of the T1H-16NA-1 is between 80 and 132 VAC with a frequency of 73 to 63 Hz. The operating voltage range of the device spans from 90 to 120 VAC. There are many variants of the input current. When running at 50 Hz, the input current is eight mA at 100 VAC and 12 mA at 132 VAC. Running at 60 Hz, the input current is ten mA at 100 VAC and 15 mA at 132 VAC. The input impudence of the device is 14 KΩ at 50 Hz and 12 KΩ at 60 Hz.

The base power required to run the T1H-16NA-1 is 70 mA at 5 VDC. While on, the device has a voltage of less than two mA at 20 VAC. While off, the device's voltage is six mA at 75 VAC. The on/off and the off/on responses are less than 40ms.

Frequently Asked Questions about T1K-16NA-1

What is the T1K-16NA-1 model?

The T1K-16NA-1 module is a Termination I/O field module produced by Automation Direct for the DirectLogic 205 series. This module is described as a sixteen-point AC input module. When the module is being operated, it requires either a T1K-16B or T1K-16B-1 base. This module also has four-point isolated commons per module as well.

Are there any agency approvals for the T1K-16NA-1 unit?

Yes, the T1K-16NA-1 module has three agency approvals; those approvals are UL, CE, and FCC class A.

Does the T1K-16NA-1 module feature any noise immunities?

The T1K-16NA-1 model does feature noise immunity features; those features are FCC class A, NEMA IC53-304, RFI at 144 MHz 10 W, 10 cm, and impulse noise at 1000V for one us. For more information on the noise immunity features refer to the T1K-INST-M manual.
