  • Part Number: T1F-8AD4DA-1
  • Manufacturer: Automation Direct
  • Series: DirectLogic 205

Product Description

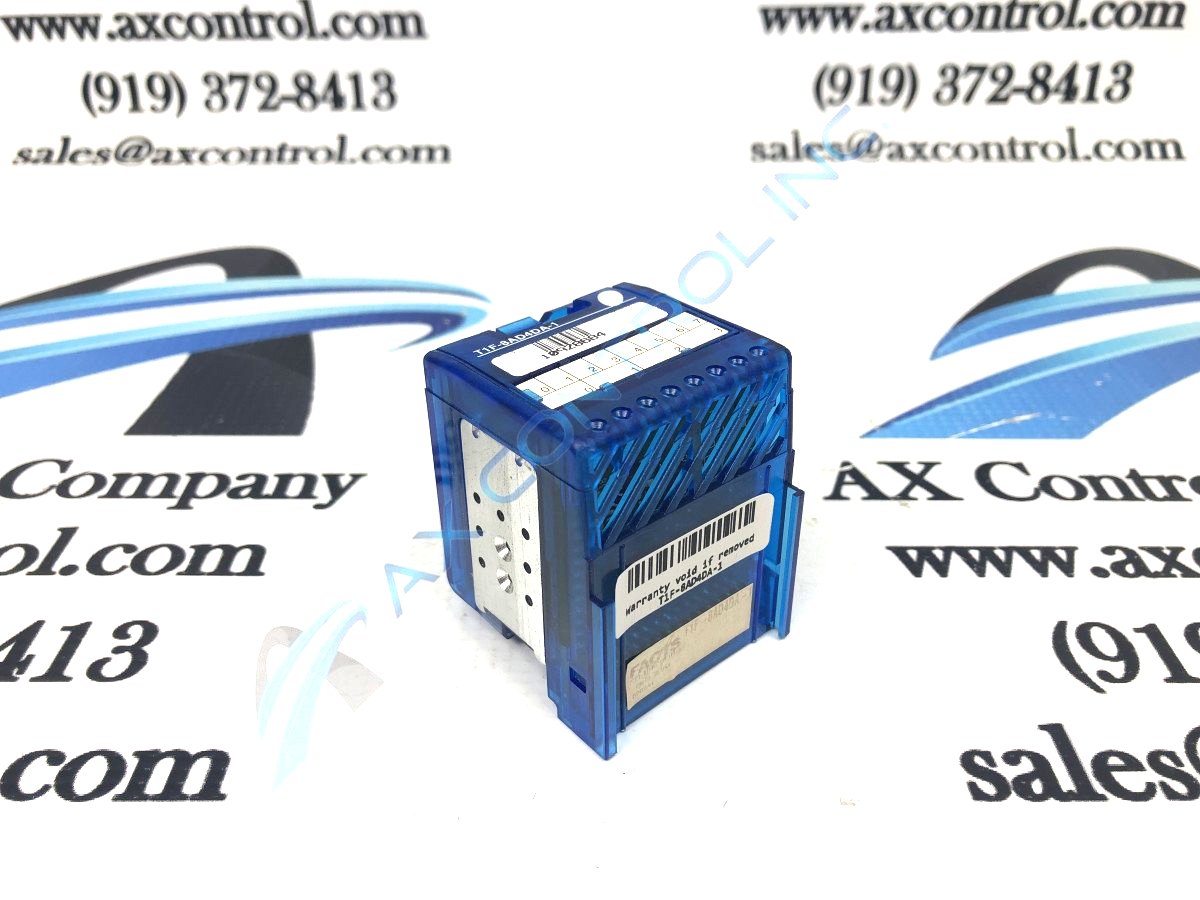

T1F-8AD4DA-1 is a combination analog current module developed by Automation Direct, Facts Engineering, and Koyo. Eight analog current input channels and four analog current output channels make up the communication points of this combination module. It is from the Terminator I/O series, allowing for a wide array of programmable logic controllers and modules it can interface with. When updating data on the module, the CPU of the PLC will update one channel with a single scan.

Input and output rates vary depending on incoming data and user specifications. When inputting data, three input ranges are supported. Included ranges are -20 to 20 mA, 0 to 20 mA, and 4 to 20 mA. The absolute maximum rating the module can support is 8V. All eight of the inputs terminates in a single common. Incoming data is precisely converted from analog current to digital signals using the 14-bit resolution.

The four output channels offer some user configurability. Each channel can be wired to act as either a sink or source output. A single ended output type is available, as all outputs end at a single common. The supported output range of T1F-8AD4DA-1 is 4 to 20 mA. A 12-bit resolution converts outgoing digital signals back to an analog current medium.

All storage and installation parameters should be met to maintain the integrity of T1F-8AD4DA-1. Before installing the module, be sure to have purchased the corresponding mounting base. When installing, be sure to mount the module horizontally. This allows air to freely flow around the module, creating a cooling effect. Operating temperatures must fall within a certain range to preserve the device. Temperatures can range as low as 0℃, or 32℉, and as high as 60℃, or 140℉. Be sure to refer to the correct series manual and device datasheet for all installation and wiring parameters. Automation Direct provided original technical support for the module.

AX Control is available to assist with your T1F-8AD4DA-1 needs. Please contact our office for current prices on all parts and repairs.

Repair Services For T1F-8AD4DA-1

Type Lead Time Price Action
Repair Service 1-2 weeks $228

Our highly skilled technicians can repair your T1F-8AD4DA-1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
