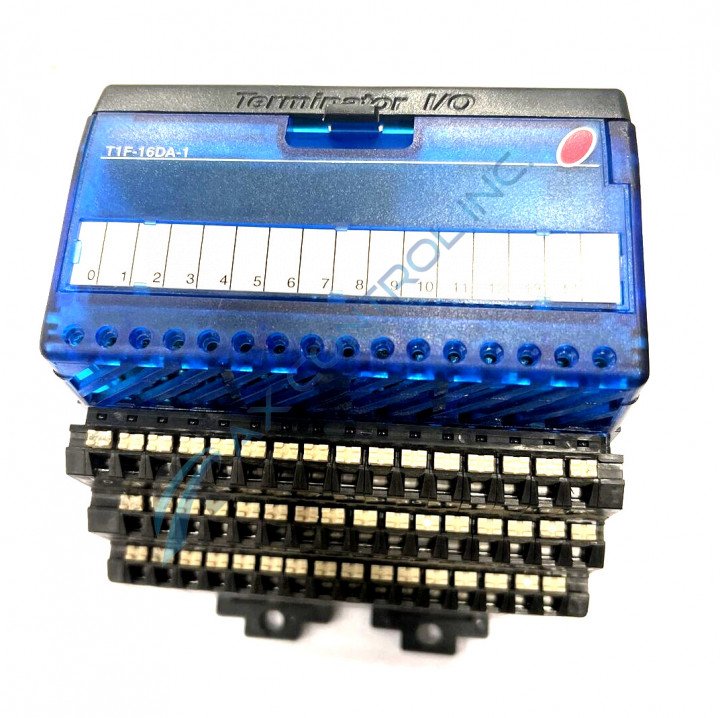

The 16-channel analog current output module T1F-16DA-1 was manufactured by Automation Direct for the DirectLogic 205 (DL205) series. The model is a 16-channel analog current output module and has an output range of 0-20 mA or 4-20 mA and has a single-ended common.



Sell Surplus: Have a T1F-16DA-1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: T1F-16DA-1
  • SKU: T1F16DA1AD
  • Manufacturer: Automation Direct
  • Series: DirectLogic 205

T1F-16DA-1 Technical Specifications

Part Number T1F-16DA-1
Series DirectLogic 205 (DL205)
Manufacturer Automation Direct
Product Type Termination I/O Module
Conversion Settling Time 100 microseconds full scale change
Master Update Rate 16 Channels per Scan
Weight 172 grams

Product Description

The Automation Direct sixteen-channel analog current output module T1F-16DA-1 is a member of the Terminator I/O series that supports communication with several programmable logic controllers and peripheral devices. All channels terminate into a single common, providing a single-ended output type. An integrated 12-bit resolution converts outgoing digital signals into analog currents, an acceptable medium for connected devices.

Voltage and current levels of the module require routine monitoring to preserve the device. Two output current ranges, 0-20mA, and 4-20mA, are supported by T1F-16DA-1. The peak output voltage and maximum loop supply will measure 30 VDC. Base power requirements of the device average 75 mA at 5 VDC. Before installing the module, purchase the separately sold required mounting base. This mounting features a key design element of the series, allowing for snap installation. A simple snap secures the module and releases it from the mounting, allowing for quick part replacement.

Be sure to follow all installation and safety protocols to maintain the T1F-16DA-1 module's integrity. A horizontal mounting of the device is required, allowing air to circulate the module. This increased airflow acts as a cooling agent, preventing T1F-16DA-1 from overheating. Ambient temperatures of the operating facility should be maintained within the outlined range. Temperatures can safely range from 0°C to 60°C or 32°F to 140°F. Storage temperatures offer more flexibility, with safe ranges dipping to -4°C, or -20°F, and raising to 70°C, or 158°F. Refer to the series user manual and device datasheet for a comprehensive list of installation and wiring parameters.

Frequently Asked Questions about T1F-16DA-1

What is the T1F-16DA-1 module?

The T1F-16DA-1 module is a sixteen-channel analog output module. This module has a single-ended, one-common output type with an output range of 4-20 mA or 0-20 mA. This module is one of the termination input-output modules in the DirectLogic 205 series.

What is the base power required when using the T1F-16DA-1?

The base power for this model is 75 mA at approximately 5 volts of direct current (VDC). A base module is required when using the T1F-16DA-1 unit.

What precautions should I use when mounting the T1F-16DA-1 module?

One of the precautions that should be used when mounting the T1F-16DA-1 module is that it must be mounted right-side up. If the module in mounted upside-down then it will limit the cooling processes and could cause the module to overheat.

Reviews For T1F-16DA-1

Internal Review

The T1F-16DA-1 module is an excellent source to use when requiring a unit that has sixteen channels but only has two minimum output ranges. For a model that has more output ranges, it would be best to use the T1F-16DA-2 module, which is functionally the same as this unit. - AX Control Tech
