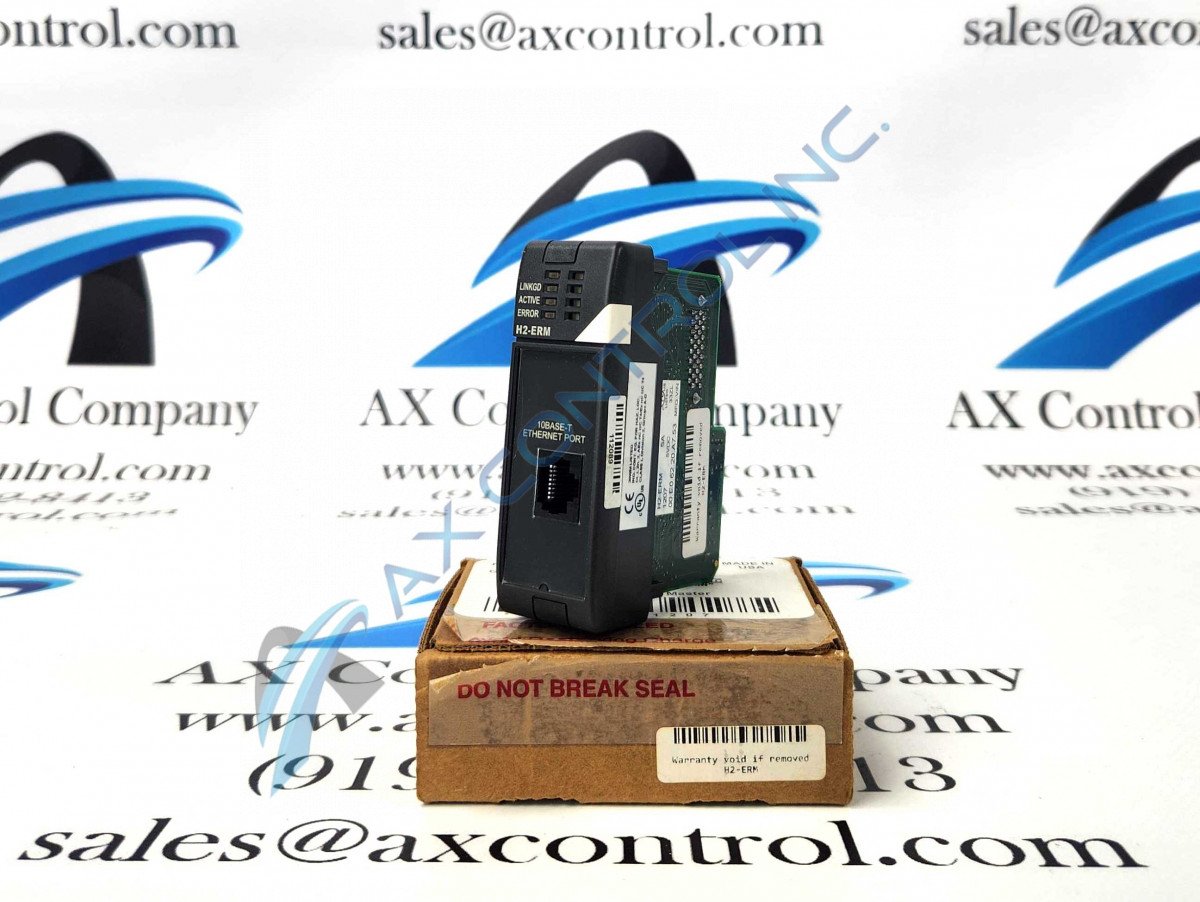

H2-ERM Image One
3 year warranty

H2-ERM Image 1
H2-ERM Image 2
H2-ERM Image 3
H2-ERM Image 4


    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (9)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (9)
  • Click a star to rate this product
AutomationDirect's H2-ERM is an Ethernet Remote Master Module that enables remote communications over Ethernet with up to sixteen slave devices.



Sell Surplus: Have a H2-ERM to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: H2-ERM
  • Manufacturer: Automation Direct
  • Series: DirectLogic 205

H2-ERM Technical Specifications

Master Communications Model Number H2-ERM
Series DirectLogic 205 (DL205)
Manufacturer Automation Direct
Module Type Ethernet I/O Communications Master Module
Diagnostics ERM Workbench, NetEdit, LEDs
Communications Type 10BaseT Ethernet
Data Transfer Rate 10 Millions bits Per Second
Power Consumption 320 mA at 5 VDC; supplied by DL205/DL405 bases
Diagnostics LEDs, ERM Workbench, NetEdit
Link Distance 100 meters (328 feet)

Product Description

The H2-ERM Ethernet Remote Master (ERM) was manufactured by Automation Direct to work with series such as DirectLogic 205 and 405 units, WinPLC, and Do-more PLC systems. This unit is used to provide high-speed Ethernet Remote Input-Output (I/O) links at a low cost. The ERM unit will connect Ethernet remote slave modules, up to sixteen, to local CPU bases, through a 10BaseT, twisted pair, copper wire Ethernet link. The number of H2-ERM modules per CPU depends on the power Per Basebudget and the base configuration. When the H2-ERM is being configured within the DirectLogic systems, it is recommended that a PC with a 10BaseT network adapter card be used so the ERM Workbench software can be easily configured and downloaded.

There are general specifications that help operate the H2-ERM without any errors. The data transfer used in connection with the 10BaseT Ethernet communications is ten million bits per second. The proper power consumption required from the DirectLogic 205/405 bases is 320 mA at 5 VDC; if another power consumption is used, it can potentially cause errors or even personal injury in some cases. When mounting the unit, please make sure that the H2-ERM is used in a location where no corrosive gases are permitted; if the module is used in a location where there are corrosive gases, it can affect how the module works as well as break down the outside of the device.

One feature of the H2-ERM module is that it can be used for diagnostic testing on the attached slave units. The module can also diagnose the error codes and indicates the codes and potential faults on the unit. For the list of fault and error codes, refer to Appendix B in the H24-ERM-M User Manual.

Frequently Asked Questions about H2-ERM

What is the H2-ERM?

The H2-ERM is an Ethernet I/O Remote Master Module that will connect to DirectLogic 205/405 CPU bases to provide high-speed Ethernet Remote I/O linkage at a low cost.

How many remote I/O configurations does the H2-ERM support?

The H2-ERM can support up to sixteen DL205, sixteen Do-more EBC bases, sixteen fully expanded DL405 EBC systems, Ethernet Interfaces for AC Drives, sixteen terminator I/O EBC, or a combination of these units. When a WinPLC system is used with the H2-ERM only one slave unit can be supported.

Can slots on one of the many CPU bases be reserved for future I/O expansion?

Absolutely. The CPU bases have padding features in the slave configuration window of the associated ERM workbench, which can reserve addresses for future I/O units at the end of each EBC slave system.

Reviews For H2-ERM

Internal Review

One of the major benefits of AutomationDirect's H2-ERM device is that not all of the units connected to the network have to be the same variety; the ERM module supports up to 16 DL205/Do-more! EBC bases, 16 Terminator I/O EBC systems, 16 fully expanded DL405 EBC systems, Ethernet Interfaces for AC Drives or any combination of the four. - AX Control Tech
