H2-EBC100

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product
Manufactured by Automation Direct for the DirectLogic 205 series, the H2-EBC100 unit is an Ethernet Base Controller. It is used for Ethernet communications and has a data transfer rate of 100Mbps with a link distance of 328 feet.
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a H2-EBC100 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: H2-EBC100
  • SKU: AD-3062
  • Manufacturer: Automation Direct
  • Series: DirectLogic 205

H2-EBC100 Technical Specifications

Manufacturer Automation Direct
Series DirectLogic 205
Part Number H2-EBC100
Module Type Ethernet Base Controller
Power Consumption 350 mA
Link Distance 100 meters
Data Transfer Rate 100 Mbps
Shipping Weight 0.15 lb

About the H2-EBC100

  • Model: H2-EBC100.
  • Manufacturer: Automation Direct.
  • Series: Part of the DirectLogic 205 series.
  • Type: Ethernet Base Control (EBC) module.
  • Distinction: It is the only EBC module in the series with 10/100BaseT Ethernet communication (others are 10BaseT or 10BaseFL).
Key Applications & Connectivity
  • Provides high-performance Ethernet links between:
    • DL205 Input-Output Module and a PC-based control system.
    • WinPLC/DL205/DL405 CPUs (at low cost via an H-ERM module for remote I/O communications).
  • Can connect the DL205 I/O to a Modbus TCP/IP master device.
Technical Specifications
  • Data Transfer Rate: 100 Mbps.
  • Ethernet Ports/Protocols: RJ45, Modbus TCP/IP, HTML configuration, DHCP, IPX, and TCP/IP.
  • Typical Power Consumption: 350 mA.
  • Link Distance: 100 meters (328 feet).
  • Serial Ports/Protocols: Modbus RTU, K-Sequence, RJ12m, and ASCII In/Out.
Configuration & Documentation
  • Switches: Features eight individual switches, with six being active.

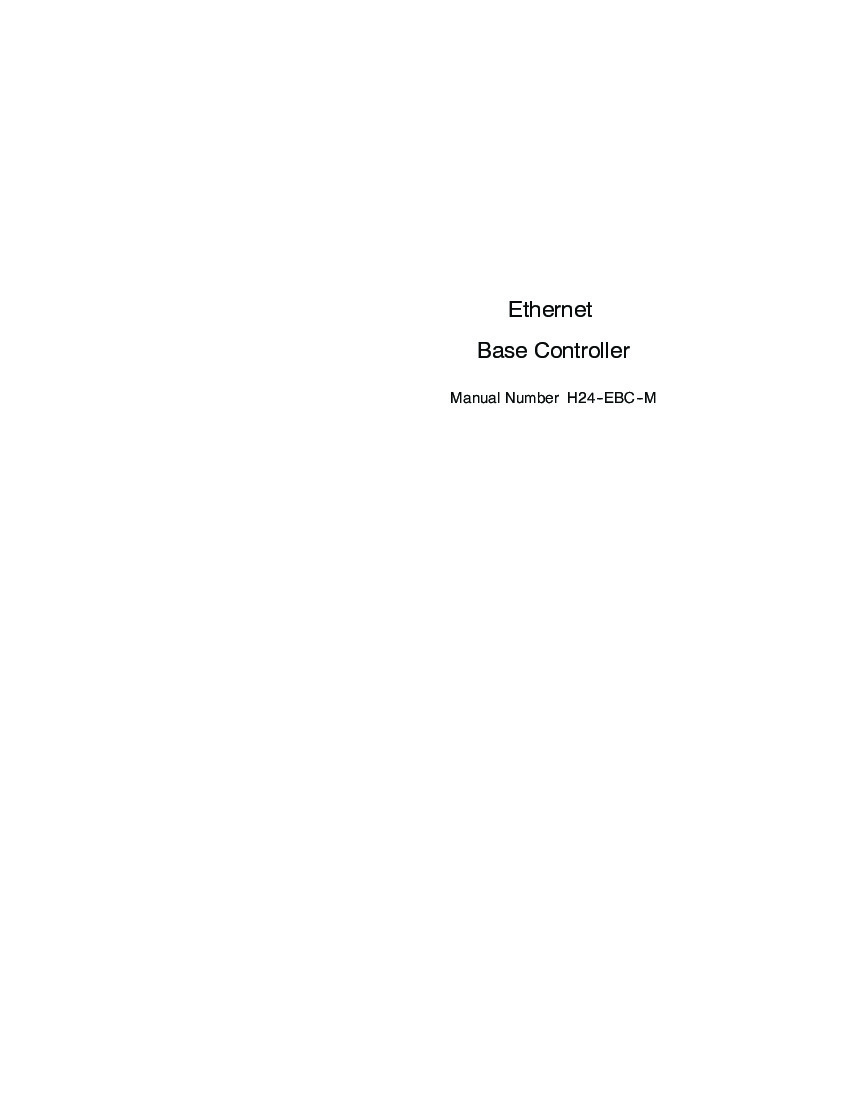

  • Manual: Refer to the Ethernet Base Controller manual H24-EBC-M for information on switch values, installation, and setup.
  • Datasheet: For differences and similarities between other Ethernet base controllers, refer to the attached Ethernet base controllers modules datasheet.

Frequently Asked Questions about H2-EBC100

What is the H2-EBC100 unit?

The H2-EBC100 unit is a 10/100BaseT Ethernet controller used primarily with Automation Direct DirectLogic 205 series. The H2-EBC100 model can also be used with DirectLogic 405 base modules.

Are there different power specifications on the H2-EBC100 module depending on what base is used?

All of the power specifications on the DL205 base models are the same no matter which base type will be used; when a 5V current supply is on the base, the power specification is 2600 mA. The power specification of bases supplied with an auxiliary 24 VDC current supplied the power will be 300 mA.

Reviews For H2-EBC100

Internal Review
(5.0)

The H2-EBC100 module can be inserted into any available CPU slot of a DirectLogic 205 base module. While the module will connect to a DL205 model none of the wiring will be connected directly to the H2-EBC100 unit making it much easier to remove if the module malfunctions and needs to be replaced. - AX Control Tech
