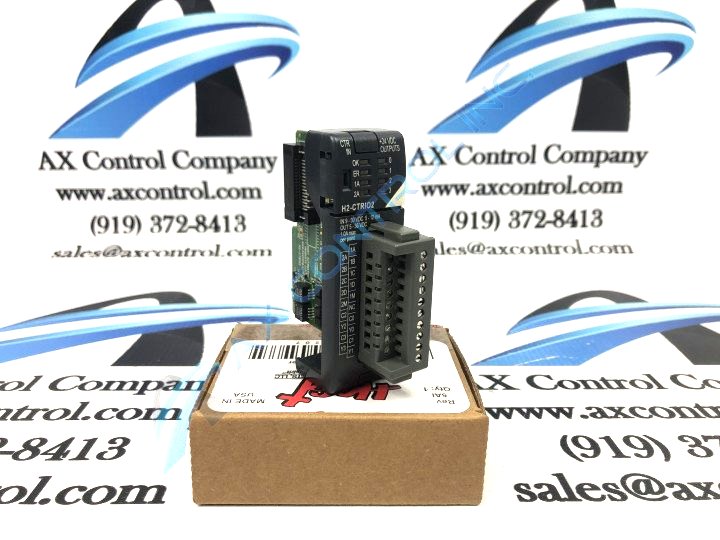

The H2-CTRIO2 High Speed Counter Interface features 8 DC sink/source inputs at 250 kHz maximum. The input voltage range is 9-30 VDC and the maximum voltage is 30 VDC. The H0-CTRIO features 5 LED indicators on the front of the device.
OK Model OK.
ER User program error.
1A Channel 1 status.
2A Channel 2 status.
0-3 Output status.
The H2-CTRIO2 features 4 points, independently isolated, current sourcing or sinking field-effect transistors (FET) outputs. The voltage range is 5 VDC-36 VDC and the maximum voltage is 36 VDC. The maximum load current is 1.0 A at 23℃, 0.5 A at 60℃ per point. The pulse output control range is 20 Hz to 250 Hz.
The operating environment of the H2-CTRIO2 High Speed Counter Interface is 32℉ to 140℉ (0℃°C to 60℃) and humidity (non-condensing) is 5% to 95%. The H2-CTRIO2 provides 1500 V I/O-to-logic isolation, 1000 V among input channels and all outputs.
The CTRIO Workbench tool is used to configure the H2-CTRIO2. You must perform the configuration with the PLC in RUN mode. Use the H2-CTRIO Workbench to assign the input and output points, map the CPU to memory, and configure other functions Be sure to configure the H2-CTRIO in program mode. Also, be sure to map the memory before starting the program.
