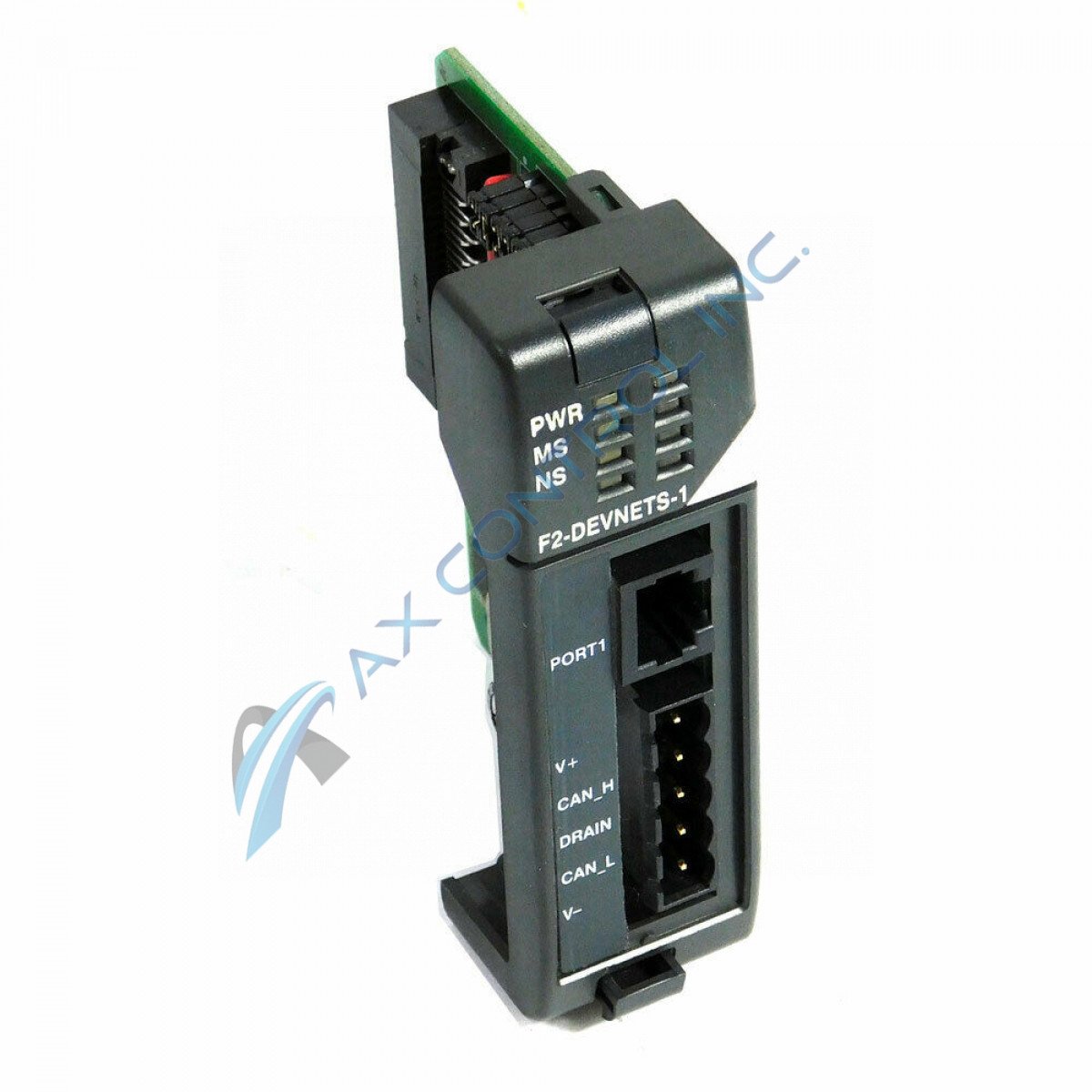

F2-DEVNETS-1 DeviceNet Base Controller

F2-DEVNETS-1

  • {{ avg.toFixed(1) + ' (' + ratingCount + ')' }}
  • {{ message }}
F2-DEVNETS-1 DeviceNet Base Controller

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a F2-DEVNETS-1 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

PWR Solid green when power is ON.

MS (Mode Status). The MS LED indicates 3 conditions.

  • Flashing red and green when LED test during module startup.

  • Green when allocated to a master device.

  • Red when a module error has occurred.

NS (Network Status) The NS LED indicates 5 conditions.

  • Flashing red and green when LED test during module startup.

  • Flashing green when indicates online and ready to accept commands from the master.

  • Solid green when under control of a master device.

  • Flashing red when a communications error has occurred.

  • Solid red when no bus power or a unrecoverable communications fault.

Use the RS-232 serial port on the front of the module to update the firmware, as needed. A RJ-12 6-pin is the connector. Use the serial port to connect the module to a laptop, desktop, or other device to update the firmware. The baud rate is 9600 and 19200 bps.

The F2-DEVNETS-1 DeviceNet Base Controller Module contains 8 jumpers to set the baud rates and the node address.You might need to configure the device before you use it. 7 steps are necessary to configure the device.

  1. Set the controller node address.

  2. Add the EDS file.

  3. Add the module to the scan list in your DeviceNet Master software.

  4. Set the input/output Bytes.

  5. Map the I/O to the master.

  6. Scan to verify the configuration and check for errors.

  7. View Indicators on the controller.
