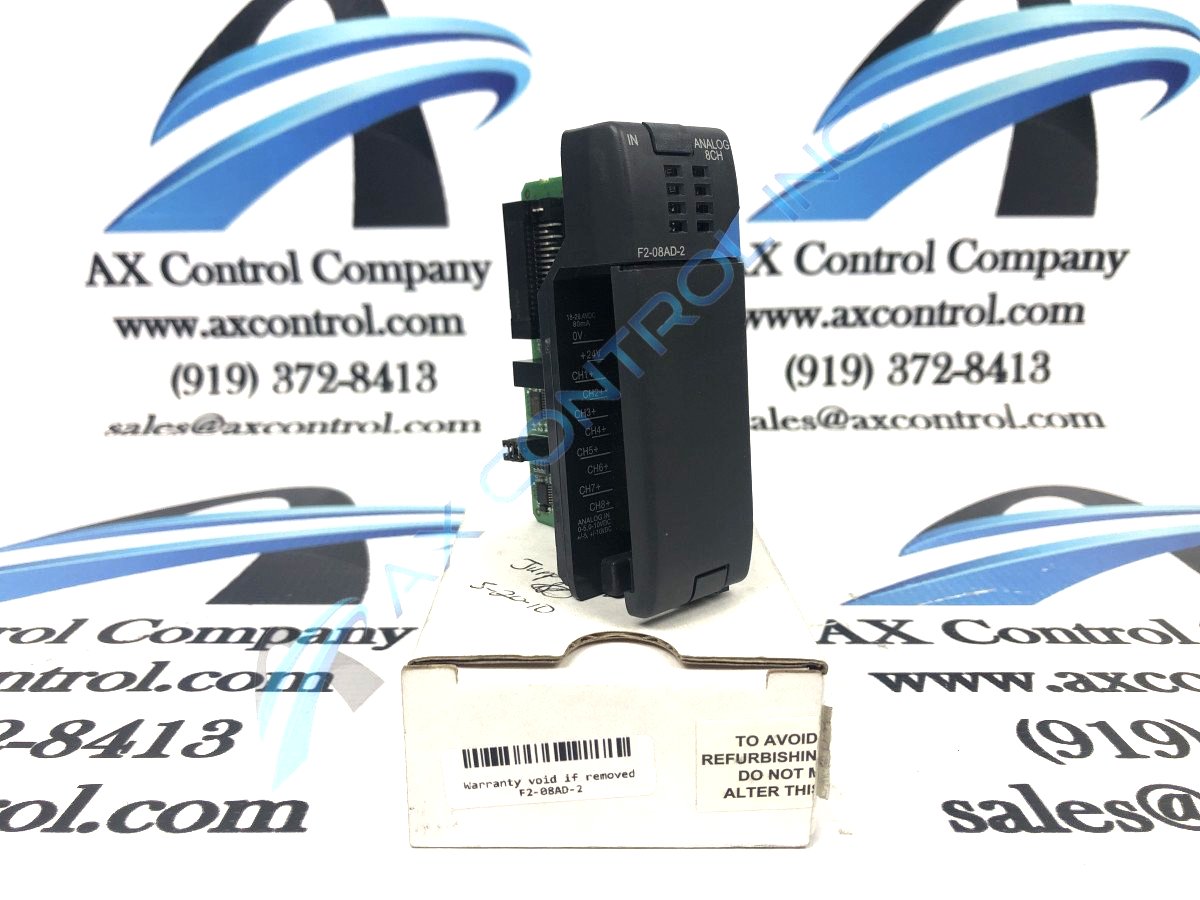

F2-08AD-2, 8-Channel Analog Voltage Input Module

F2-08AD-2

  • {{ avg.toFixed(1) + ' (' + ratingCount + ')' }}
  • {{ message }}
F2-08AD-2, 8-Channel Analog Voltage Input Module

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a F2-08AD-2 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

The F2-08AD-2, 8-Channel Analog Voltage Input Module contains features designed to improve reliability, usability, and flexibility.

  • The analog inputs are optically isolated from the PLC logic.

  • For improved usability and portability, the terminal block is easily removable to ensure the F2-08AD-2, 8-Channel Analog Voltage Input Module is easily removable without disconnecting wiring.

  • If a DL240, DL250-1 or a DL260 CPU is used all channels can be updated in one scan.

The F2-08AD-2, 8-Channel Analog Voltage Input Module is a 8-Channel analog input voltage module. The input range is 0-5 VDC and 0-10 VDC. The number of channels is 8, single ended (one common). The resolution is 12 bit (1 in 4096) unipolar (0-4095) 13 bit (1 in 8192) bipolar (- 4095 -+4095). The power budget requirement is 100mA (* 60mA) maximum, 5VDC (supplied by base). The environmental air requirement is no corrosive gases permitted.  The operating temperature 0-60°C (32-140°F). The relative humidity 5–95% (non-condensing).

The PLC update rate is 1 channel per scan maximum (DL230 CPU) 8 channels per scan maximum (DL240/250 – 1/260 CPU). The input points requirement is 12 binary data bits, 1 sign bit 3 channel ID bits, 1 diagnostic bit 16 point (X) input module.

The F2-08AD-2 can be installed in any slot in a DL205. Considerations are the available power budget and the discrete I/O points. The analog input module appears as a 16-point discrete input module in configuration.

The F2-08AD-2 has some firmware requirements.

  • Version 1.6 or later is required if you plan to use a DL230 CPU.

  • Version 2.2 or later is required if you plan to use the pointer method for writing values and if you plan to use a DL240 CPU.
