  • Part Number: D2-32TD1
  • SKU: D232TD1AD
  • Manufacturer: Automation Direct
  • Series: DirectLogic 205

About the D2-32TD1

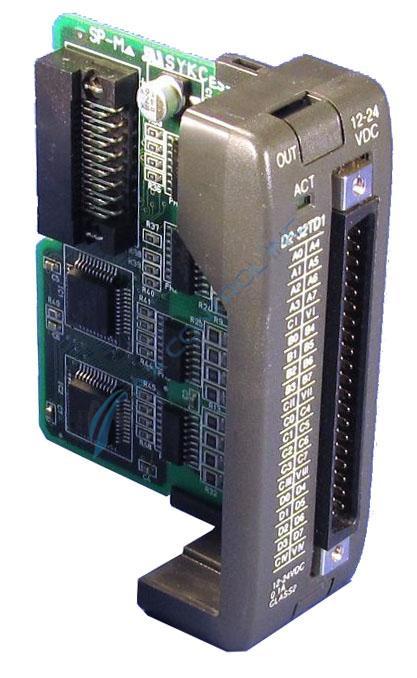

The Automation Direct Facts Engineering D2-32TD1 is a DC output module. A member of the DirectLogic 205 series, this module interfaces with the DL205 series of programmable logic controllers. Containing 32 sinking outputs per module, 4 isolated commons each support 8 output terminal points. Outputs from the module are delivered in NPN open collector type. An external DC power source is needed with power supply demands ranging from 20-28 VDC, or 120 mA with all points on. Operating voltage for the module ranges from 12 to 24 VDC, with peak voltage measuring at 30 VDC.

Monitoring the input/output voltages and currents of D2-32TD1 helps to prevent the system from overloading. The maximum load current required per point is 0.1A, with the minimum load current reading 0.2 mA. A maximum base power of 350 mA is required to power the device. A 40-pin connector and an LED module activity status indicator completes the front plate of the module.

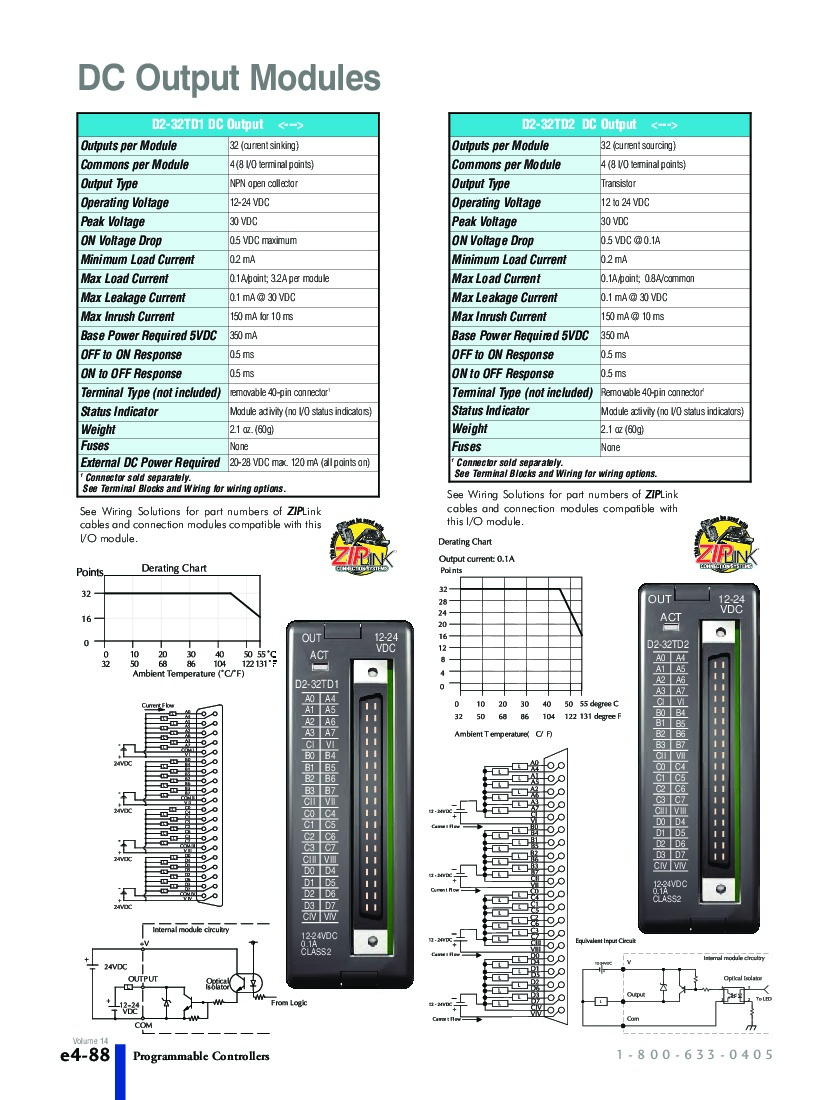

Following all installation and storage parameters will ensure the longevity of D2-32TD1. Installation and removal procedures are simple and easy to follow, with terminal block removal not interfering with the wiring of the controller. Wiring and derating charts can be found in the device manual and datasheet. Technical support for this series of module was provided by the manufacturers, Automation Direct and Koyo. Refer to the device manual and datasheet for all safety and installation guidelines.

AX Control is happy to help with you D2-32TD1 needs. Please contact our office by phone or email for pricing on parts or repairs.
