D2-09BDC2-1

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product

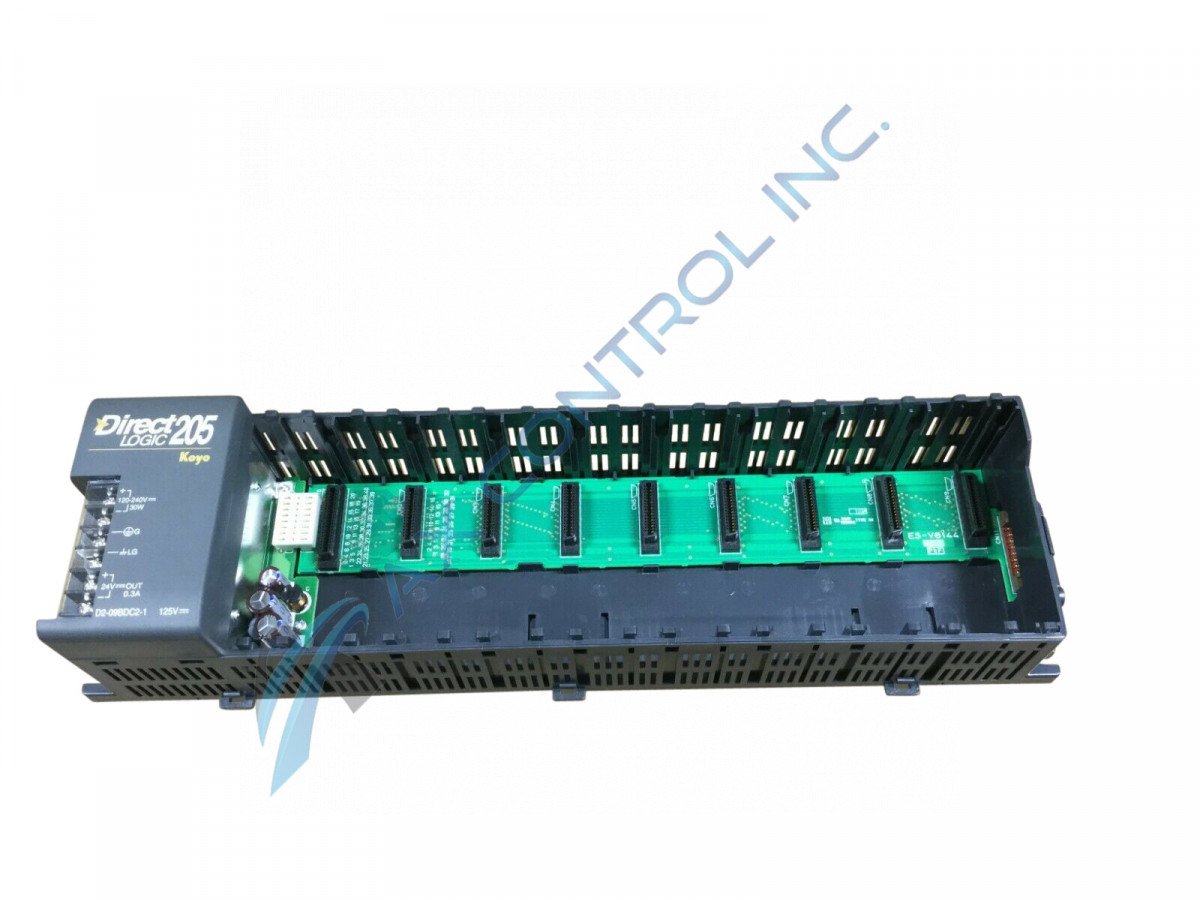

DL205 9 Slot DC Base with RS-232C Port

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a D2-09BDC2-1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: D2-09BDC2-1
  • SKU: D209BDC21AD
  • Manufacturer: Automation Direct
  • Series: DirectLogic 205

About the D2-09BDC2-1

This DL205 9 Slot DC Base is an creation made under Automation Direct with help from Koyo and PLC Direct. The base's purpose is to be a safe, orderly device that modules can connect through. One of these slots is the CPU slot. The base can resist noise pollution thanks to the built-in NEMA structure. The base and the modules that can attach to it have indicator lights to warn the user of problems. The drive has the dimensions 14.09 x 3.54 x 2.95 with the weight of 531g. For safe storage, The device should stay in a room that is between -20 and 70 degrees Celsius. The ambient temperature that the device must stay in is between 0 and 55 degrees Celsius. The device is also mountable and is free to be placed anywhere. For communication between devices on the network, there is a RS-232C port on the modules that plug in. The base is compatible with H2-DM1 and H2-DM1E Do-More CPUs. All the devices in the DL205 family have up to 1536 possible expandable I/O points.

The DL205 9 Slot DC Base runs on a DC power supply. The base's input voltage range volleys between 104 and 240 VDC. The DL205 9 Slot DC Base has an auxiliary 24 VDC output band has a running voltage that spans from 20 to 28 VDC. There is a 25W maximum on the electric power consumption that the device can manage. The inrush current should not exceed 20 amps at any given time. The input power type of the device is 125 VDC.

The module is listed as D2-09BDC2-1 and the D2–USER–M Manual assists the user in making the machine function properly. Call us now to get pricing quotes and information about our warranties.

Repair Services For D2-09BDC2-1

Type Lead Time Price Action
Repair Service 1-2 weeks $254

Our highly skilled technicians can repair your D2-09BDC2-1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

D2-09BDC2-1 Manuals, White Papers, Data Sheets, and Troubleshooting
