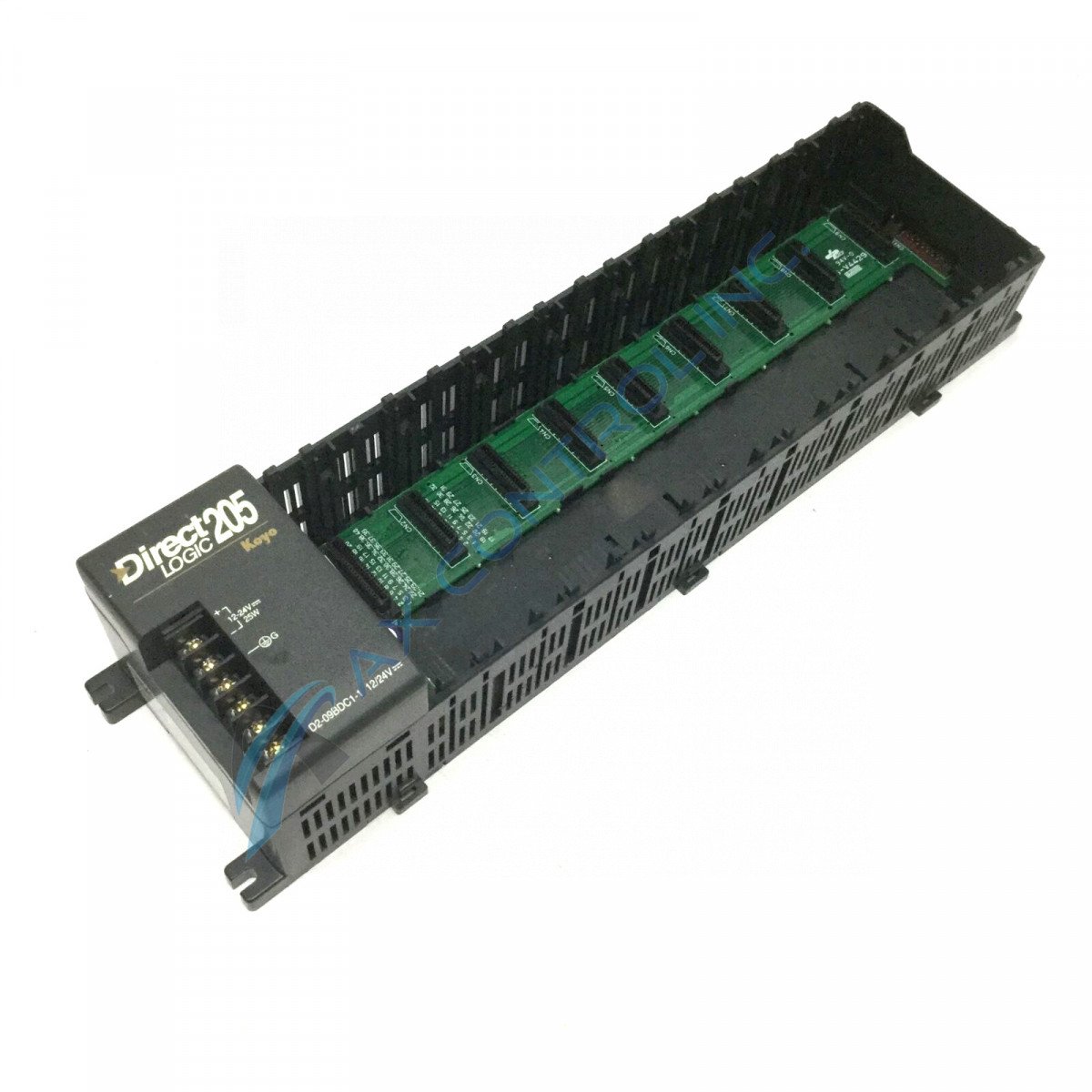

The D2-09BDC1-1 unit is a power supply base; it was manufactured by Automation Direct to be used with the DirectLogic 205 or Do-More systems. It will supply an input power of 24 VDC. It can be used with analog I/O modules.



Sell Surplus: Have a D2-09BDC1-1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: D2-09BDC1-1
  • SKU: D209BDC11AD
  • Manufacturer: Automation Direct
  • Series: DirectLogic 205

D2-09BDC1-1 Technical Specifications

Base Unit Identification Number D2-09BDC1-1
Series DirectLogic 205
Manufacturer Automation Direct
Unit Type I/O Base Unit
Number of Module Slots Nine
Dimensions 14.09" x 13.74" x 13.14" x 14.56"
Weight 18.3 oz.
Input Power Type 24 VDC
Dielectric Voltage Withstand 1 Minute at 1500 VAC
Auxiliary 24 VDC Output None
Max Inrush Current 10 A

Product Description

Manufactured by Automation Direct in collaboration with Koyo, the D2-09BDC1-1 unit is one of the many I/O power bases part of the DirectLogic 205 (DL205) series. This model is a 24 VDC power supply base. The number of slots on this model is nine. The first slot on this base is a CPU slot, with the eight remaining slots being used with I/O units. When wiring the unit, the first two screw terminals are used for the 12-24 VDC wiring, with the third terminal screw being the grounded terminal. Please make sure that after the power wiring has been connected, a plastic protective cover is installed to ensure that the risk of electrical shock is lowered.

The D2-09BDC1-1 base can be used with several DL205 modules; more specifically, the D2-09BDC1-1 is likely used with analog I/O modules in the DL205 series. As previously mentioned, the D2-09BDC1-1 module has nine slots. If a base with fewer slots is preferred, then use any of the power based with BDC1-1 within the part number as it indicates that it is a 24 VDC power base.

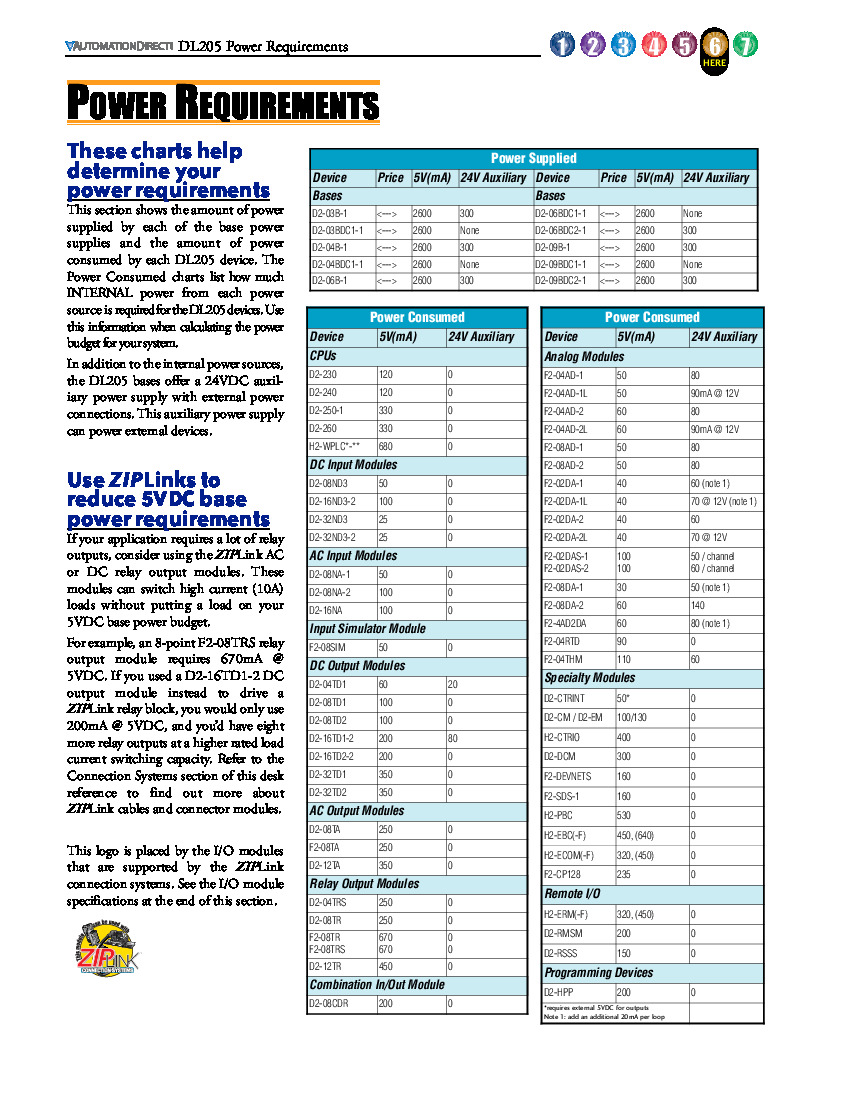

There are technical specifications on the D2-09BDC1-1 module, which help ensure that the module will operate at its intended function. The module has an inrush current of 10 A, which is the maximum current. It also has a maximum power supply of 25 W. The input voltage range for this unit is 10.2-28.8 VDC, and the nominal is 24 VDC, with less than ten percent ripple. For more information regarding the technical specifications, refer to the attached Do-more H2 PLCs Data Sheet.

Frequently Asked Questions about D2-09BDC1-1

What is the D2-09BDC1-1? What is it used for?

The D2-09BDC1-1 module is a power supply base. It is used to supply a power voltage of 24 VDC to CPU modules or I/O modules in the DirectLogic 205 or H2 series.

If I use the D2-09BDC1-1 module with different I/O units, how would I identify them?

If using the D2-09BDC1-1 with a variety of I/O's, they can be color-coded to help the user easily identify them. The modules will be color-coded as follows, discrete/analog input blue, discrete analog output red, and other modules white.

Reviews For D2-09BDC1-1

Internal Review

One of the best features of the D2-09BDC1-1 module is that when used in the Do-more H2 series, is that there are very few restrictions regarding the I/O modules placements. A mix of analog and discrete modules can be used in the local or Ethernet remote bases. - AX Control Tech

Repair Services For D2-09BDC1-1

Type Lead Time Price Action
Repair Service 1-2 weeks $251

Our highly skilled technicians can repair your D2-09BDC1-1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
