F1-130DR

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures 4.60 (10) Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (10)
  • Click a star to rate this product

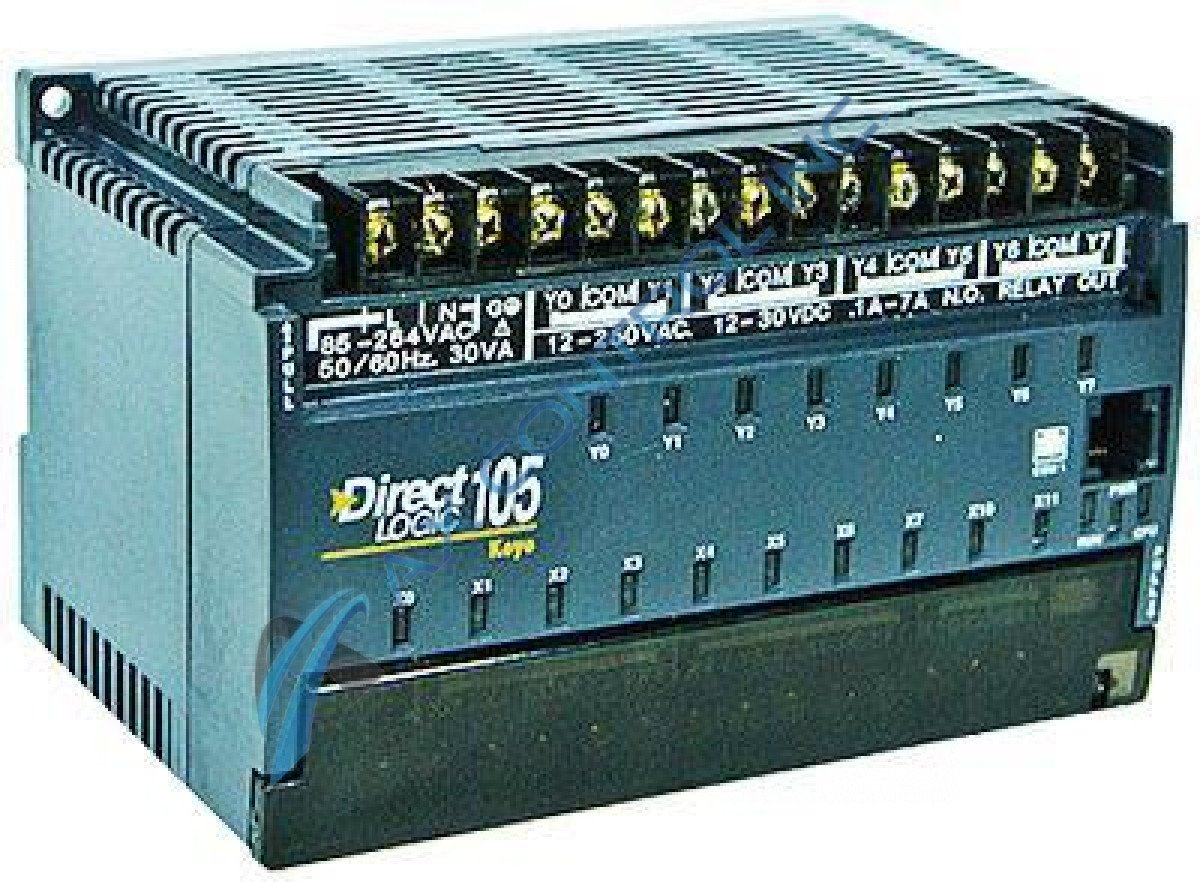

The F1-130DR is a Programmable Logic Controller with 10 inputs and 8 inputs that was manufactured by Facts Engineering

New Surplus Factory Package
$875
SKU: 8DI1
3 Year Warranty:
Order Before 3PM EST
Rush Available
2 in Stock
New Surplus AX Control Package
SKU: 8DI2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
SKU: 8DI3
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Repair
$218
SKU: 8DI4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

  Shipping Weight: 10.0 lbs.

  Shipping Dimensions: 16" x 16" x 16"

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the F1-130DR

The F1-130DR was developed through the collaboration of Koyo, PLC Direct, and Facts Engineering. The F1-130DR is a Programmable Logic Controller that can be used with a variety of industrial machines. The F1-130DR has some specifications to keep in mind. Some of these specifications can be found below.

Environmental & Physical Specifications
  • Dimensions: 5.12 x 3.16 x 3.63 inches.
  • Ambient Temperature Range: -20º to 70º Celsius.
  • Diagnostics: Identifies and debugs problems within the system.
  • Noise Immunity: Features a protective NEMA casing to guard against noise pollution.
Programming & Memory
  • Memory Structure: Ladder memory structure allows for individual manipulation of data.
  • Retentive Memory Space: 2.4K.
  • Programming Software: Runs functions through DirectSOFT programming software.
  • Communication Port: RS-232-C port, transfers data at 9600 baud.
  • Features: Forced I/O, timer/event drum sequencing, and RLL (Relay Ladder Logic) diagram-style programming.
Input/Output (I/O) Specifications
  • Inputs: 10 DC Inputs.
  • Outputs: 8 Relay Outputs.
  • Isolated Commons:
    • 3 isolated input commons.
    • 4 isolated output commons.
  • Inrush Current: 12 amps.
  • Maximum Running Current: 1.7 amps.
  • Input Voltage Range: 94-240 VAC.
  • Output Voltage Range: 100-240 VDC.

F1-130DR Manuals, White Papers, Data Sheets, and Troubleshooting

F1-130DR Technical Specifications

Part Number F1-130DR
Product Type PLC
Manufacturer Automation Direct
Series DirectLogic 105
Country of Manufacturer United States
Discrete Input Type DC
Discrete Output Type Relay
Software DirectSOFT
Voltage Range (VAC) 94-240 VAC
Voltage Range (VDC) 100-240 VDC

Frequently Asked Questions about F1-130DR

What devices can be used for programming the F1-130DR?

The F1-130DR can be programmed using DirectSOFT through a PC or by using the handheld programmer.

Does the F1-130DR have fuses for its outputs?

No, the outputs do not have fuses. It is recommended to fuse each channel or each common.

Reviews For F1-130DR

Internal Review
(4.0)

This module offers a 2.4K retentive memory with a ladder structure for precise data manipulation, programmed efficiently via DirectSOFT software. It supports critical functions such as forced I/O, timer/event drum sequencing, and RLL diagram-style programming. Connectivity is provided through an RS-232-C port (9600 baud), while its I/O capabilities are enhanced by three isolated input commons and four isolated output commons. Electrically, it handles an input voltage range of 94-240 VAC and an output voltage range of 100-240 VDC, with a 12 amp inrush current and 1.7 amp maximum running current. The included D1-USER-M Manual ensures proper setup and operation, making this a reliable choice for automation tasks requiring a balanced set of digital and relay outputs. – AX Control Lead Technician
