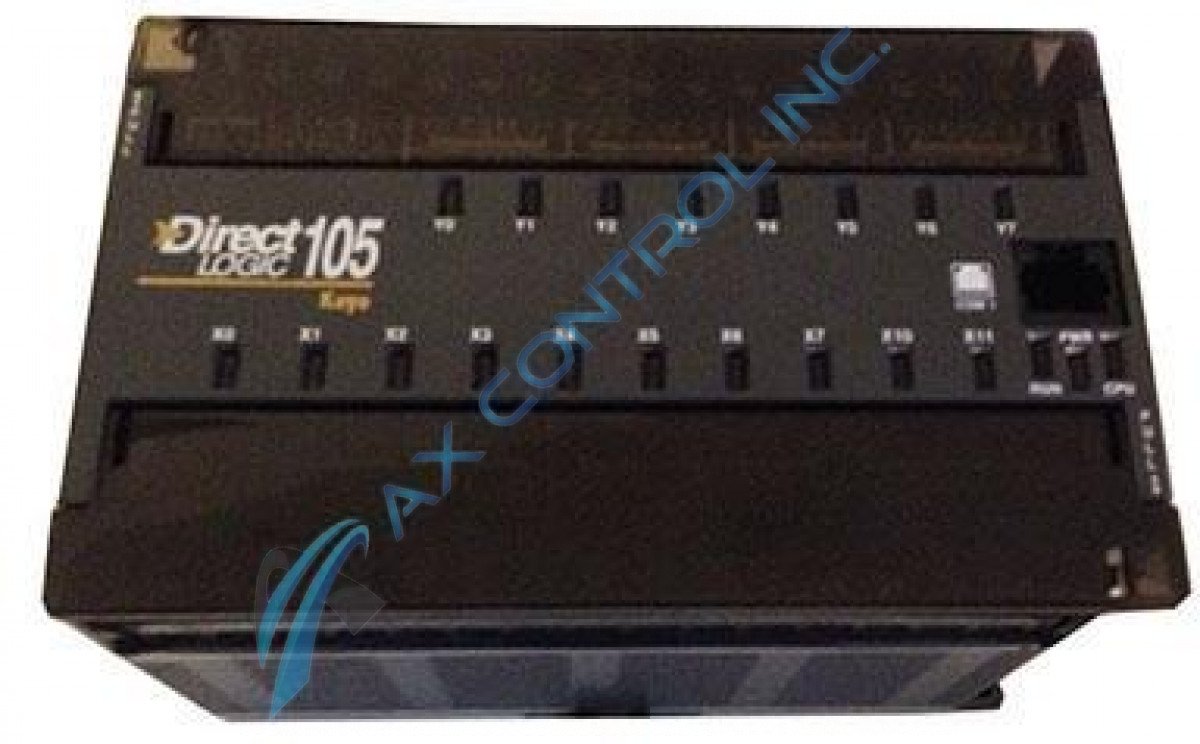

The F1-130DA is a Programmable Logic Controller with 10 DC inputs and 8 AC outputs that was manufactured by Facts Engineering

New Surplus Factory Package
SKU: 5DI1
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

New Surplus AX Control Package
SKU: 5DI2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
$965
SKU: 5DI3
3 Year Warranty:
Order Before 3PM EST
Rush Available
4 in Stock
Repair
$218
SKU: 5DI4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

  Shipping Weight: 8.0 lbs.

  Shipping Dimensions: 18" x 12" x 12"

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the F1-130DA

The F1-130DA is part of Automation Direct's DL105 module family. It is a collaborative product of Koyo, PLC Direct, and Facts Engineering. This module is a Programmable Logic Controller that has 10 Discrete Input Points and 8 Discrete Output Points. The F1-130DA offers many features that are not regularly available on compact modules like this controller. This allows for users to have a smaller module with features that are more common on expensive PLCs. Some of the features of the F1-130DA are listed below.

Environmental & Physical Specifications
  • Ambient Temperature: -20º to 70º Celsius.
  • Noise Immunity: NEMA structure provides protection from outside noise pollution.
  • Dimensions: 5.12 x 3.16 x 3.63 inches (compact system).
  • Mounting: Mountable for convenient placement within a workspace.
Programming & Memory
  • Retentive Memory Limit: 2.4K.
  • Memory Structure: Ladder structure allows individual manipulation of data.
  • Programming Software: Uses DirectSOFT.
  • Features: Forced I/O, timer/event drum sequencer, and RLL (Relay Ladder Logic) diagram-style programming.
Input/Output (I/O) Specifications
  • Inputs: 10 DC Inputs.
  • Outputs: 8 AC Outputs.
  • Isolated Commons:
    • 3 isolated input commons.
    • 4 isolated output commons.
  • Nominal Input Voltage: 12 to 24 VDC.
  • Output Voltage Range: 120 to 240 VAC.
  • Maximum Current: 1.7 amps.
Documentation & Support
  • Manual: Uses the D1-USER-M Manual to help users understand machine functions.

F1-130DA Manuals, White Papers, Data Sheets, and Troubleshooting

F1-130DA Technical Specifications

Part Number F1-130DA
Module Type PLC
Manufacturer Automation Direct
Series DirectLogic 105
Inputs 8 AC, 10 DC
Shipping Weight 8 lb
Country of Origin USA
Number of Common Inputs 3 Isolated
Number of Common Outputs 4 Isolated
Output Circuitry Triac

Frequently Asked Questions about F1-130DA

Does the F1-130DA have a communications port?

Yes, the F1-130DA comes standard with an RS-232C communications port.

Does the F1-130DA have high speed inputs?

Yes, because this module has DC inputs, this enables the F1-130DA to have high speed inputs. These high speed inputs are selectable and can be found on four input points.

Reviews For F1-130DA

Internal Review
(5.0)

This module offers a 2.4K retentive memory limit with a ladder structure for individual data manipulation, programmable using DirectSOFT software. It supports forced I/O, a timer/event drum sequencer, and RLL diagram-style programming. With 10 DC inputs (12-24 VDC nominal) and 8 AC outputs (120-240 VAC range), along with multiple isolated commons, it provides comprehensive I/O capabilities. Its maximum current of 1.7 amps and compact dimensions ensure efficient integration into control systems. The accompanying D1-USER-M Manual provides essential guidance for user. – AX Control Lead Technician
