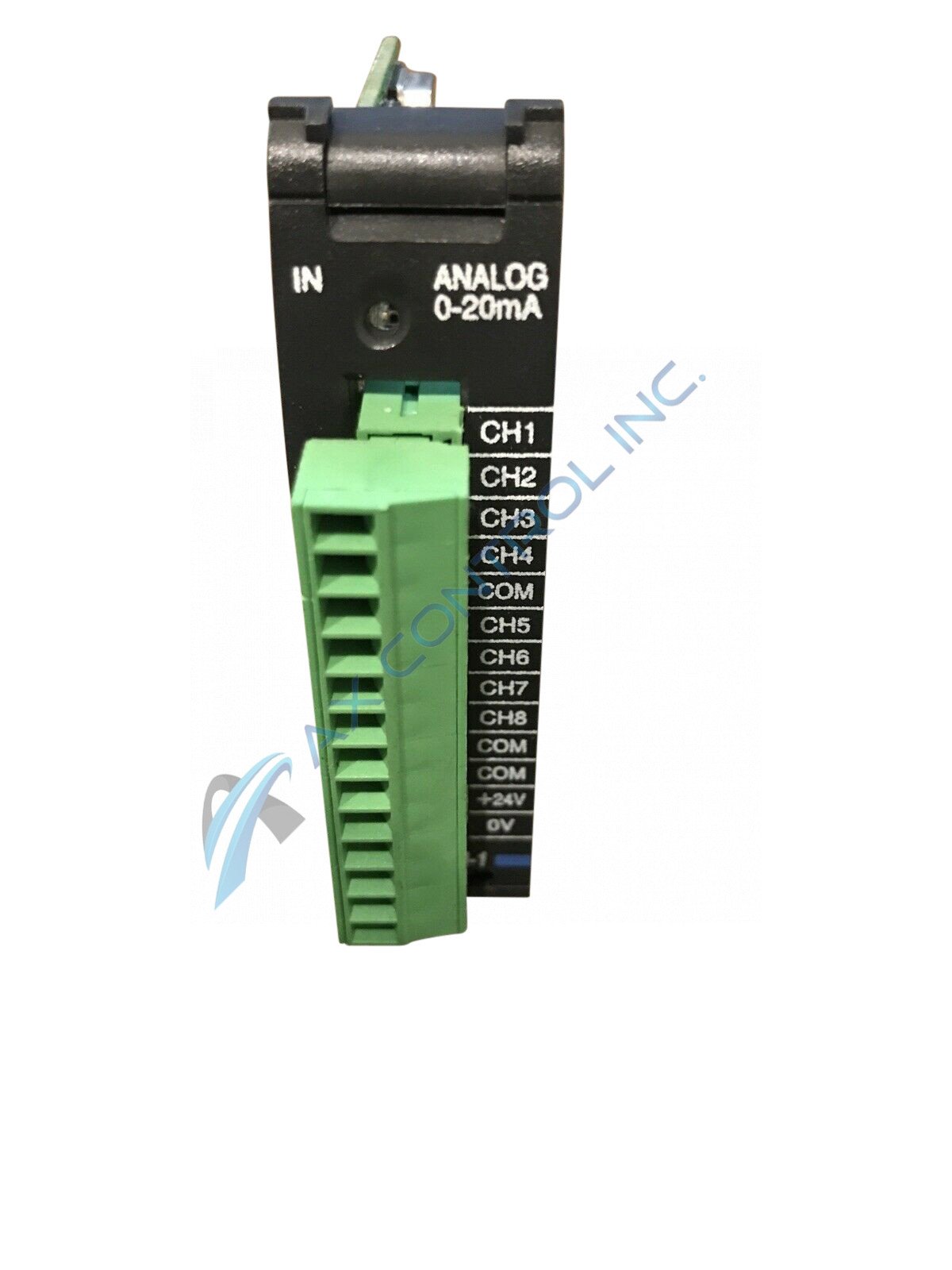

The F0-08ADH-1 is an 8-Channel Analog Input module with a range of 0-20 mA that was manufactured by Facts Engineering

New Surplus Factory Package
$685
SKU: 17DI1
3 Year Warranty:
Order Before 3PM EST
Rush Available
1 in Stock
New Surplus AX Control Package
SKU: 17DI2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
$395
SKU: 17DI3
3 Year Warranty:
Order Before 3PM EST
Rush Available
2 in Stock
Repair
$127
SKU: 17DI4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

  Shipping Weight: 2.0 lbs.

  Shipping Dimensions: 8" x 8" x 8"

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the F0-08ADH-1

The Automation Direct F0-08ADH-1 is an analog current input module. Developed for the DirectLogic 05 and DirectLogic 06 series, this eight-channel module is compatible with both series' programmable logic controllers. This unit converts incoming analog signals into 16-bit digital signals compatible with the controller. The internal CPU of the PLC reads each of the eight channels in a single scan. Module installation is simple, with terminal blocks easily removable without rewiring the controller.

There are some wiring guidelines to follow for the F0-08ADH-1. Some of these guidelines are:

  • Use the shortest wiring route
  • Avoid running the signal wire next to heavy machinery
  • Use shielded wiring

A 16-bit resolution ensures that the data conversions F0-08ADH-1 make are accurate and precise. Active analog filtering combined with an integrated microprocessor further ensures precise conversion accuracy. As the module interacts with microprocessors, specific software requirements must be met. When installed in a DL05 controller, DirectSOFT32 version 3.0c or later and firmware version 5.20 or later are needed to operate. If installed in a DL06 PLC, DirectSOFT32 version 4.0, build 16 or later, and firmware version 2.30 or later are required to run.

Automation Direct provided original technical support for the F0-08ADH-1. Refer to the corresponding user manual and device datasheet for all wiring and installation guidelines.

F0-08ADH-1 Technical Specifications

Model Number F0-08ADH-1
Series DirectLogic 06 (DL06)
Manufacturer Automation Direct
Model Type 8-Channel Analog Current Input
Input Range 0-20 mA
All Channel Update Rate 81.6 ms
Base Power Requirement at 5.0 V 25 mA
Filter Characteristics Low Pass, -3dB at 60 Hz
External Fuse Recommendation Littlefuse Series 217, 0.032 A fuse
Input Resolution 16-bit

Frequently Asked Questions about F0-08ADH-1

What is the F0-08ADH-1? What are some of its features?

The F0-08ADH-1 unit is an 8-Channel Analog Current Input produced by Automation Direct. Some of the module's features are the DL05 and DL06 series' ability to read all eight channels in a single scan, being isolated from the PLC power supply logic side, a removable terminal block helping ease the replacement of the module, the ability to process variable for the four and eight PID loops in the respective DL05 and DL06 CPUs, and an active onboard analog filter and RISC-like microcontroller providing digital signal processors to maintain accurate analog measurements even when used in loud environments.

The F0-08ADH-1 module has V-memory locations; what do the V-memory locations allow you to do?

The V-memory locations on the DL05 and DL06 base units allow the F0-08ADH-1 to specify the V-memory locations to specify locations for input data, specify the data format, and specify the number of channels to be scanned.
