Home Automation Direct DirectLogic 06 D0-06DR-D
In Stock

Image Coming Soon

3 year warranty
visa card logo american express logo master card logo bbb logo duns seal

About | Product Specifications | FAQs

International

Phone

1-919-372-8413

Domestic (US)

1-800-991-7026

Email

D0-06DR-D

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures 4.82 (11) Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.82 (11)
  • Click a star to rate this product

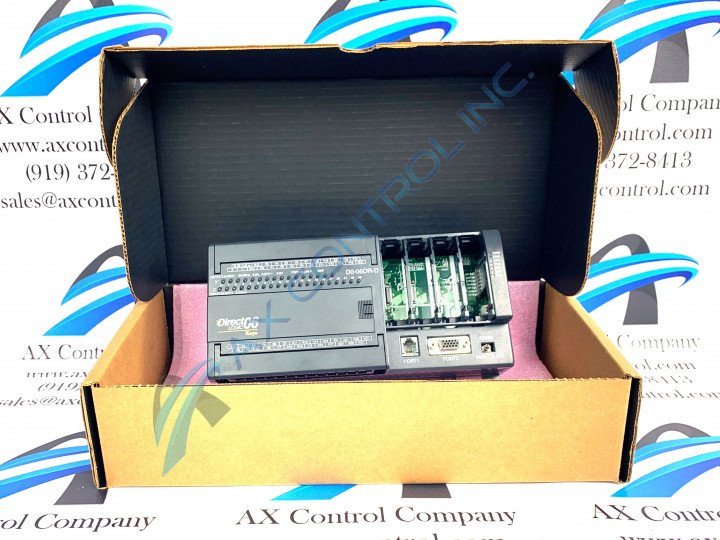

The D0-06DR-D is a 20 DC Input 16 Relay Micro PLC with a DC power supply that was manufactured by Automation Direct

New Surplus Factory Package
SKU: 9DI1
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

New Surplus AX Control Package
SKU: 9DI2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
$600
SKU: 9DI3
3 Year Warranty:
Order Before 3PM EST
Rush Available
6 in Stock
Repair
$104
SKU: 9DI4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

  Shipping Weight: 1.9 lbs.

  Shipping Dimensions: 16" x 16" x 16"

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the D0-06DR-D

The Automation Direct D0-06DR-D is a PLC that comes with two ports for communications and networking. Port 1 is an ​RS–232C​ ​communication​ ​port. Port 2 is an RS-232C/RS-422/RS-485​ ​port​ that supports many devices with a serial port. There are also 20 DC inputs and 16 relay outputs included in the D0-06DR-D.

A switch on the DL06 device enables you to access the operating modes. These modes can also be accessed by using programming software. The D0-06DR-D can use DirectSOFT or a handheld programmer.

There are some specifications to know about the D0-06DR-D before use. Some of these are:

  • External power is only between 12 through 24 VDC, 20 Watts or less

  • Input voltage: Rated as limited from 10.8 through 26.4 VDC (standard and high-speed)

  • The operating voltage range is 12-24 VDC (standard/high-speed)

  • 5 banks with 4 inputs in each bank (20 inputs)

  • One common terminal for each bank (sinking inputs or sourcing inputs)

  • Relay range for output voltage: from 5 to 264 VAC (47-63 Hz)

  • Voltage range during operation from 6 to 240 VAC (47-63 Hz) and 6-27 VDC

  • 4 banks with four outputs are available. The relays are generally open.

  • Every bank has one terminal

  • ​To use programming​ ​software, such​ ​as​ ​​DirectSOFT​ ​5 use Port 1 or Port 2 to connect to a laptop

  • Port​ ​1​ ​on​ ​the​ ​D0-06DR-D​ ​is​ ​a​ ​6-pin​ ​modular​ ​connector

  • ​Port​ ​2​ ​is​ ​a​ ​15-pin​ ​HD-sub connector​

The DL06 Micro PLC D0-06DR-D offers data storage in V-memory in 16-bit registers and advanced internal diagnostics.

D0-06DR-D Manuals, White Papers, Data Sheets, and Troubleshooting

D0-06DR-D Technical Specifications

Part Number D0-06DR-D
Manufacturer Automation Direct
Series DirectLogic 06
Product Type Programmable Logic Controller
Weight 1.87 lb
External Power Requirement 12-24 VDC
Total Memory 14.8k words
High Speed Capable Input Points 4
Port Speed Up to 38.4k baud
Frequency Response 7 kHz

Frequently Asked Questions about D0-06DR-D

What does it mean if the RUN indicator is blinking?

This means that the CPU is in firmware upgrade mode.

What are some of the I/O connections that the D0-06DR-D can have?

The D0-06DR-D can be configured with option cards for additional I/O capabilities. Some of these are Combination I/O modules and Analog I/O modules.

Reviews For D0-06DR-D

Internal Review
(4.0)

The D0-06DR-D is simple to install on a DIN rail and to mount other PLC cards into as a rack based system. The downside is that the plastic is quite delicate and the terminal covers often break. These covers are easy to replace, but it is helpful to keep spare covers with the PLC. The D0-06DR-D can be used with a variety of industrial applications and devices, which makes this a flexible model. There is an optional LCD display for the D0-06DR-D. - AX Control Lead Technician
