D0-06DA

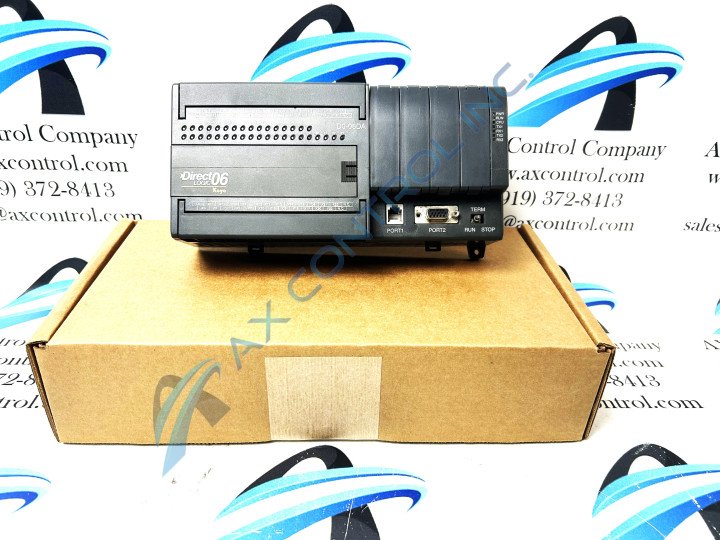

About the D0-06DA

One RS–232C​ ​port​ (Port 1) ​and​ ​one ​RS232C/RS422/RS485​ ​port (Port 2) are contained in the DL06 Micro PLC Model D0-06DA. The RS-232C port is for communications and the  ​RS232C/RS422/RS485 is for multi purpose use.

Port​ ​1​ ​on​ ​the​ ​D0-06DA​ ​is​ ​a​ ​6-pin​ ​modular​ ​connector.​ ​Port​ ​2​ ​is​ ​a​ ​15-pin​ ​HD-sub connector. The D0-06DA is designed with 20 DC inputs and 16 AC outputs.

The D0-06DA contains operating modes that are are useful for programming and are available from a laptop computer or other device or DirectSOFT 5 software.

The external voltage is 100-240 VAC/50-60 Hz, 40 VA, or lower voltage. Other requirements are described in the following list.

• Input voltage is 10.8 through 26.4 VDC (standard/high-speed inputs).

• Operating voltage requirement 12 through 24 VDC (standard/high-speed inputs).

• Five banks with 4 inputs are provides. One isolated common terminal for each and can be configured as sinking or sourcing

• 15-264 VAC, 47-63 Hz is the range for output voltage.

• Operating voltage is rated between 17 and 240 VAC, 47-63 Hz.

• Outputs are designed to use four banks of four triac switches. Each bank has a common terminal.

The DL06 Micro PLC D0-06DA provides V-memory in registers that are 16-bit in length and also diagnostics.
