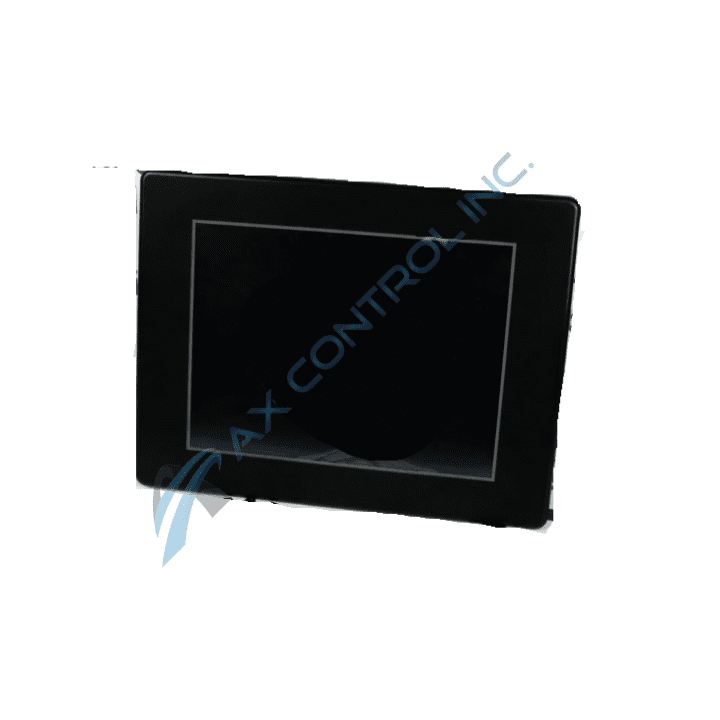

About the EA9-T15CL
The EA9-T15CL 15" XGA Touchscreen HMI here is actually a Human Machine Interface originally made for a more recent legacy series in Automation Direct's C-More EA9 product series. This EA9-T15CL 15" XGA Touchscreen HMI is something of a modern product, as its assembly offers an HDMI out component for the transmission of video. Some of the other identifying hardware relevant to this EA9-T15CL 15" XGA Touchscreen HMI are its:
- 15in color TFT LCD
- 1024 x 768 pixels
- XGA
- Backlight
- Three serial ports
- One Ethernet port
- Two USB ports
- Two memory card slots
It should be noted that this EA9-T15CL HMI's three serial ports is quite the high number, as other similar C-More EA9 Series offerings only offer a singular port for serial connections. This EA9-T15CL would ship with a guaranteed warranty after purchase.
EA9-T15CL Ports and Connectors
As alluded to above, this specific EA9-T15CL C-More EA9 Series HMI comes equipped with a specially-selected group of ports that all work together in creating a usuable product. This EA9-T15CL's ports specifically include:
- an RS-422/485 primary serial port
- an RS-485 3-wire secondary terminal block
- an RS-232C RJ-12 tertiary modular jack
