EA7-T15C

About the EA7-T15C

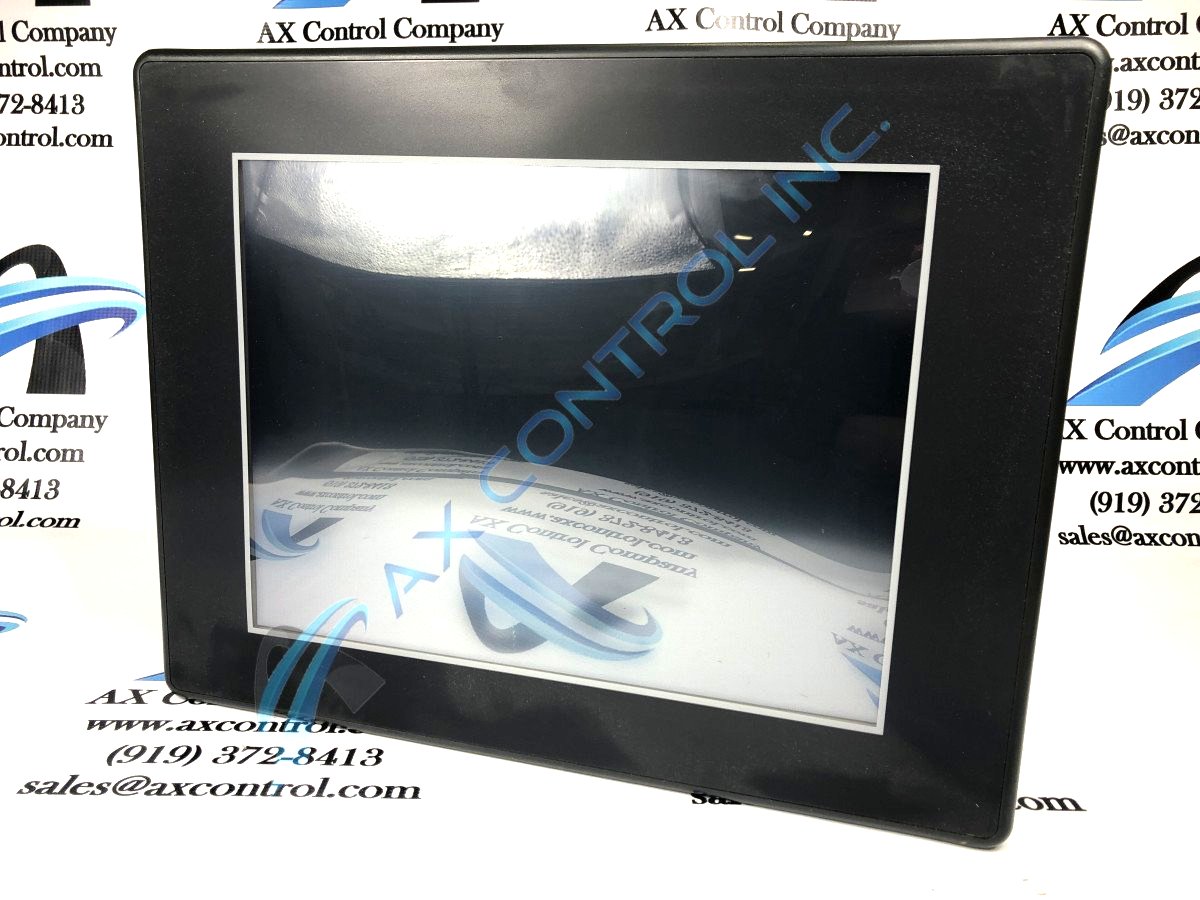

• The EA7-T15C is a 15-inch Human Machine Interface (HMI) touch panel display.
• It is a member of the C-more EA7 series.

Display & Internal Specifications

• Touch Panel: Dynamic 10-bit 1024x768 pixel analog resistive touch panel.
• Display Type: Full-color TFT LCD, supporting 65,536 bright colors.
• CPU: Integrated 32-Bit RISC CPU.
• Memory:
  • 64 MB of SDRAM.
  • 64 MB of FLASH memory.
• Data Transfer: Quick memory and data transfers when connected to a LAN or USB.

Power Requirements

• Requires 24VDC.
• Can be drawn from a 100-240VAC 50/60Hz source using an AC/DC power adapter.

Integrated I/O Ports & Connectivity

• USB Ports: Two (for device input, programming data, and information transfers).
• Serial PLC Interface Port: One.
• Ethernet Port: One 10-100 Base-T port for LAN and inter-device communication.
• Audio: One audio line out port (for connecting to an amplifier and speaker for status/error messages).
• Optional Storage: CompactFlash port for expanded file storage.

Physical Dimensions

• Dimensions (H x W x D): 13.00in x 16.748in x 1.0481in.
• Weight: 7.01 pounds.
• Size: Largest of the EA7 series.

Software & Features

• PLC Tag Import: Click PLC tags can typically be imported.
• Computer Mirroring: Supports remote viewing and interaction (visible and background screens).
• Visual Monitoring: Supports visual monitoring and configuration of various PLC programmers and devices.
• Multi-language Support: English, Spanish, Thai, Japanese, Chinese, Korean, and Taiwanese.

Environmental Parameters & Support

• Storage Temperatures: -4℉ to 140℉ (-20℃ to 60℃).
• Operating Ambient Temperatures: 32 to 122℉ (0℃ to 50℃).
• Technical Support: Originally provided through Automation Direct.
• Documentation: User manuals and datasheets provide guidelines for safety and installation.
• AX Control: Available for repairs and pricing on in-stock models.
