Woodward Part 8440-1706 SPM-D11/LSXR features 12/24 VDC power supply and discrete inputs, 2phase generator and 2phase busbar voltage display/measuring and 1phase generator current. Measuring inputs 100 VAC, ../5 A

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 8440-1706 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8440-1706

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
Woodward Part 8440-1706 SPM-D11/LSXR features 12/24 VDC power supply and discrete inputs, 2phase generator and 2phase busbar voltage display/measuring and 1phase generator current. Measuring inputs 100 VAC, ../5 A

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 8440-1706 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

This unit is one Woodward Inc.’s synchronizer modules; available from us at AX Control Inc. as a either unused surplus or reconditioned hardware. Woodward Inc. is responsible for the development and production of a large-spanning range of industrial generator modules, from speed and loading control to voltage regulator modules. This unit is a part of their SPM-D11 category of synchronizers, and designated under the numerical ID of 8440-1706. The 8440-1706 model is outfitted with the capability to provide units with a combined synchronizing ability for a circuit breaker, power factor and load factor control, and the option for isochronous load sharing and generator protection. The 8440-1706 unit is also built with a choice for operators to implement while the generator voltage matching is occuring; either the phase matching can also occur, or the slip frequency synchronization can be enabled. The mains parallel operating features the 8440-1706 is included with is a wide range of features. There is the real power control, the true RMS power calculation, as well as the soft unload feature, and the power factor control and setpoint by the adjusted parameters. This unit is also outfitted with isolated operation control features and dead bus operation features. The 8440-1706 is designed with the standard dimensions, measuring at 144 millimeters by 72 millimeters by 122 millimeters. It weighs at least 800 grams, or 1.76 lbs. The integrated LCD display has a two-line display, and provides users with information for system diagnostics and alarms.

Repair Services For 8440-1706

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your 8440-1706. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

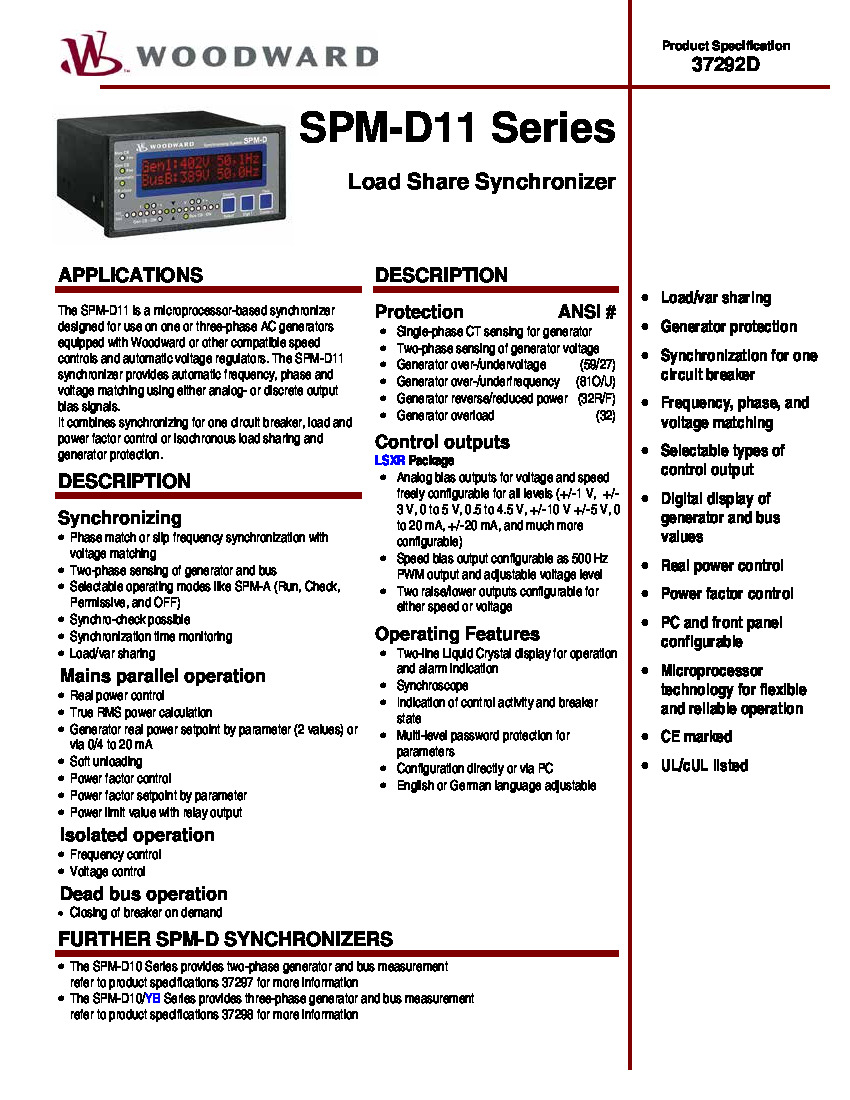

8440-1706 Manuals, White Papers, Data Sheets, and Troubleshooting
