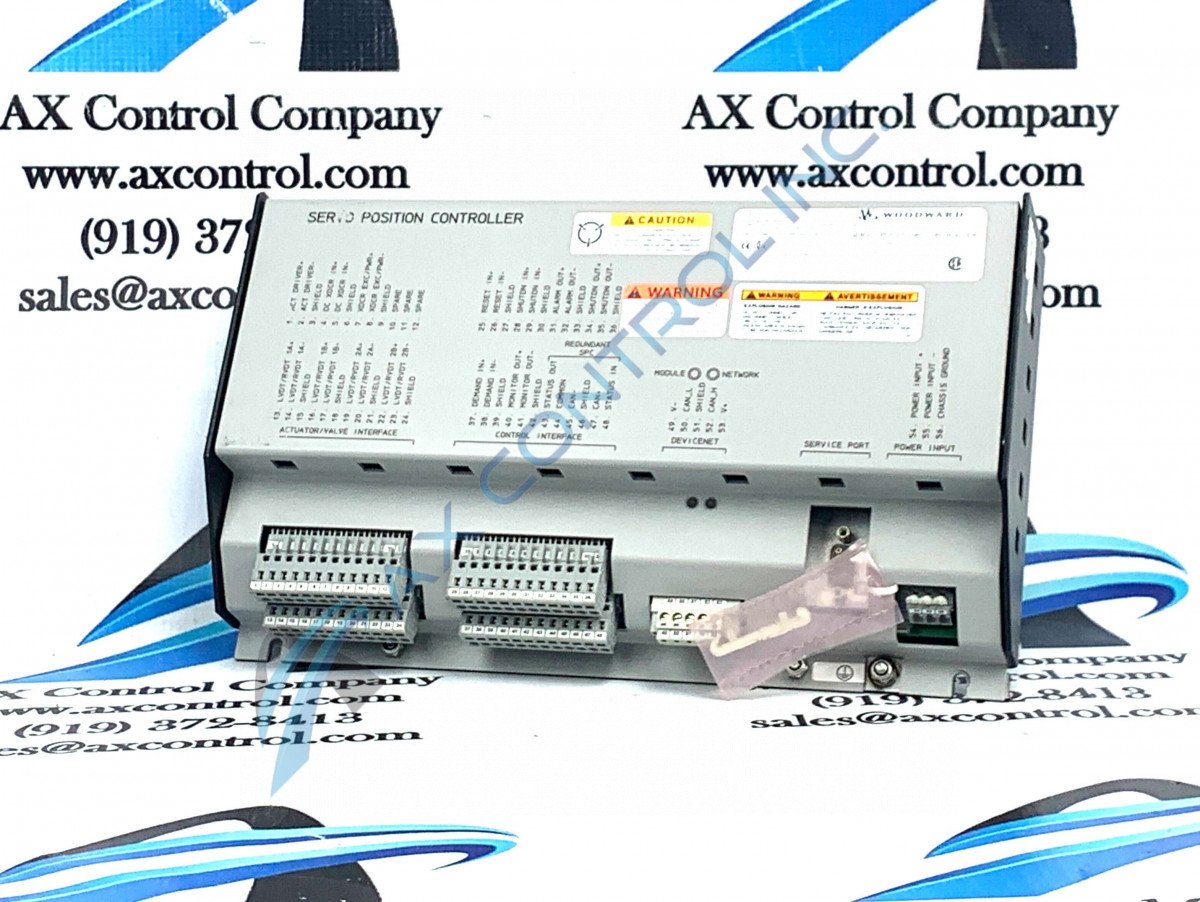

Woodward Part 8200-224 Servo Position Controller. Has a power supply range of 18-32 Vdc, for peak performance use a power supply that reads 24 Vdc.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a 8200-224 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8200-224
  • SKU: 8200224WO
  • Manufacturer: Woodward
  • Series: Servo Position Controller

8200-224

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
Woodward Part 8200-224 Servo Position Controller. Has a power supply range of 18-32 Vdc, for peak performance use a power supply that reads 24 Vdc.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a 8200-224 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8200-224
  • SKU: 8200224WO
  • Manufacturer: Woodward
  • Series: Servo Position Controller

8200-224 Technical Specifications

Current Range ± 10 - ±250 mA
Input Filter 5 ms lag
Input Impedance 400 kOmega
Linearity 0.1% of Full Scale
Manufacturer Woodward
Power Dissipation 20 W typical heat load
Temperature Sensitivity 300 ppm/C

Product Description

The control 8200-224 is labeled under Woodward incs Servo Position Controller (SPC) series. The primary purpose of the 8200-224 model is to position two different actuators together, typically these actuators are pneumatic or hydraulic. Please note that when you are powering your device, the voltage needed to power your control successfully should be 18 to 32 Vdc for your control to run at its peak performance you should typically power your control at 24 Vdc.

While you are using your device it is essential to consider all of the electrical specifications needed during the operation of your 8200-224 model, for example, the power dissipation for the model is typically 20 W for a standard heat load. There are also specific environmental factors needed to keep your control from potentially malfunctioning, for example, the humidity factor should be 95% condensing.

When you are using your control be specific about the operating mode your control is in as there are four that can be used to work in, the four are as follows; calibrate, run, configure, and manual stroke mode. If you have connected your control to a DeviceNet port the mode can be changed at the request of the control system.

The 8200-224 can provide the required accuracy, response timing, and redundant functionalities to be integrated into a gas or steam turbine fuel valve control. The 8200-224 can accept and process the feedback signals from either one or two redundant AC devices, or a single DC device.

AX Control INC which is located in Raleigh North Carolina provides the 8200-224 control if you are interested in purchasing you may contact us by phone or email to inquire about the price.

Reviews For 8200-224
Internal Review

Before packing this controller we briefly powered this control up and it performed exceptionally, please make sure that you are connecting the correct wire to your controller such as a twisted pairing wire while you are installing your controller. Consult your manual and a certified professional during installation and operation. - AX Control Tech Team

Repair Services For 8200-224

Type Lead Time Price Action
Repair Service 1-2 weeks $1781

Our highly skilled technicians can repair your 8200-224. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
