8237-1594

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The 8237-1594 utilizes a triple modular redundant architecture and 2-out-of-3 voting logic to accurately determine unsafe conditions and singlepoint failures.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 8237-1594 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8237-1594
  • SKU: 82371594WO
  • Manufacturer: Woodward
  • Series: ProTech-GII Overspeed Protection

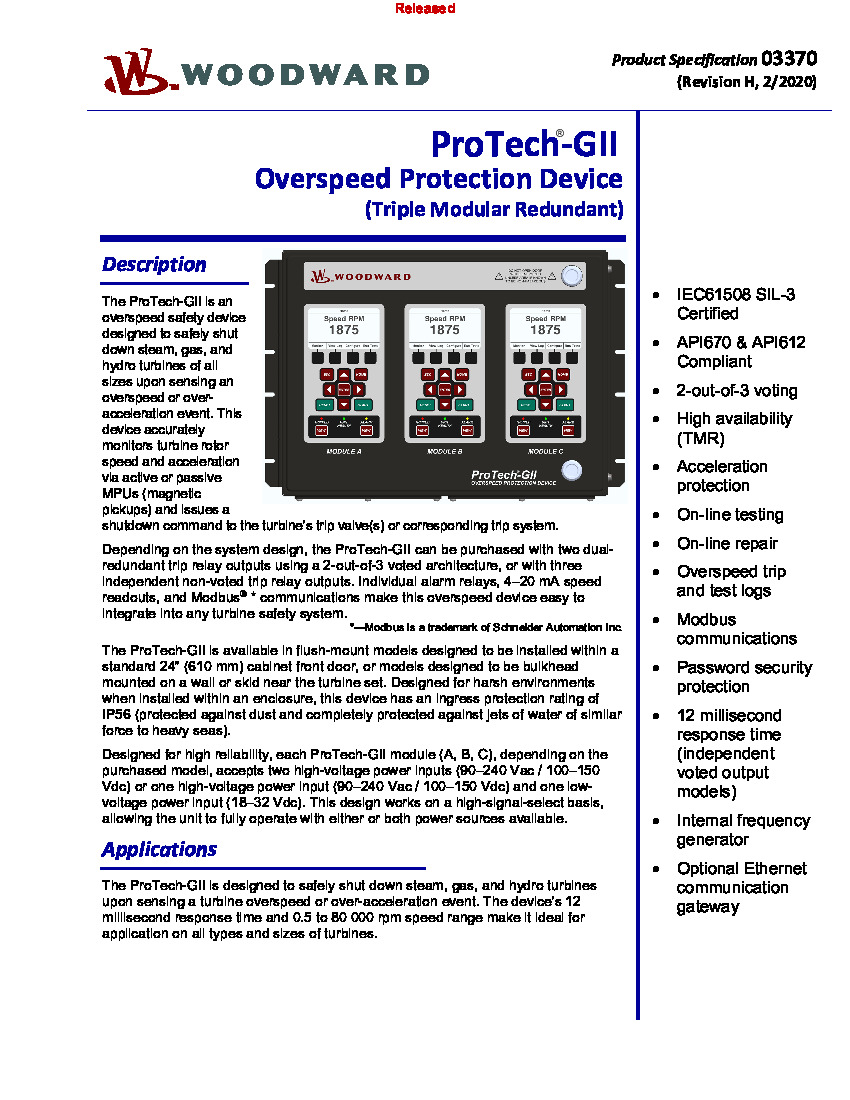

8237-1594 Technical Specifications

Dimensions H13 in x W19.1 in x D6 in
Enclosure Type IP56, installed in IP56 enclosure/cabinet
Features Space for opening & servicing
High Voltage Input Range Nominal 115 Vac / 240 Vac / 125 Vdc
Keypad/Display 107mm display for each module
Low Voltage Input Range 18–32 Vdc @ 30 W per module
Manufacturer Woodward
Operating Temperature –20 to +60 °C (–4 to +140 °F)
Storage Temperature –20 to +65 °C (–4 to +158 °F)
Weight 26 lbs 12 oz

Product Description

Model 8237-1594 comes out of the Woodward Protech-GII series. It is an over-speed detection device that can be equipped with any size turbine. It works with gas, hydro, and steam turbines to safely and effectively shut them down in the event of over acceleration. Model 8237-1594 also has MPU detection and a sulfur-resistant coating. It can be used in class 3C2 environments and has long-term resistance to S02 and H2S gases. A triple module design allows for online repairs if one module is malfunctioning. The A, B, or C modules can be replaced while the rest of the system is still online and operating. This product can also perform routine speed tests, and log the results of those tests. This is done through an internal generator and ensures everything is running smoothly.

Speed readouts for this model are from 4 to 20 mA, and it uses 2 out of 3 voted architecture and three independent relays. It’s a bulkhead mount using high and low voltage power inputs. It is also equipped with Modbus communication. Model 8237-1594 has been discontinued by Woodward, but it can still be found through AX Control. AX Control can buy, sell, and repair these over-speed detection devices.

Reviews For 8237-1594
Internal Review

American Standards: This Equipment is Suitable for use in Class I, Division 2, Groups A, B, C, D, or Non-Hazardous Locations Only. European Standards: This equipment is suitable for use in European Zone 2, Group IIC environments, or Non-Hazardous Locations Only. - AX Control Tech Team

Repair Services For 8237-1594

Type Lead Time Price Action
Repair Service 1-2 weeks $4580

Our highly skilled technicians can repair your 8237-1594. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
