Energize-to-Trip Model 9907-346 from Woodward ProTech 203 Overspeed Protection. 24Vdc Input, Lockable Enclosure, and a Trip Alarm

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9907-346 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9907-346
  • SKU: 9907346WO
  • Manufacturer: Woodward
  • Series: ProTech 203 Overspeed Protection

9907-346

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
Energize-to-Trip Model 9907-346 from Woodward ProTech 203 Overspeed Protection. 24Vdc Input, Lockable Enclosure, and a Trip Alarm

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9907-346 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9907-346
  • SKU: 9907346WO
  • Manufacturer: Woodward
  • Series: ProTech 203 Overspeed Protection

9907-346 Technical Specifications

Dimensions W482.6 x H310.4 x D142.7 (with knobs and key)
Display Operating Temperature +5 to +140 °F
Features CPU Failure Indication
Input Voltage 24VDC
Manual 85206 (Rev F.)
Manufacturer Woodward
Model Energize-to-Trip
Operating Temperature –13 to +140 °F
Trip-Point Frequency Range 250 Hz to 25 kHz
Weight Less than 17 lbs

Product Description

Features permitted by this design and hardware vote configuration include:

  • Hot replacement – individual units can be replaced while the prime mover is online
  • Built-in self-test – speed sensing units may be tested one at a time without causing a trip



Speed-sensing units A, B, and C have separate 24 Vdc power supplies. Model 9907-346 is an energize-to-trip overspeed protection system. If your application does not require an energize-to-trip model, AX control also carries a 24 Vdc de-energize-to-trip model.



Protection from devices that produce electromagnetic interference is one of the precautions that should be taken when installing ProTech 203 model 9907-346. If avoidance of close proximity to such devices is not possible, double-shielded wire, shielded cable run-in conduit, or other precautions may be necessary.

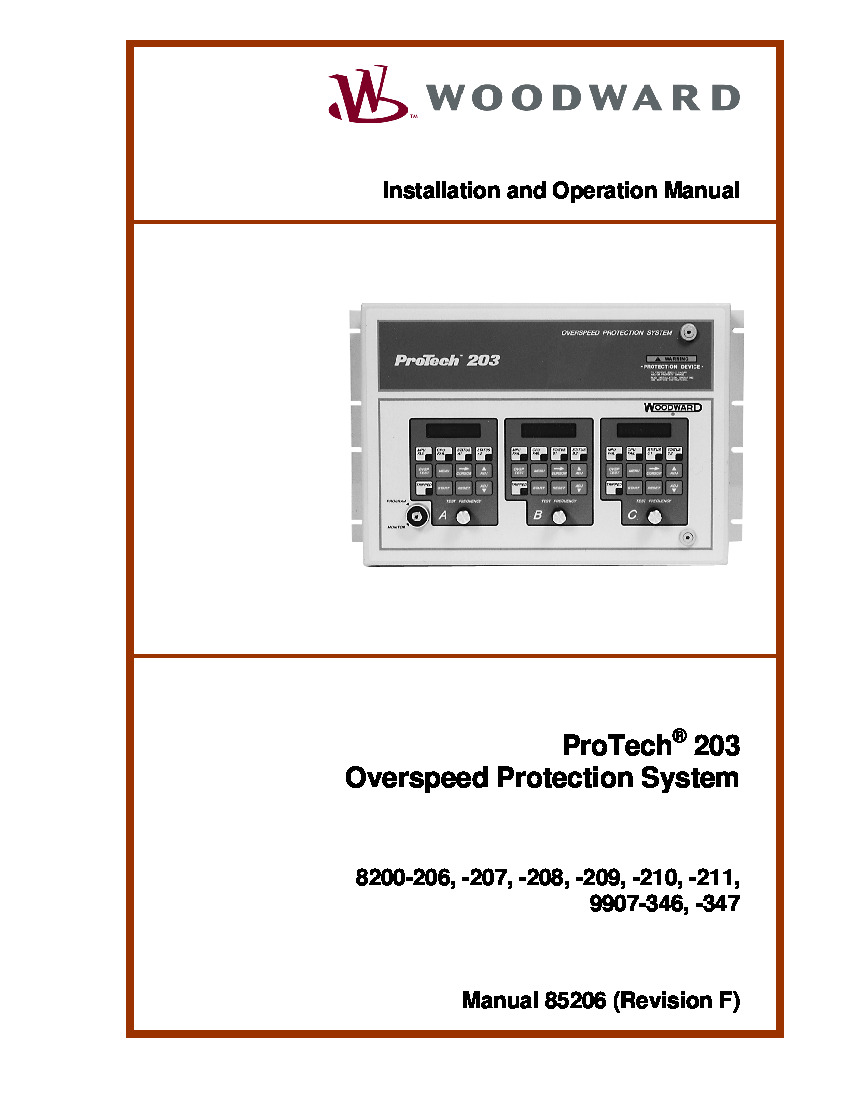

Woodward ProTech manual 85206 has more information on location considerations, wiring, and product specifications for the 9907-346 overspeed protection system.

Reviews For 9907-346
Internal Review

Each Woodward 9907-346 unit can be configured so that on the sudden loss of that unit's MPU, the unit can either output both an alarm plus a trip signal, or the unit can output only an alarm. - AX Control Inc.

Repair Services For 9907-346

Type Lead Time Price Action
Repair Service 1-2 weeks $4288

Our highly skilled technicians can repair your 9907-346. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
