The ProTech 203 Overspeed Protection System Electronic Overspeed Trip Device for Reading and Relaying Three Individual Magnetic Pickups. Model 9907-345

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a 9907-345 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9907-345
  • SKU: 9907345WO
  • Manufacturer: Woodward
  • Series: ProTech 203 Overspeed Protection

9907-345

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
The ProTech 203 Overspeed Protection System Electronic Overspeed Trip Device for Reading and Relaying Three Individual Magnetic Pickups. Model 9907-345

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a 9907-345 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9907-345
  • SKU: 9907345WO
  • Manufacturer: Woodward
  • Series: ProTech 203 Overspeed Protection

9907-345 Technical Specifications

Dimensions W19in x H12.244in x D5.62in
Features CPU Failure Indication
Input Voltage 24Vdc
Manual 85205 (F)
Manufacturer Woodward
Model De-energize-to-Trip
Operating Temperature –25 to +60 °C
Speed-Sensing Frequency Range 100 Hz to 32 kHz
Standards Adequate ventilation for cooling and space for servicing
Weight Less than 14 lbs

Product Description

Hot replacement, built-in self-test, remote reset, and multiple alarm outputs are just a few of the features available with this ProTech model. This overspeed protection device has three magnetic pickups (MPUs) which are in three separate speed-sensing units. Each unit, A, B, and C, actuates two-voter relays.



Units A, B, and C function independently prior to the hardware vote, and each one has a separate operator interface and 24 Vdc power supply. It is this design and voter relay configuration that permit some of model 9907-345’s features, such as the ability to test or replace individual units without taking the prime mover offline.



Because of this modular design, each unit also has its own alarms, both visual and audible. Error messages on a unit’s LCD display and LEDs indicate various issues such as MPU fail timeout or a failed CPU. On top of these visual indicators, problems that may require attention will also trigger an alarm output.

ProTech model 9907-345 has a 250 Hz to 25 kHz frequency range. The allowable range for MPU Failed Timeout is 100 rpm to 25,000 rpm. This de-energize-to-trip system is in a NEMA 4 and 4X certified enclosure.



ProTech overspeed protection devices are susceptible to electromagnetic interference. Precautions must be taken to protect this device from high-currency and high-voltage devices, as well as from vibration. Location considerations for ProTech model 9907-345 can be found in the device manual, ProTech 203 Overspeed Protection System Manual 85205 (Revision F). Additional Woodward manuals that contain information relevant to this system are manuals 82715, 82510, and 50532.

Reviews For 9907-345
Internal Review

Immediately after a reset operation, an MPU Fail Timer starts. If the prime mover speed is not up to the value programmed when this timer times out, the device will trip the prime mover. Both the time and the speed are programmable. - AX Control Inc. Techs

Repair Services For 9907-345

Type Lead Time Price Action
Repair Service 1-2 weeks $5328

Our highly skilled technicians can repair your 9907-345. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

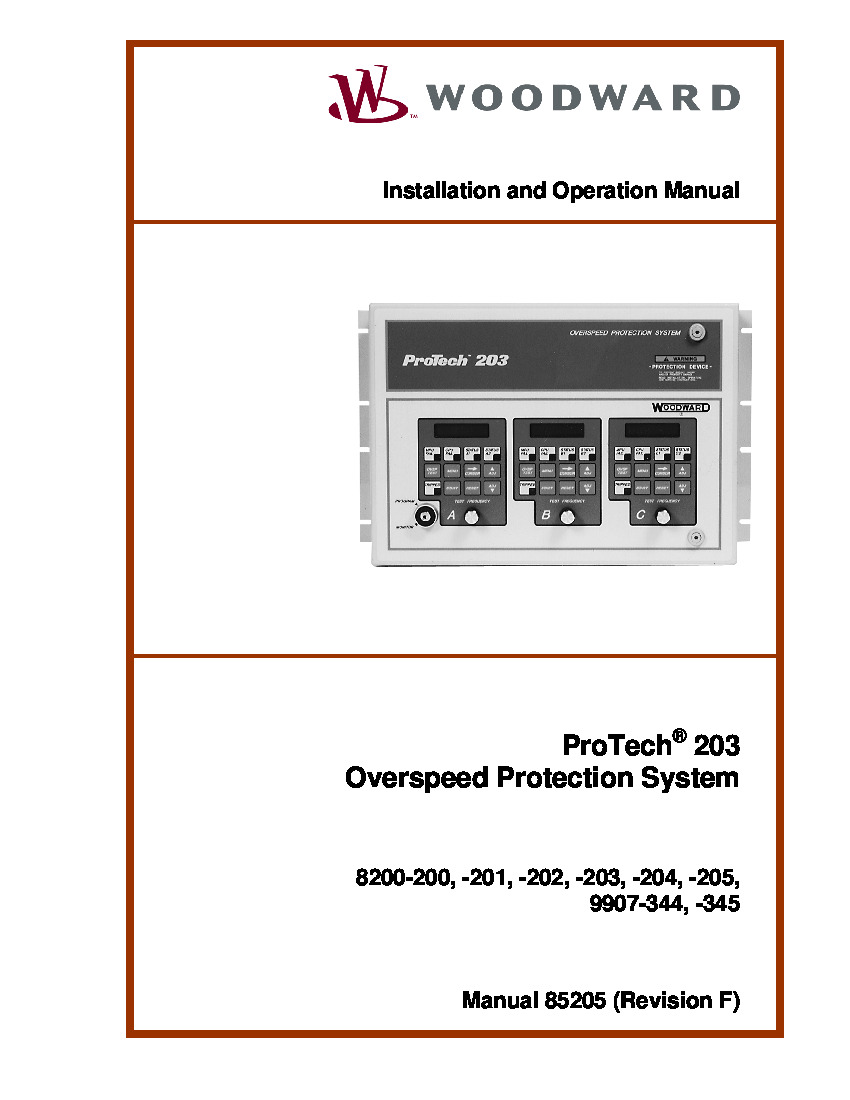

9907-345 Manuals, White Papers, Data Sheets, and Troubleshooting
