9907-149 ProTech 203 Electronic Overspeed Trip Device from Woodward that senses prime mover speed through three magnetic pickups (MPUs).

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9907-149 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9907-149
  • SKU: 9907149WO
  • Manufacturer: Woodward
  • Series: ProTech 203 Overspeed Protection

9907-149

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
9907-149 ProTech 203 Electronic Overspeed Trip Device from Woodward that senses prime mover speed through three magnetic pickups (MPUs).

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9907-149 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9907-149
  • SKU: 9907149WO
  • Manufacturer: Woodward
  • Series: ProTech 203 Overspeed Protection

9907-149 Technical Specifications

Dimensions W19in x H12.244in x D5.62in
Features Hot Replacement
Input Voltage 120 Vac/dc
Keypad/Display 1 display and keypad per module
Manual 85204
Model De-energize-to-Trip
Operating Temperature –13 to +140 °F
Standards NEMA 4/4x, IP54
Weight Less than 17 lbs

Product Description

ProTech model 9907-149 is a 120 Vac/dc device. There is a separate power supply for each of the three speed-sensing units in this system. This is part of the modular design of this Woodward overspeed protection device that enables such features as hot replacement of an individual unit and testing of individual units without taking the prime mover offline.



Speed-sensing units A, B, and C in model 9907-149 are identical. On top of having separate power supplies, the units also have separate operator interfaces and alarm systems. The three units are configured for a two-out-of-three voting method. Prior to this hardware vote, the three units act independently, monitoring prime mover speed with magnetic pickups (MPUs) and individually performing speed calculations.

The three units that makeup ProTech model 9907-149 must be programmed with identical trip points. PROGRAM mode is accessed with a key switch that is connected to all three units. Due to the modular design of this Woodward system, units are programmed separately.



Tunable parameters are set when the units are in PROGRAM mode. These parameters are:

  • Trip Speed Set Point (250 rpm to 25,000 rpm)
  • MPU Gear Teeth (20 to 120)
  • MPU Failed Timeout (1 sec to 533 min 20 sec)
  • MPU Failed Set Point (100 rpm to 25,000 rpm)
  • Trip on MPU Failure
  • Timer Starts on Reset
  • Alarm If Speed Is < MPU Failed Set Point



These parameters, along with Present Speed, Peak Speed, Lamp Test, and Trip Cause, can all be viewed on the unit operator interface while the unit is in MONITOR mode. Present Speed is the default first parameter displayed.

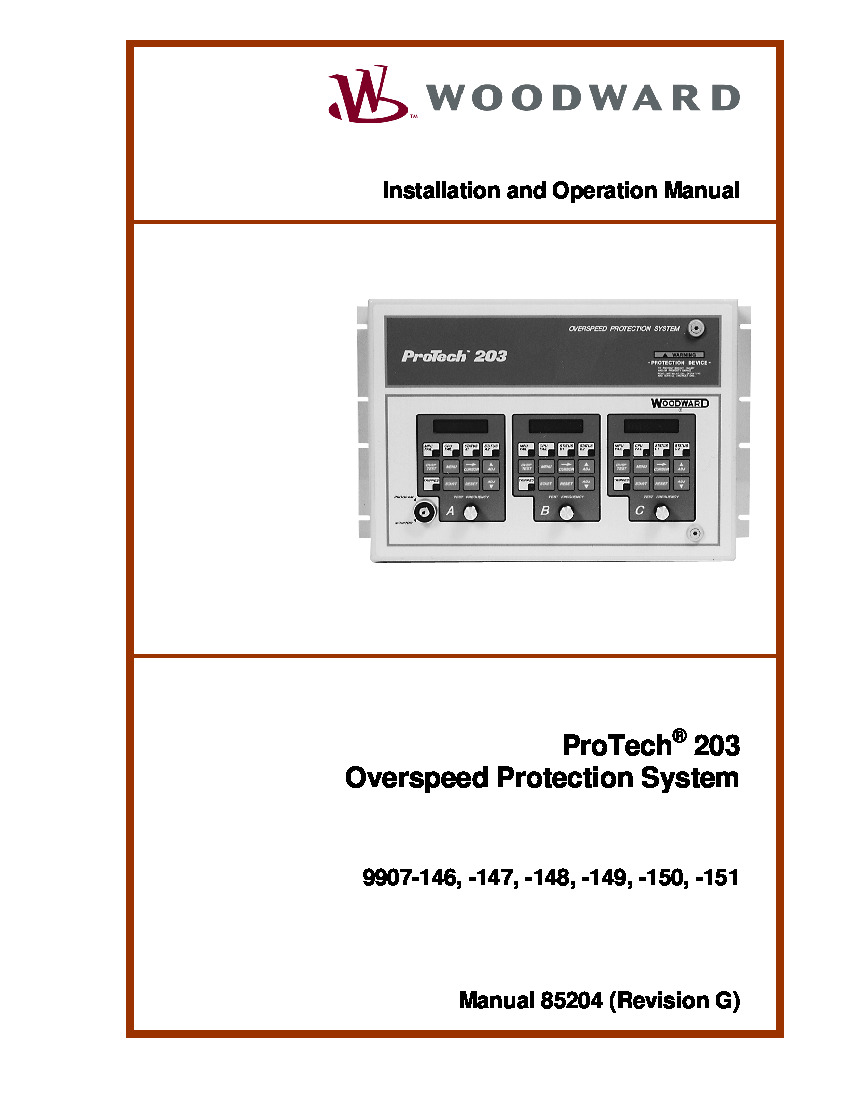

The enclosure of Woodward ProTech model 9907-149 is NEMA 4 and 4X certified (IP54 for Europe). Manual 85204 (Revision G) is the manual for this device.

Reviews For 9907-149
Internal Review

Each 9907-149 model from Woodward's series of the ProTech 203 system includes a touchpad, a two-line by 16-character LCD display, and a potentiometer for adjusting the overspeed test frequency. - AX Control Team of Technicians

Repair Services For 9907-149

Type Lead Time Price Action
Repair Service 1-2 weeks $5426

Our highly skilled technicians can repair your 9907-149. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
