Woodward Energize-to-Trip ProTech 203 Overspeed Trip Device 9907-145 that senses prime mover speed through three MPUs. Features Audible and Visible Alarm Systems.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9907-145 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9907-145
  • SKU: 9907145WO
  • Manufacturer: Woodward
  • Series: ProTech 203 Overspeed Protection

9907-145

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
Woodward Energize-to-Trip ProTech 203 Overspeed Trip Device 9907-145 that senses prime mover speed through three MPUs. Features Audible and Visible Alarm Systems.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9907-145 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9907-145
  • SKU: 9907145WO
  • Manufacturer: Woodward
  • Series: ProTech 203 Overspeed Protection

9907-145 Technical Specifications

Dimensions W19in x H12.244in x D5.62in
Features CPU and MPU Failure Indication
Input Voltage 120 Vac/dc = 88–132 Vac/90–150Vdc, 7.25W
Keypad/Display 1 Keypad and Display per Module

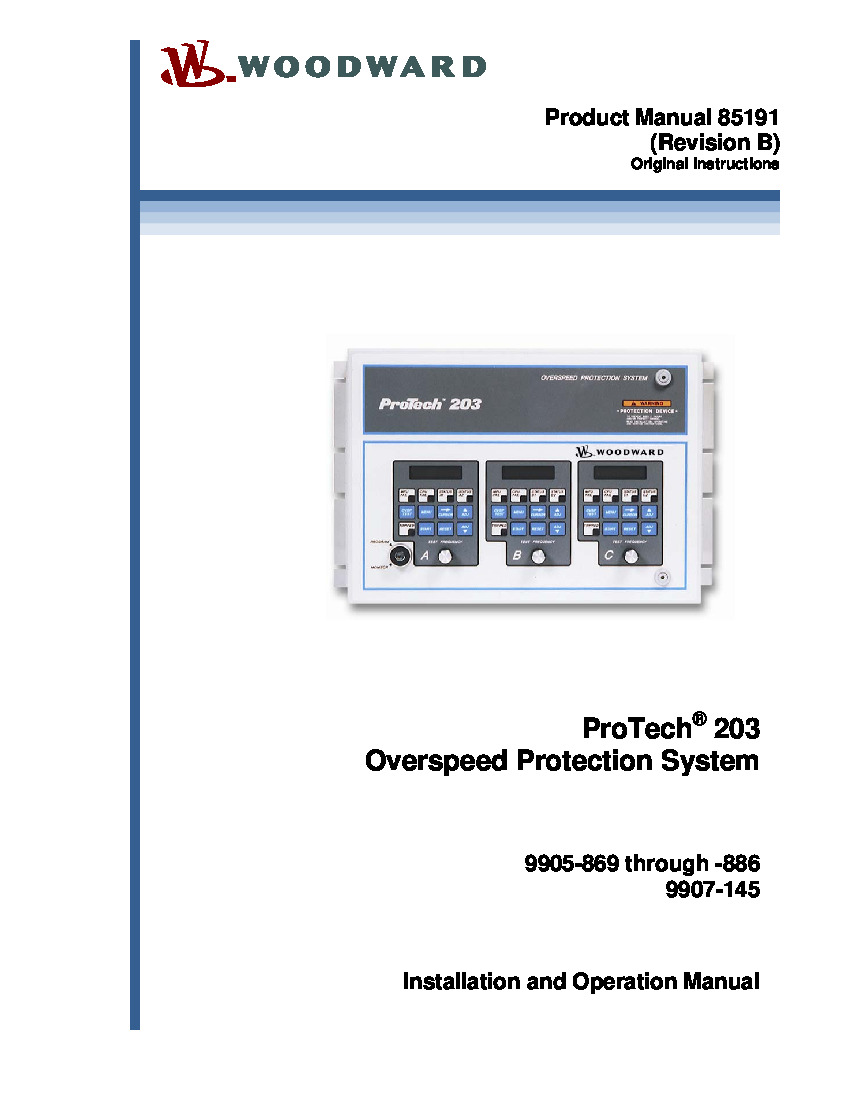

Manual 85191
Manufacturer Woodward
Model Energize-to-Trip
Operating Temperature –25 to +60 °C (–13 to +140 °F)
Standards NEMA 4 and IP54

Product Description

Woodward overspeed protection device model 9907-145 uses magnetic pickups (MPUs) to monitor prime mover speed. This ProTech energize-to-trip system has several features that make programming and monitoring MPU functions easy.



MPUs in the 9907-145 system are interfaced with three separate speed-sensing units, each with its own operator interface. On each interface is a separate LED to indicate the status of that unit’s MPU. If an MPU or its wiring fails, the corresponding LED will illuminate. With the 9907-145 model operators have the option to configure each unit to either output both an alarm and a trip signal, or to output only an alarm if that unit’s MPU is lost.



MPU Fail Timeout, MPU Failed Setpoint, and Trip on MPU Failure are a few of the 9907-145 tunable parameters. A complete list of tunable parameters and their functions is in Woodward ProTech manual 85191. These parameters are both programmed and monitored with the keypad and LCD on each operator interface. Speed-sensing units are programmed individually but must be programmed with identical trip points.



Units are programmed separately due to the modular design of model 9907-145, a design that permits features such as a two-out-of-three voting configuration and hot replacement of any individual speed-sensing unit. For these reasons, there is a separate 120 Vac/dc power supply (voltage range of 88–132 Vac/90–150 Vdc, 7.25 W) for each unit.
