ProTech 203 Unit 9905-992 from Woodward displays the highest speed signal with modular testing. This Model feature Hot Replacement modules

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a 9905-992 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9905-992
  • SKU: 9905992WO
  • Manufacturer: Woodward
  • Series: ProTech 203 Overspeed Protection

9905-992

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
ProTech 203 Unit 9905-992 from Woodward displays the highest speed signal with modular testing. This Model feature Hot Replacement modules

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a 9905-992 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9905-992
  • SKU: 9905992WO
  • Manufacturer: Woodward
  • Series: ProTech 203 Overspeed Protection

9905-992 Technical Specifications

Dimensions W19in x H12.244in x D5.62in
Features Key Lock
Input Voltage (2) 24 Vdc, (1) 120 Vac/dc
Keypad/Display 12 keys, 1 LCD, and 1 knob per module
Manual Woodward 85196
Model De-energize-to-Trip
NEMA Rating NEMA 4, IP54
Operating Temperature –13 to +140 °F

Product Description

9905-992 is a ProTech de-energize-to-trip model. This overspeed protection device is one of the models with two input voltages. Speed-sensing units A and B each has a 24 Vdc power supply, while the power supply for unit C is 120 Vac/dc. Aside from that, the three units are identical.



One key feature of model 9905-992 is the operator interfaces. There are three of these on the front panel, one for each speed-sensing unit. The LCD and keypad on the interface are used to program the system and set parameters such as MPU Fail Set Point and Trip Speed Set Point. Access to PROGRAM mode is restricted by the location of the key switch to switch between modes. This key switch is located inside the key-locked enclosure.



The LCDs also display a number of parameters while the ProTech 9905-992 system is in MONITOR mode. This includes:

  • Present Speed (the default first parameter displayed)
  • Peak Speed
  • Trip Cause (if applicable)
  • Trip on MPU Failure Option
  • MPU Gear Teeth
  • MPU Failed Set Point
  • MPU Failed Timeout
  • Trip Speed Set Point



When functions fail to operate normally, an error code is displayed. Some issues, such as a tripped unit or a failed MPU, will also trigger an LED functional status indicator to illuminate. In the event of a tripped unit, an alarm output will sound as well.

Reviews For 9905-992
Internal Review

All shielded cables for the 9905-992 must be twisted conductor pairs with either a foil or a braided shield. All signal lines should be shielded to prevent picking up stray signals from adjacent equipment. - AX Technicians

Repair Services For 9905-992

Type Lead Time Price Action
Repair Service 1-2 weeks $4470

Our highly skilled technicians can repair your 9905-992. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

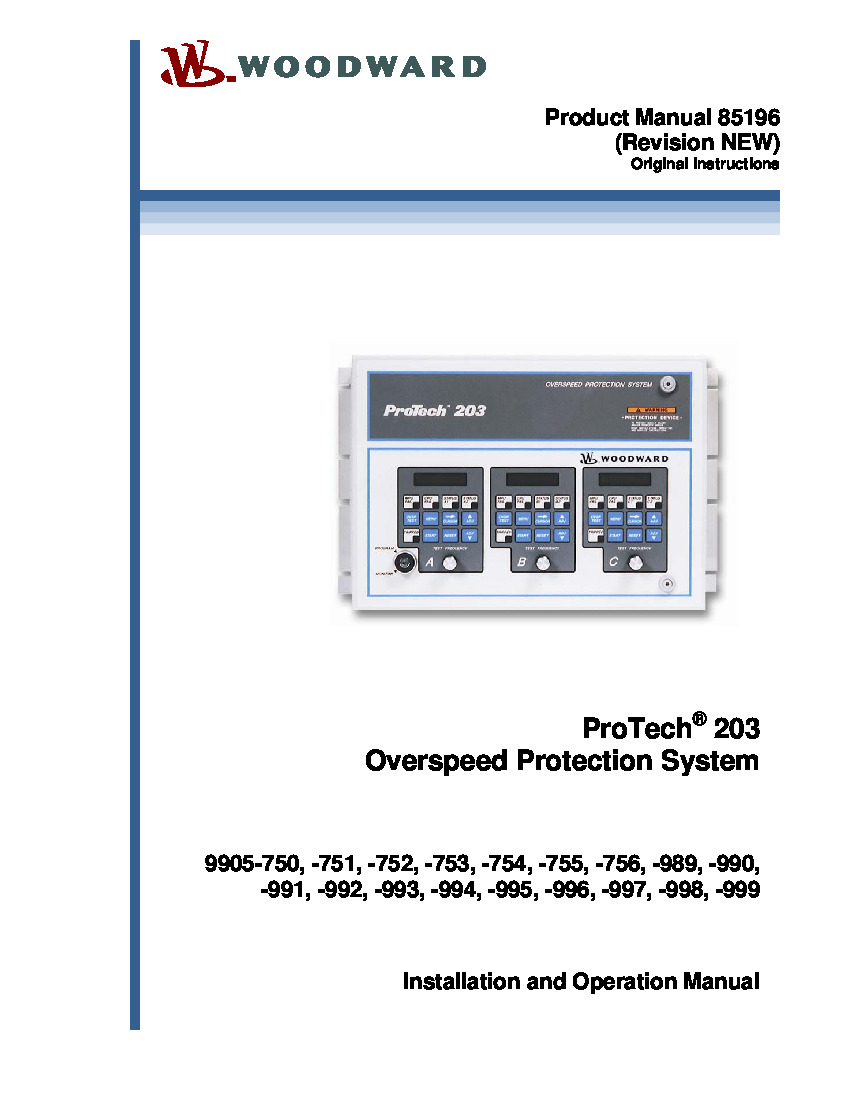

9905-992 Manuals, White Papers, Data Sheets, and Troubleshooting
