The ProTech 203 Overspeed Protection System model 9905-976 reads three individual magnetic pickups and performs three individual speed calculations

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9905-976 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9905-976
  • SKU: 9905976WO
  • Manufacturer: Woodward
  • Series: ProTech 203 Overspeed Protection

9905-976

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The ProTech 203 Overspeed Protection System model 9905-976 reads three individual magnetic pickups and performs three individual speed calculations

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9905-976 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9905-976
  • SKU: 9905976WO
  • Manufacturer: Woodward
  • Series: ProTech 203 Overspeed Protection

9905-976 Technical Specifications

Dimensions W482.6 x H310.4 x D142.7 mm
Features 12 keys and 1 knob per module
Input Voltage 120 Vac/dc = 88–132 Vac, 90–150Vdc, 7.25W
Keypad/Display 1 Keypad and Display per Module
Manufacturer Woodward
Model CPU Fail Indication
Operating Temperature –25 to +60 °C
Standards CPU Fail Indication
Weight Less than 15 lbs

Product Description

Three separate speed calculations are performed and put to a two-out-of-three hardware vote to determine whether overspeed conditions have been met. If an overspeed condition is detected by only one of the three speed-sensing units, only that unit will trip. If the condition is detected by two of the three units, a trip relay is activated for the entire 9905-976 system. This is an energize-to-trip model in the Woodward ProTech 203 series.



All three units are interfaced with a magnetic pickup (MPU) to monitor prime mover speed. From speed sampling (done every 5 ms) to the activation of a trip relay, the ProTech 203 9905-976 overspeed protection system has an overall response time of 40 ms max. Coupled with the modular design and voting configuration of this device, the 9905-976 system minimizes prime mover downtime.



Units A, B, and C in model 9905-976 are identical. They each have a 120 Vac/dc power supply and an operator interface.  Although these units are programmed separately, they need to have identical parameters set for the overall system to function correctly.



A few of the tunable parameters include:

  • Trip speed set point (250 rpm minimum, 25,000 rpm maximum)
  • MPU fail set point (100 rpm minimum, 25,000 rpm maximum)
  • Trip on MPU failure

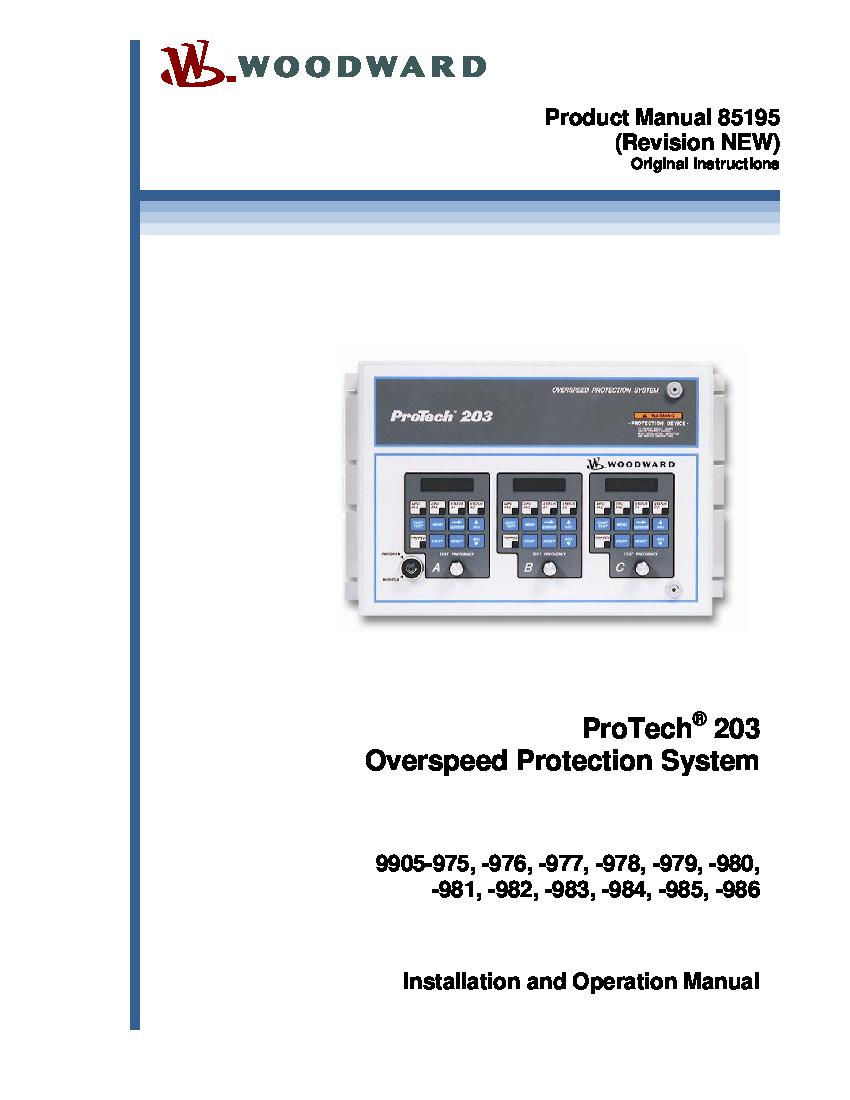

A full list of tunable parameters for the 9905-976 model is in Woodward ProTech 203 manual 85195. This manual also contains additional device specifications and programming information.
