Woodward 9905-880 ProTech 203 Overspeed Trip Device that senses prime mover speed through three MPUs. Features Audible and Visible Alarm Systems.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9905-880 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9905-880
  • SKU: 9905880WO
  • Manufacturer: Woodward
  • Series: ProTech 203 Overspeed Protection

9905-880

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
Woodward 9905-880 ProTech 203 Overspeed Trip Device that senses prime mover speed through three MPUs. Features Audible and Visible Alarm Systems.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9905-880 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9905-880
  • SKU: 9905880WO
  • Manufacturer: Woodward
  • Series: ProTech 203 Overspeed Protection

9905-880 Technical Specifications

Dimensions H12.244in x W19in x D5.62in
Features Remote Reset
Input Voltage 220 Vac = 180–264 Vac, 7.25W
Keypad/Display 1 LCD per module (2x16 Characters)
Manual 85191
Manufacturer Woodward
Operating Temperature –13 to +140 °F
Standards NEMA 4/4x, IP54
Weight Approx 16 lbs

Product Description

This overspeed protection system is part of Woodward’s ProTech 203 series. It is a 220 Vac version (one power supply per speed sensing unit) and is one of several de-energize-to-trip versions available. The components of model 9905-880 are in a single enclosure that, if the optional stainless steel hubs are used, meets NEMA 4X standards.



Model 9905-880 has a 100 Hz to 32 kHz speed-sensing frequency range. Speed is sampled every 5ms by magnetic pickups (MPUs) interfaced with each ProTech 203 9905-880 speed sensing unit. The overall system has a 40 ms max total response time. The trip-point frequency range of this system is 250 Hz to 25 kHz.



A trip relay is activated when overspeed conditions are met. If conditions are met by only one of the three units, only that unit is tripped and the rest of the system remains online.



Features of the model 9905-880 include:

  • MPU failure indicator
  • CPU failure indicator
  • Hot replacement
  • Remote reset
  • Alarm outputs

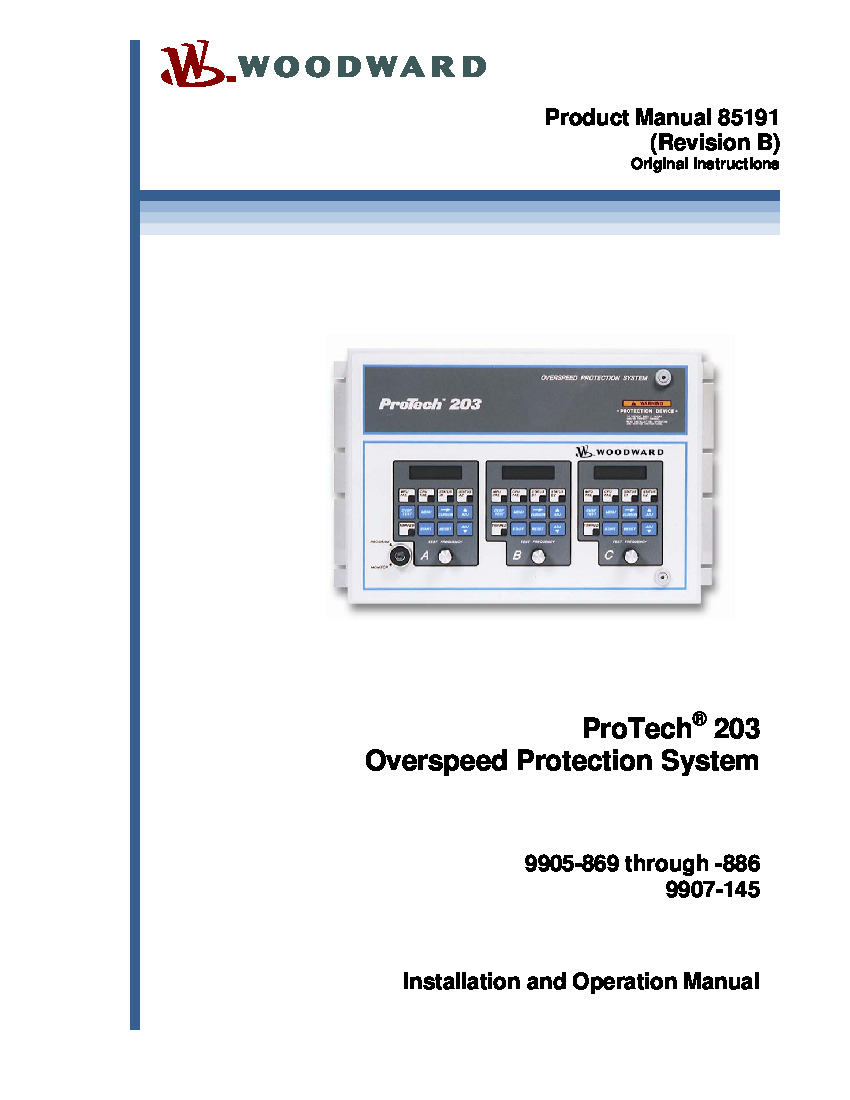

Additional features and 9905-880 specifications can be found in Manual 85191 (version B).



Model 9905-880 should be kept in MONITOR mode during normal operations, though it will run either MONITOR mode or PROGRAM mode. Access to the switch between the two modes is restricted through a key switch on the enclosure.

Reviews For 9905-880
Internal Review

Immediately after a reset operation of the 9905-880, an MPU Fail Timer starts. If the prime mover speed is not up to the value programmed when this timer times out, the device will trip the prime mover. Both the time and the speed are programmable. - AX Control Inc. Technicians

Repair Services For 9905-880

Type Lead Time Price Action
Repair Service 1-2 weeks $5804

Our highly skilled technicians can repair your 9905-880. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
