The Woodward ProTech 203 Unit 8200-205 electronic two-out-of-three Overspeed Protection Systems. Features a 220 Vac Power Supply, CPU and MPU Failure Indication, and a Lockable Enclosure

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 8200-205 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8200-205

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
The Woodward ProTech 203 Unit 8200-205 electronic two-out-of-three Overspeed Protection Systems. Features a 220 Vac Power Supply, CPU and MPU Failure Indication, and a Lockable Enclosure

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 8200-205 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8200-205 Technical Specifications

Dimensions W19in x H12.244in x D5.62in
Display Operating Temperature +5 to +140 °F
Features Subsystem Replacement
Input Voltage 220 Vac
Keypad/Display 1 display and keypad per module
Manual 85205 (Rev F.)
NEMA Rating 4/4X
Standards IP54
Trip-Point Frequency Range 250 Hz to 25 kHz
Weight 13lb 1oz before packaging

Product Description

This part is a digital overspeed protection device that utilizes three magnetic pickups connected to three separate speed-sensing units to continually monitor prime mover speed for overspeed or loss-of-signal conditions. Model 8200-205 is the 220 Vac input, de-energize-to-trip version in this Woodward ProTech series.



These units can be switched between PROGRAM and MONITOR modes only with key lock access, preventing unauthorized changes.  There are two methods for turbine start available with the ProTech 203 8200-205 system. One method provides separate start and resets functions; the other method provides a combined start/reset function.

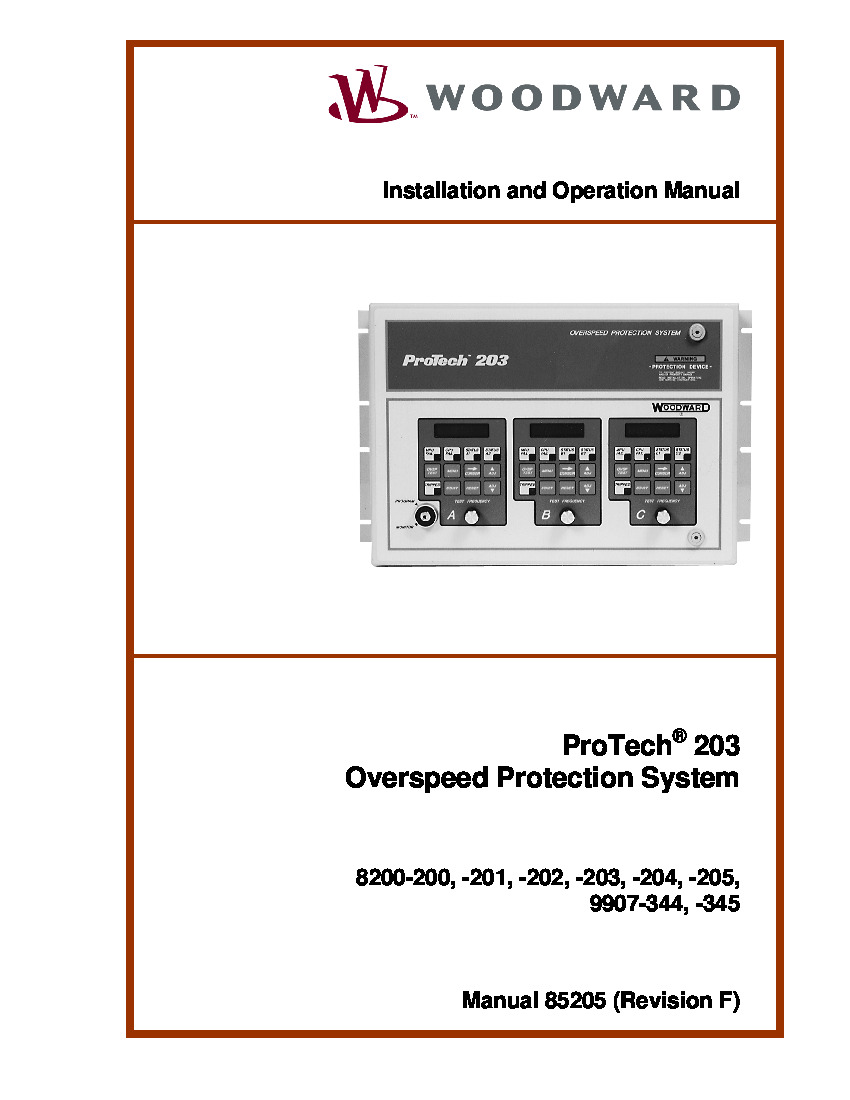

Details on these two turbine start options, environment requirements of the 8200-205, installation instructions, and more, can be found online in the Woodward ProTech 203 Overspeed Protection System Installation and Operation Manual 85205 (F).

Reviews For 8200-205
Internal Review

All shielded cable must be twisted conductor pairs with either a foil or a braided shield. All signal lines should be shielded to prevent picking up stray signals from adjacent equipment. - AX Control Tech Team

Repair Services For 8200-205

Type Lead Time Price Action
Repair Service 1-2 weeks $4804

Our highly skilled technicians can repair your 8200-205. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

8200-205 Manuals, White Papers, Data Sheets, and Troubleshooting
