8200-203 Woodward ProTech 203 consists of three identical, independent, speed-sensing units which continuously monitor prime mover speed and activate a trip relay when an overspeed condition is detected.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 8200-203 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8200-203

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
8200-203 Woodward ProTech 203 consists of three identical, independent, speed-sensing units which continuously monitor prime mover speed and activate a trip relay when an overspeed condition is detected.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 8200-203 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8200-203 Technical Specifications

Dimensions W19in x H12.244in x D5.62in (with knobs and key)
Display Operating Temperature –15 to +60 °C (+5 to +140 °F)
Features Key Lock
Input Voltage 120 Vac/dc = 88–132 Vac, 12.5 VA | 90–150 Vdc, 4.77 W
Keypad/Display (3) 2 by 16 Line LCDs
Manual 85205 (F)
Manufacturer Woodward
Model De-energize-to-Trip
NEMA Rating 4/4X, IP54
Operating Temperature –25 to +60 °C (–13 to +140 °F)
Weight 13 lbs 1 oz

Product Description

There are two versions offered in the ProTech 203 Overspeed Protection series by Woodward: de-energize-to-trip and energize-to-trip. Model 8200-203 is the 120 Vac/dc input model of the de-energize-to-trip versions. This model consists of three separate, identical speed-sensing units, each with its own power supply. These units sense prime mover speed through magnetic pickups and perform individual speed calculations, which are then used in a two-out-of-three hardware vote.



Model 8200-203 has a rich feature set, including remote reset, LED performance indicators, built-in self-test, an alarm output, and a key lock.



The LED performance indicators are located on the front panel of the units, alongside a touchpad and digital display. Together, the LEDs and digital display offer a quick, clear overview of the current functional status of the 8200-203 system.



The built-in self-test feature is achieved through a built-in frequency generator. This setup allows for individual units to be tested while the prime mover remains online. During testing of a unit, complete control is simply taken on by the two other units. This configuration also means that should anyone speed-sensing unit fail on the 8200-203, it can be replaced with little to no downtime required.

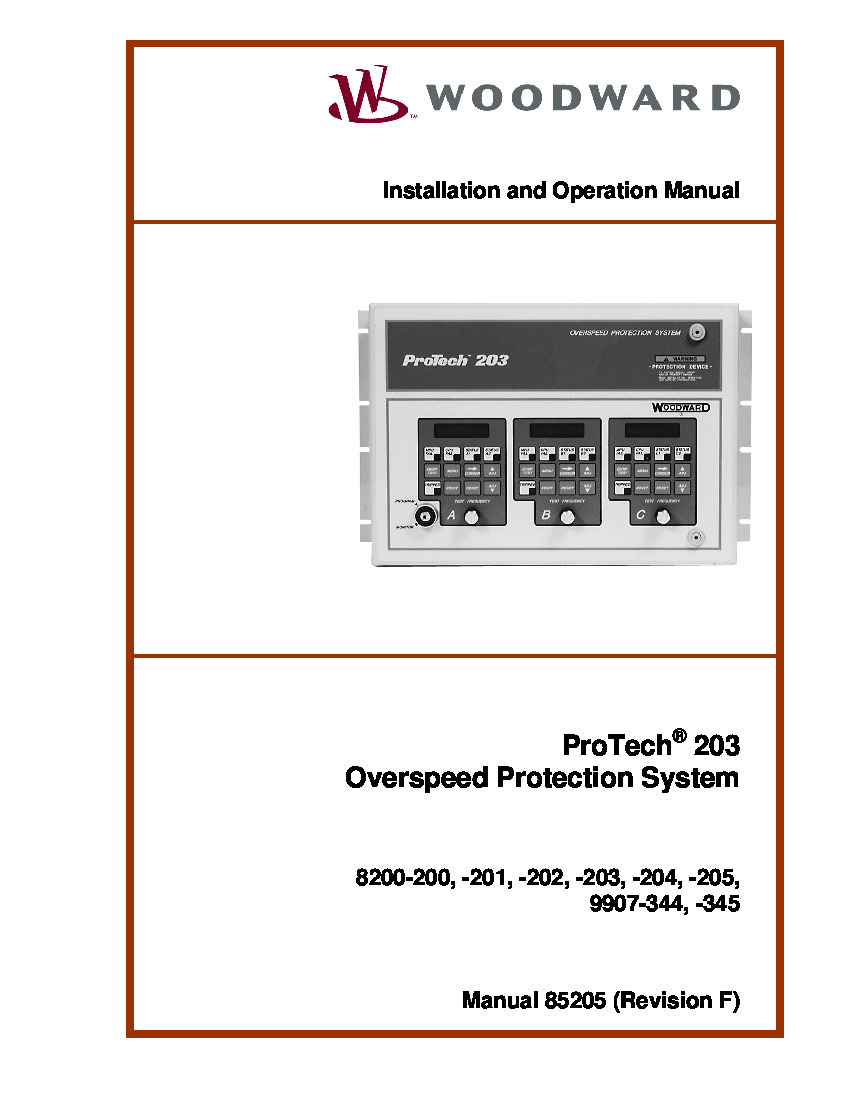

Additional features of and instructions for Woodward’s ProTech 203 Overspeed Protection model 8200-203 can be found in the company’s manual for the series: Installation and Operation Manual 85205 (F).
