ProTech 203 digital Overspeed trip device that senses prime mover speed through three magnetic pickups (MPUs). Woodward Model 8200-202

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 8200-202 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8200-202

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
ProTech 203 digital Overspeed trip device that senses prime mover speed through three magnetic pickups (MPUs). Woodward Model 8200-202

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 8200-202 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8200-202 Technical Specifications

Dimensions W482.6 x H310.4 x D142.7mm
Features Remote Reset
Input Voltage 120 Vac/dc = 88–132 Vac, 12.5 VA | 90–150 Vdc, 4.77 W
Keypad/Display 2x16 LCD (3)
Manufacturer Woodward
Model Energize-to-Trip
Operating Temperature –25 to +60 °C
Standards NEMA 4/4x, IP54
Weight approx 13.07lbs

Product Description

There are three different power supply versions in the ProTech 203 Overspeed Protection series. Model 8200-202 is the 120 Vac/dc input version of the energize-to-trip models. This Woodward module is a robust, dependable digital overspeed trip device that utilizes a two-out-of-three hardware voting method. The three separate speed-sensing units of the 8200-202 use magnetic pickups (MPUs) to sample the speed every 5 ms, after which they perform individual speed calculations.



Along with the reliability of this hardware voting method, the multi-unit design of model 8200-202 also allows for individual testing of each unit. While one speed-sensing unit is being tested, the other two units remain online and in control. This feature is made possible in part by a built-in frequency generator.



Each of the three units on this overspeed protection device has its own power supply, touchpad, and LCD display. The front panel has LEDs to indicate errors in system functioning.



Model 8200-202 should be installed in a location where it can maintain an operating temperature range of –25 to +60 °C (–13 to +140 °F); is protected from direct sunlight, condensation, and high vibration; and has plenty of ventilation.

Reviews For 8200-202
Internal Review

Depending on how the unit is configured, this input can act as a remote start input, or as an indication to the ProTech system that it should be sensing a speed greater than the MPU fail set point. - AX Tech Team

Repair Services For 8200-202

Type Lead Time Price Action
Repair Service 1-2 weeks $5952

Our highly skilled technicians can repair your 8200-202. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

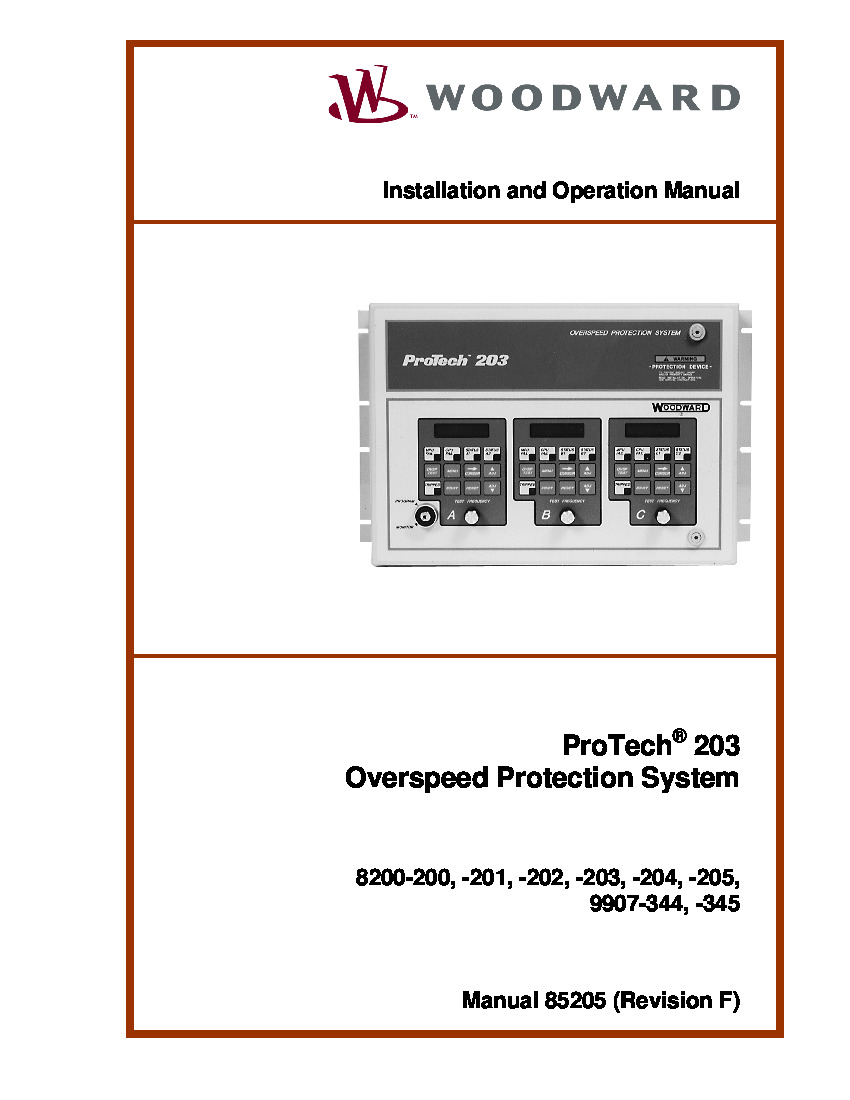

8200-202 Manuals, White Papers, Data Sheets, and Troubleshooting
