Woodward ProTech 203 electronic two-out-of-three Overspeed Protection Model 8200-201 with a 24Vdc Input, Lockable Enclosure, and a Trip Alarm and LED.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 8200-201 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8200-201

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
Woodward ProTech 203 electronic two-out-of-three Overspeed Protection Model 8200-201 with a 24Vdc Input, Lockable Enclosure, and a Trip Alarm and LED.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 8200-201 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8200-201 Technical Specifications

Dimensions W19in x H12.244in x D5.62in
Features Trip Alarm and LED
Input Voltage 24 Vdc
Manual 85205 (F)
Model De-energize-to-Trip
NEMA Rating 4 and 4X for North America
Operating Temperature –13 to +140 °F
Standards IP54 for Europe
Weight Less than 14 lbs

Product Description

The 8200-201 is the 24Vdc input, de-energize-to-trip model offered in Woodward’s ProTech 203 Overspeed Protection series. Prime mover speed is sampled every 5ms using three magnetic pickups (MPUs), and three individual speed calculations are performed. Relay output is determined by a hardware two-out-of-three vote based on those calculations.



Error indicator LEDs on the front of the module make it easy to quickly catch improper operations, such as a tripped speed-sensing unit, a failed MPU, or errors in any individual unit’s CPU.



Each speed-sensing unit in model 8200-201 has its own power supply, touchpad, and LCD display. It’s through these three touchpads that each unit is separately programmed. The three units can be put into monitor mode or program mode, which is accessed through a single key lock for all three units. This feature acts as a convenient safety measure against unauthorized changes.



Woodward recommends testing the overspeed of each of the three speed-sensing units of model 8200-200 weekly. To reduce downtime, the units are designed to be tested one at a time, keeping the other two units in complete control during testing.

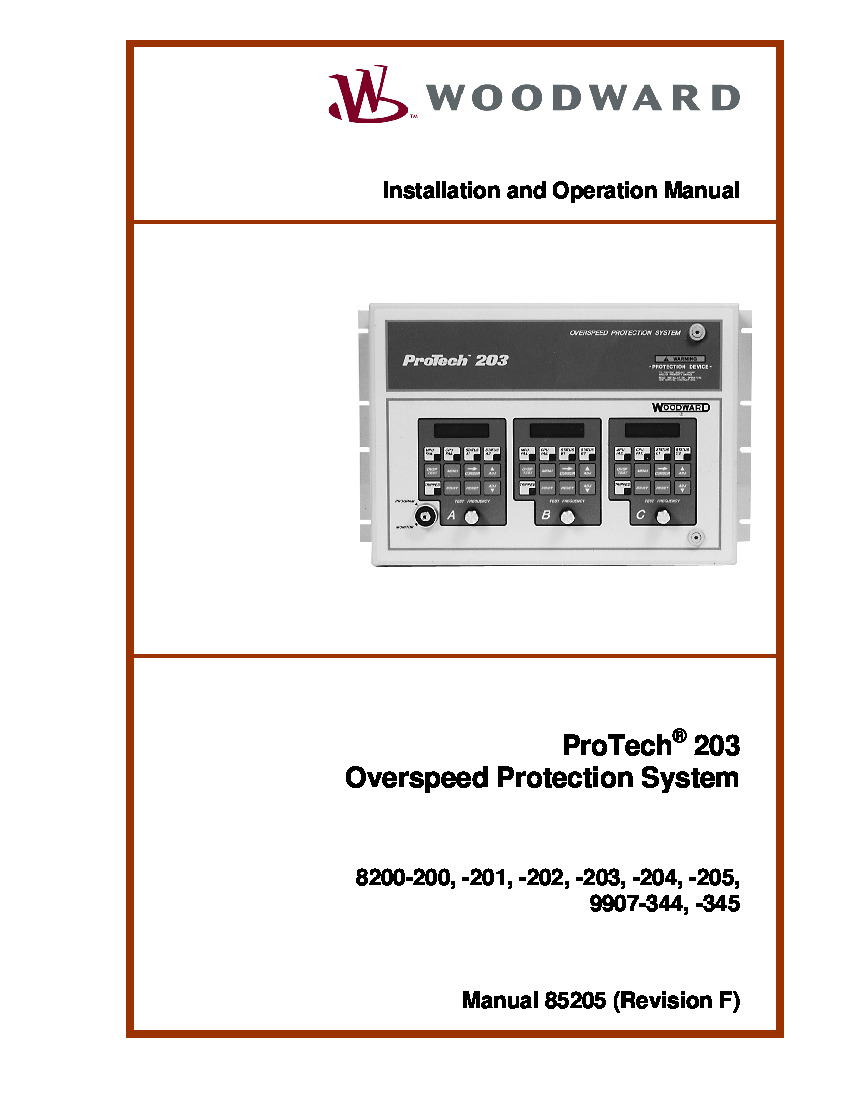

Woodward ProTech 203 Overspeed Protection System Installation and Operation Manual 85205 (F) is available online. Please consult the manual for additional information on model 8200-201, including wiring and general installation instructions.
