9905-863

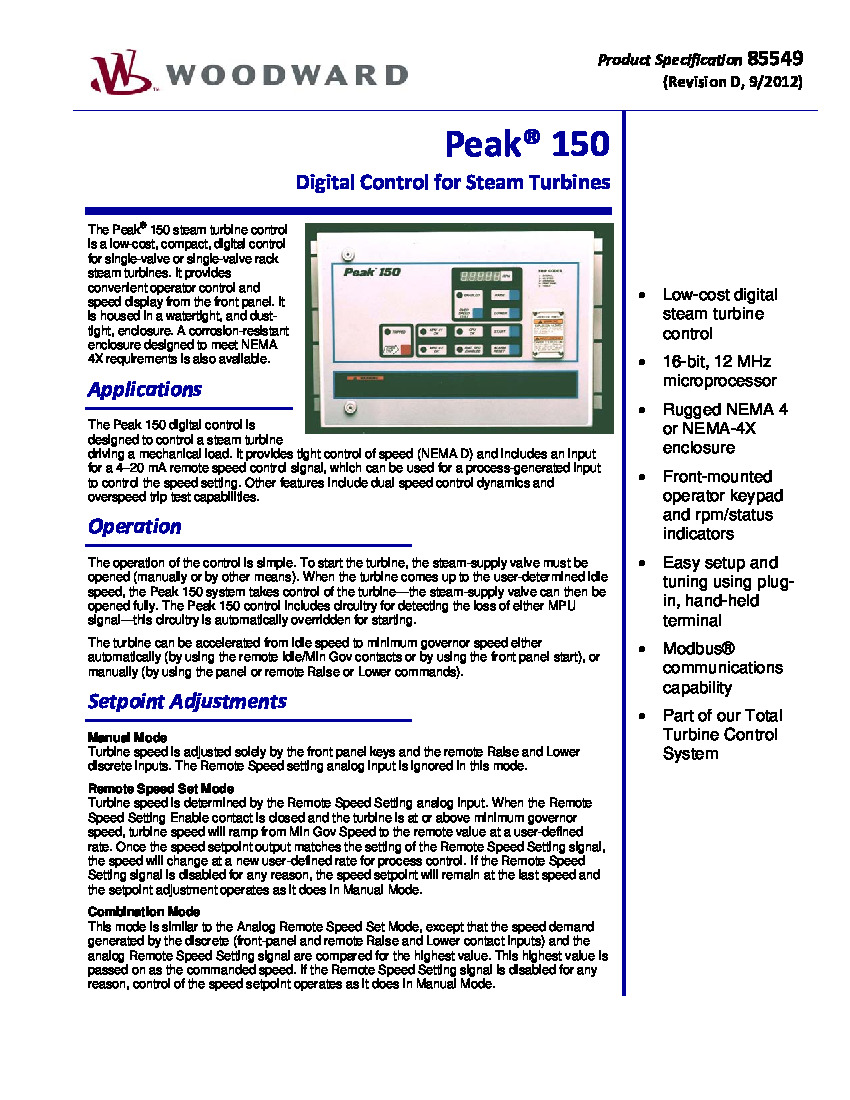

Product Description

General

The Woodward Peak 150 9905-863 is a steam turbine digital control. This unit uses 24VDC of input voltage. Additionally, it is housed in a NEMA 4X enclosure, which allows the 9905-863 to operate with efficiency and longevity even in corrosive areas. It is also water-tight and dust-tight to prevent particles from a harsh industrial environment from interfering with the system.

Inputs/Outputs & Front Panel

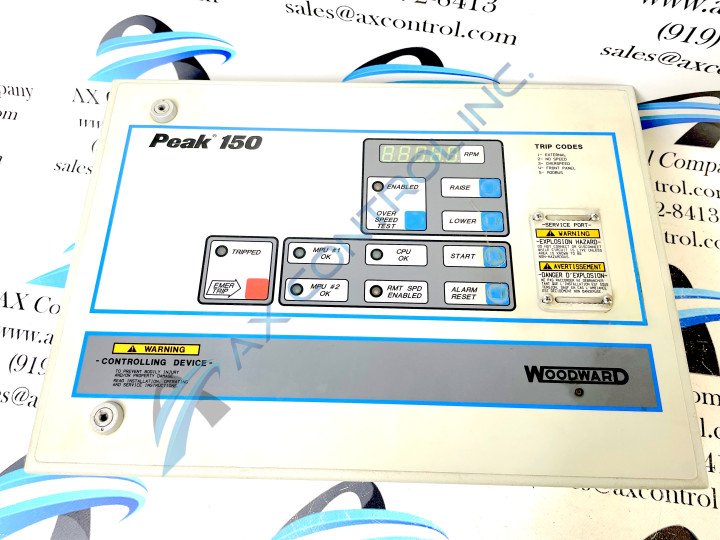

The 9905-863 has a host of input/output features including 2 magnetic pickup inputs, an analog input, 8 discrete inputs, 2 analog outputs, an actuator output, and 4 relay outputs (2 dedicated, 2 configurable). Additionally the 9905-863 has 6 keypad switches and 6 LED indicators on the front panel for easy readability and interaction with the system. The 6 switches include the functions of start, raise/lower speed, emergency trip, alarm reset, and overspeed test. The 6 LEDs display the statuses of the CPU, MPUs, remote speed setting signal, overspeed test, and shutdown.

Miscellaneous Specifications

The 9905-863 has a maximum power consumption of 38W when in use. This unit is CSA Listed (Class I, Division 2, Groups A, B, C, & D) with regards to North American regulatory compliance. The Woodward technical manual number to find more information about this part/series is 85565. The recommended operating temperature range of this model is -25 to 60 degrees Celsius, and the recommended storage temperature range is -40 to 85 degrees Celsius.
