Unit 5501-431 from Woodward's NetCon 100 mA 2ch Actuator Controllers with a 200 kΩ Input Impedance of Feedback Circuit

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 5501-431 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5501-431
  • SKU: 5501431WO
  • Manufacturer: Woodward
  • Series: NetCon Actuator Controller

5501-431

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
Unit 5501-431 from Woodward's NetCon 100 mA 2ch Actuator Controllers with a 200 kΩ Input Impedance of Feedback Circuit

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 5501-431 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5501-431
  • SKU: 5501431WO
  • Manufacturer: Woodward
  • Series: NetCon Actuator Controller

5501-431 Technical Specifications

Current Read back Tolerance 5% of full scale
Dimensions 261 x 248 x 26 mm
Dither Current 25 Hz, 25% duty cycle, tunable amplitude
Driver Version 100 mA
Input Impedance of Feedback Circuit 200 kOhms
Manufacturer Woodward
Output Current Tolerance 1% of full scale
Position Drift 150 ppm/°C
Weight Less than 900 grams

Product Description

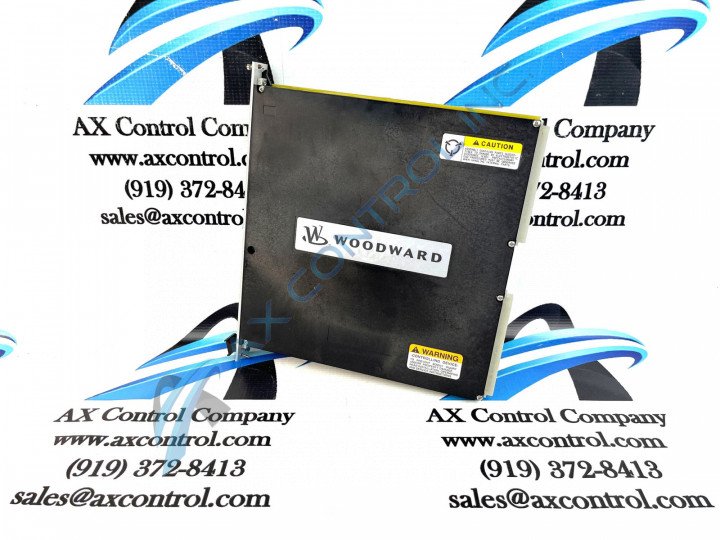

Manufactured by Woodward and released as part of their NetCon Controller Series, the 5501-431 is a 2CH Actuator Control Module (100mA Version). There are several versions available in this series, and the model part numbers indicate the maximum output current capability of the module. Each channel of this two-channel model controls a proportional or integrating, pneumatic or hydromechanical actuator.

The 5501-431 measures 261 x 248 x 26 mm and has an Output Current Tolerance of 1% of full scale. It has a power requirement rating of +5 V @ 0.5 A, +24 V @ 1 A and a position accuracy rating of 0.25% of full-scale @ 25 °C. This position accuracy rating does not include transducer error.

Up to two position feedback devices (LVDT, RVDT) may be used on each actuator channel on the 5501-431. This module has several fault detection features, including alarms for errors related to excitation, feedback, and drivers. Position errors, logic power, microcontroller activity, and the CPU module are also monitored.

The 5501-431 has a red fault LED, used to indicate faults in the status of the unit. In the event the controller is not communicating with the CPU module, a solid LED with be visible. If the LED is flashing, it is an indication of an internal problem, and the module should be replaced.

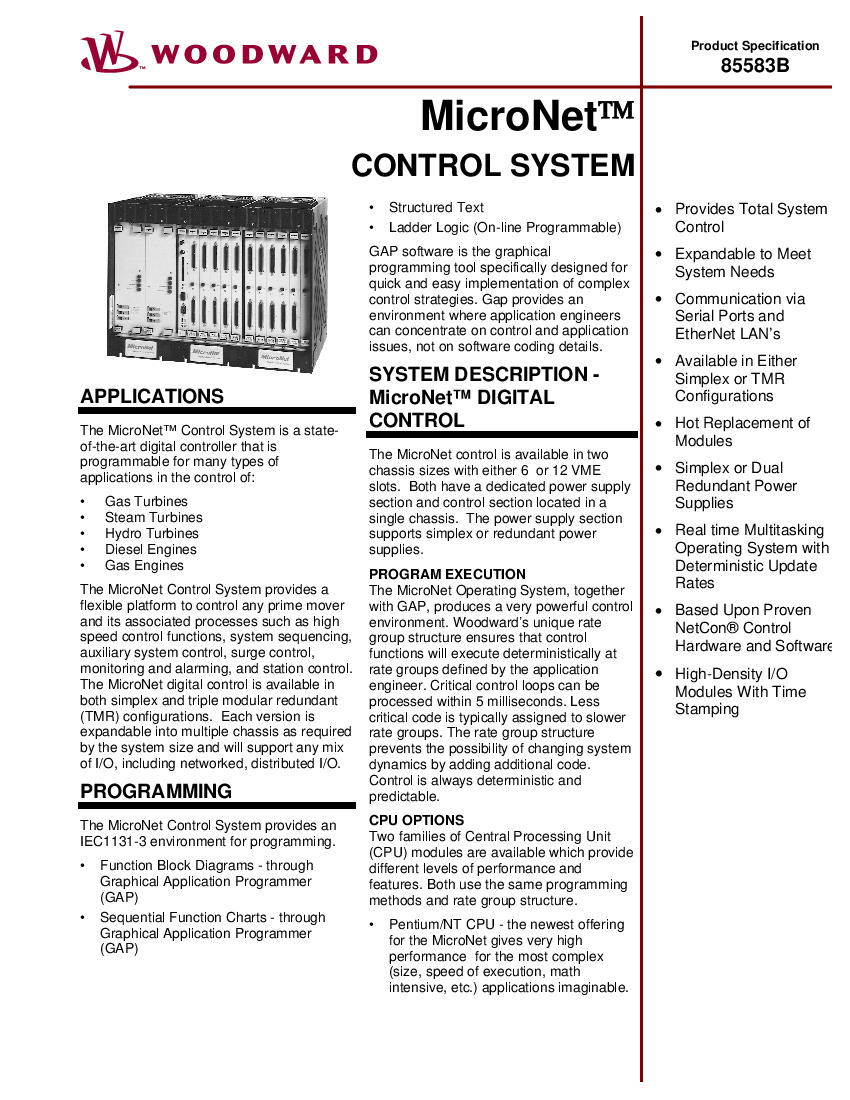

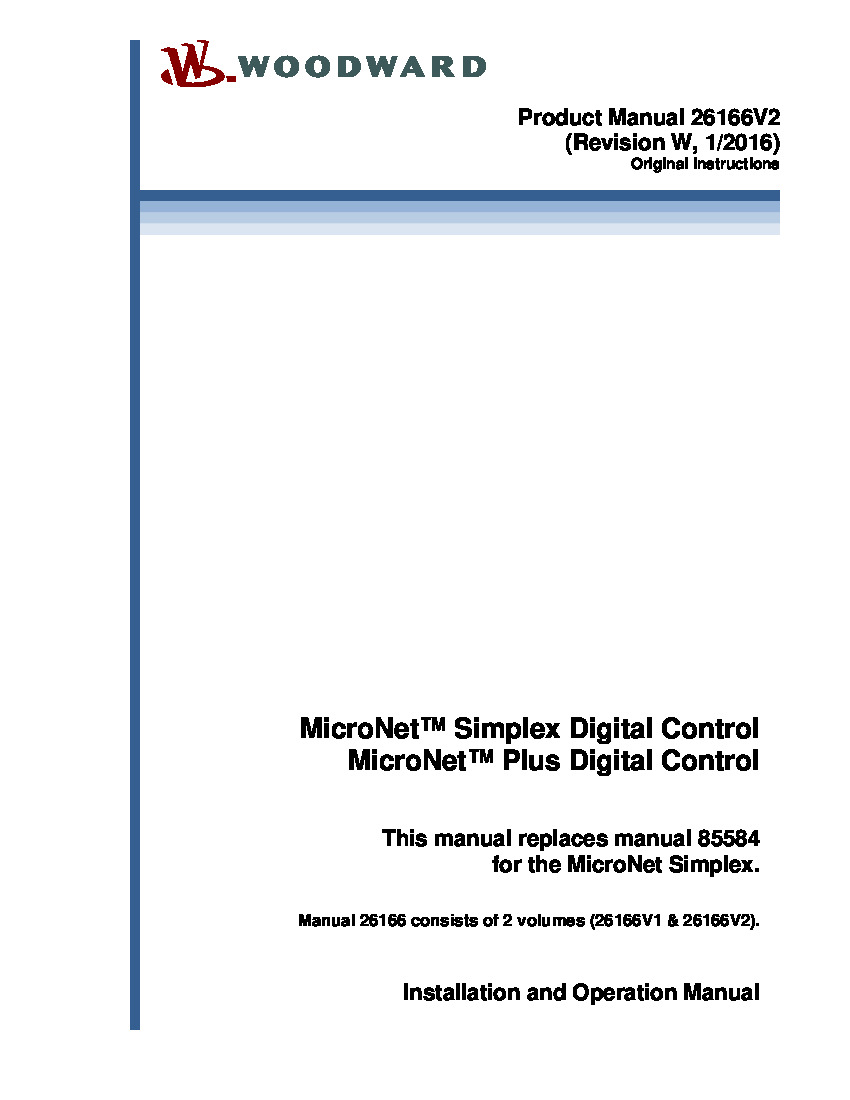

Information on the 5501-431 Actuator Control Module (100mA Version), including specs and installation instructions (including complete field-wiring information), can be found online in the MicroNet Simplex & MicroNet Plus Manual 26166V2
