Woodward NetCon (predecessor for MultiNet) Unit 5501-430. 2ch Proportional or Integrating Actuator Controller | 50mA Version.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 5501-430 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

5501-430

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
Woodward NetCon (predecessor for MultiNet) Unit 5501-430. 2ch Proportional or Integrating Actuator Controller | 50mA Version.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 5501-430 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

5501-430 Technical Specifications

Driver Version +-60 mA max
External Dimensions 261 mm x 248 mm x 26 mm
LED Red Fault Indicator
Manufacturer Woodward
Model Number NetCon 5501-430
Position Accuracy 0.25% of full-scale @ 25 °C
Power Requirements +5 V @ 0.5 A, +24 V @ 1 A
Weight 879 grams

Product Description

This Actuator Controller Module was manufactured by Woodward and released as part of their NetCon Controller Series. There are several versions available in this series, and the model part numbers indicate the maximum output current capability of the module. The 5501-430 is the 50mA Version of the 2CH Actuator Control Modules in this NetCon series.

The power requirements of the 5501-430 are rated at +5 V @ 0.5 A, +24 V @ 1 A, and the module has a position accuracy rating of 0.25% of full-scale @ 25 °C. It is connected to the motherboard when it is secured into a card guide in the control’s chassis. To disengage the motherboard connectors, the module can be pulled out using two handles, located at the top and bottom. It is important to note that the 5501-430 requires a MicroNet low-density discrete (gray) cable and analog (black) cables should not be used.

With the 5501-430, up to two position feedback devices (LVDT, RVDT) may be used on each actuator channel. This module has several fault detection features, including alarms related to excitation, feedback, and driver errors. Position errors, logic power, microcontroller activity, and the CPU module are also monitored.

There is a red LED on the 5501-430, used to indicate faults in the status of the unit and enable efficient troubleshooting. In the event the controller is not communicating with the CPU module, a solid LED with be visible. If the LED is flashing, it is an indication of an internal problem, and the module should be replaced.

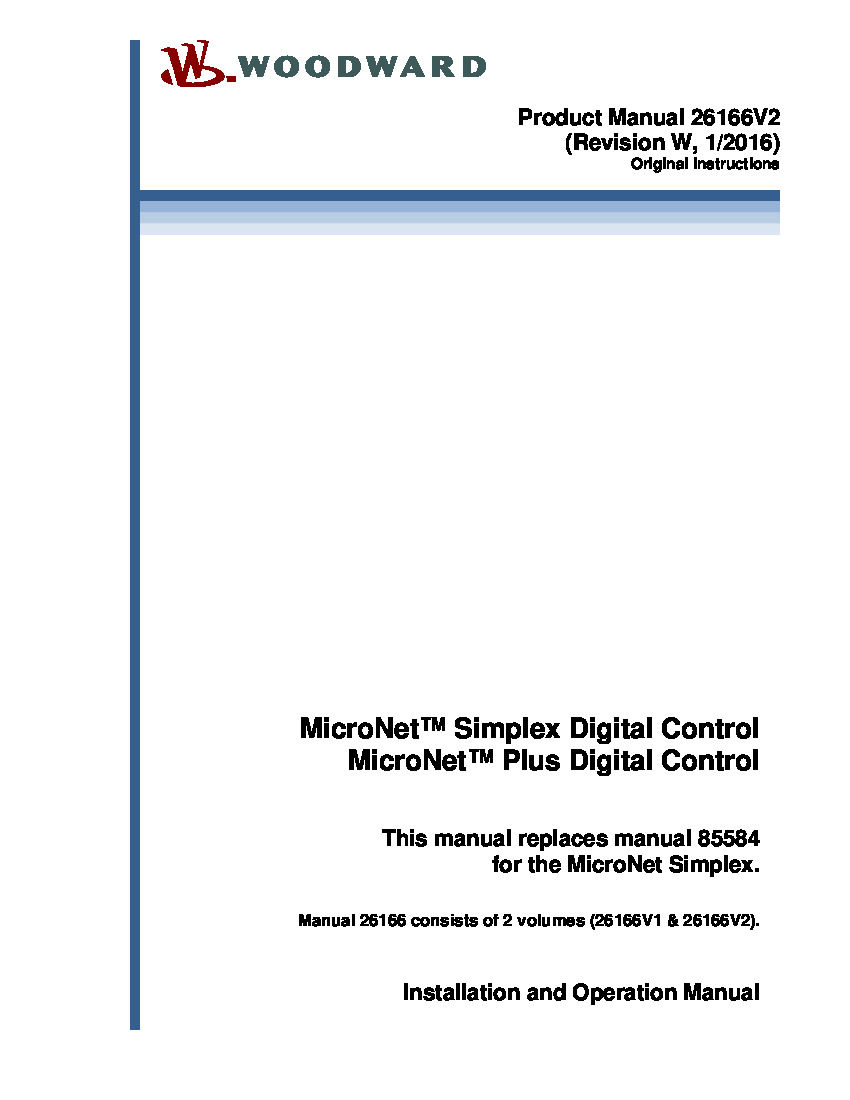

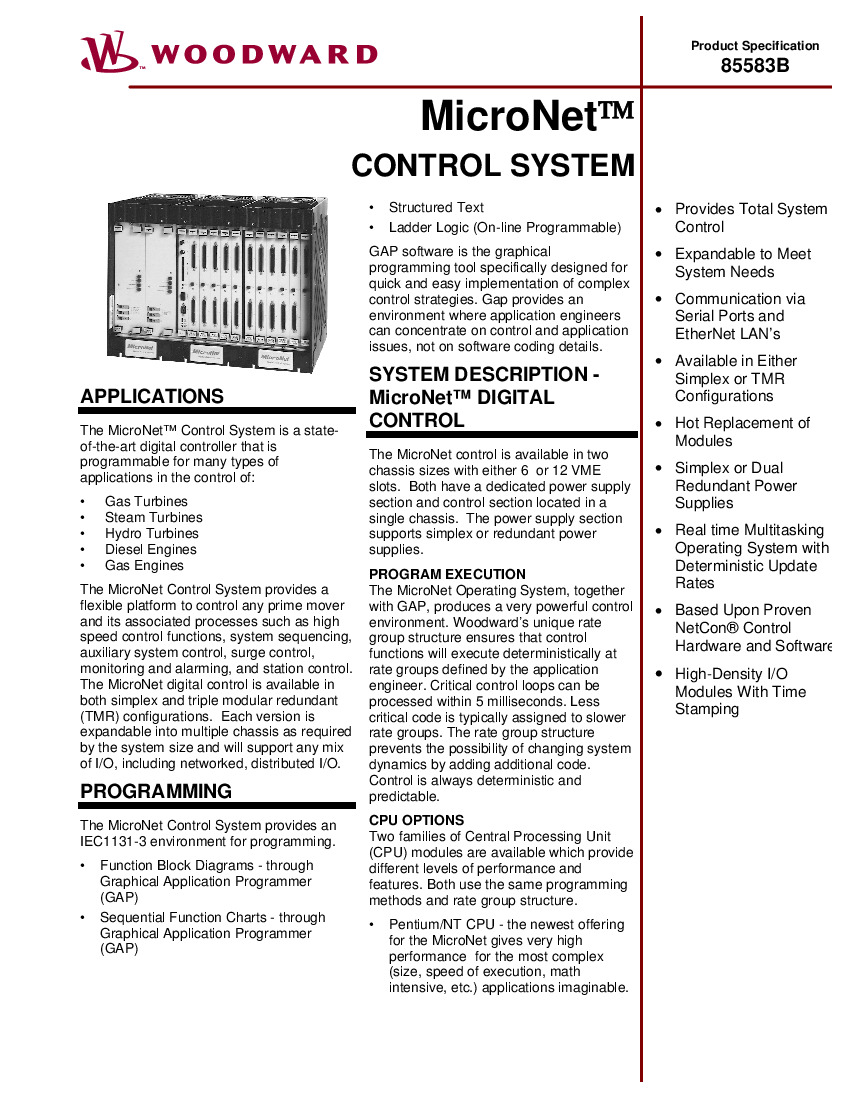

Information on the 5501-430 Actuator Control Module (50mA Version), including specs and installation instructions (including complete field-wiring information), can be found online in the MicroNet Simplex & MicroNet Plus Manual 26166V2.
