Model 5501-428 2CH Actuator Controller (10mA Version) from Woodward Series of NetCon Controllers with programmable error thresholds

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a 5501-428 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5501-428
  • SKU: 5501428WO
  • Manufacturer: Woodward
  • Series: NetCon Actuator Controller

5501-428

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
Model 5501-428 2CH Actuator Controller (10mA Version) from Woodward Series of NetCon Controllers with programmable error thresholds

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a 5501-428 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5501-428
  • SKU: 5501428WO
  • Manufacturer: Woodward
  • Series: NetCon Actuator Controller

5501-428 Technical Specifications

Dimensions 10.25 x 9.75 x 1 in
Dither Current 25 Hz, 25% duty cycle, tunable amplitude
Indicators Red Fault LED
Manufacturer Woodward
Model Number 5501-428
Output Current Tolerance ±1% of full scale
Version 10mA
Weight 1lb 15oz

Product Description

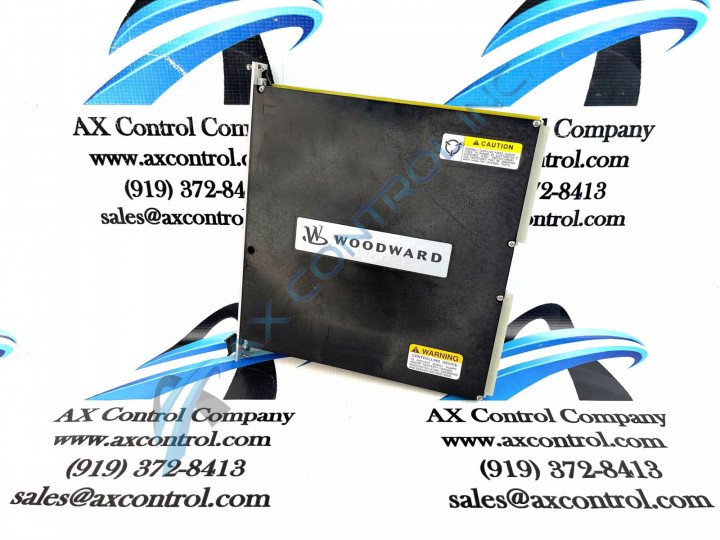

Model 5501-428 is a 2CH Actuator Controller Module. Woodward manufactures this model in their NetCon Controllers Series. This module is a two-channel model, with each channel controlling a proportional or integrating, pneumatic or hydromechanical actuator.

This model is the 10mA version, with power requirements listed at +5 V @ 0.5 A, +24 V @ 1 A. The model part number indicates the maximum output current capability of the module, with several versions available in this series. Model 5501-428 has a Current Output Tolerance of ±1% of full scale, and a Current Read Back Tolerance of ±5% of full scale.

Each actuator channel on the 5501-428 may have one or two position feedback devices (LVDT, RVDT). This module has several fault detection features, including alarms for errors related to feedback, excitation, and drivers.

This module is secured into a card guide in the control’s chassis, where it plugs into the motherboard. To disconnect the motherboard, the module can be pulled out using two handles, located at the bottom and top. It is important to note that the 5501-428 requires a MicroNet low-density discrete (gray) cable and analog (black) cables should not be used.

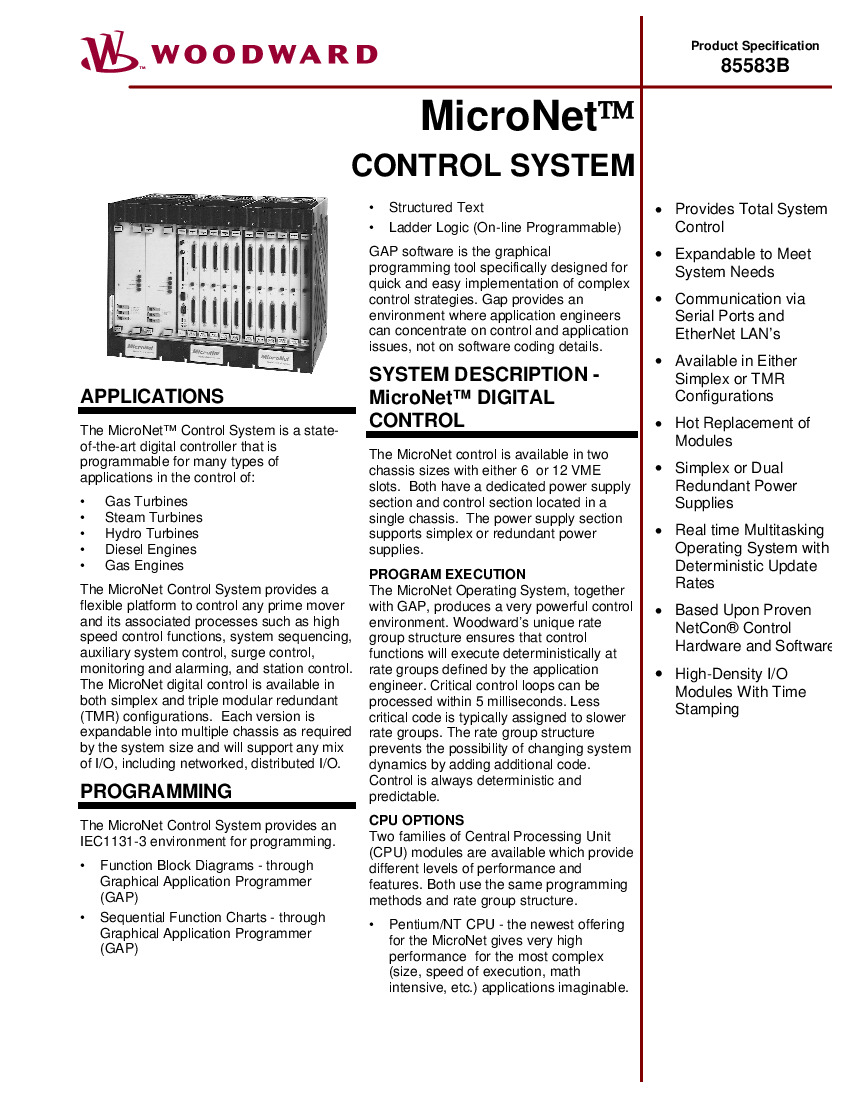

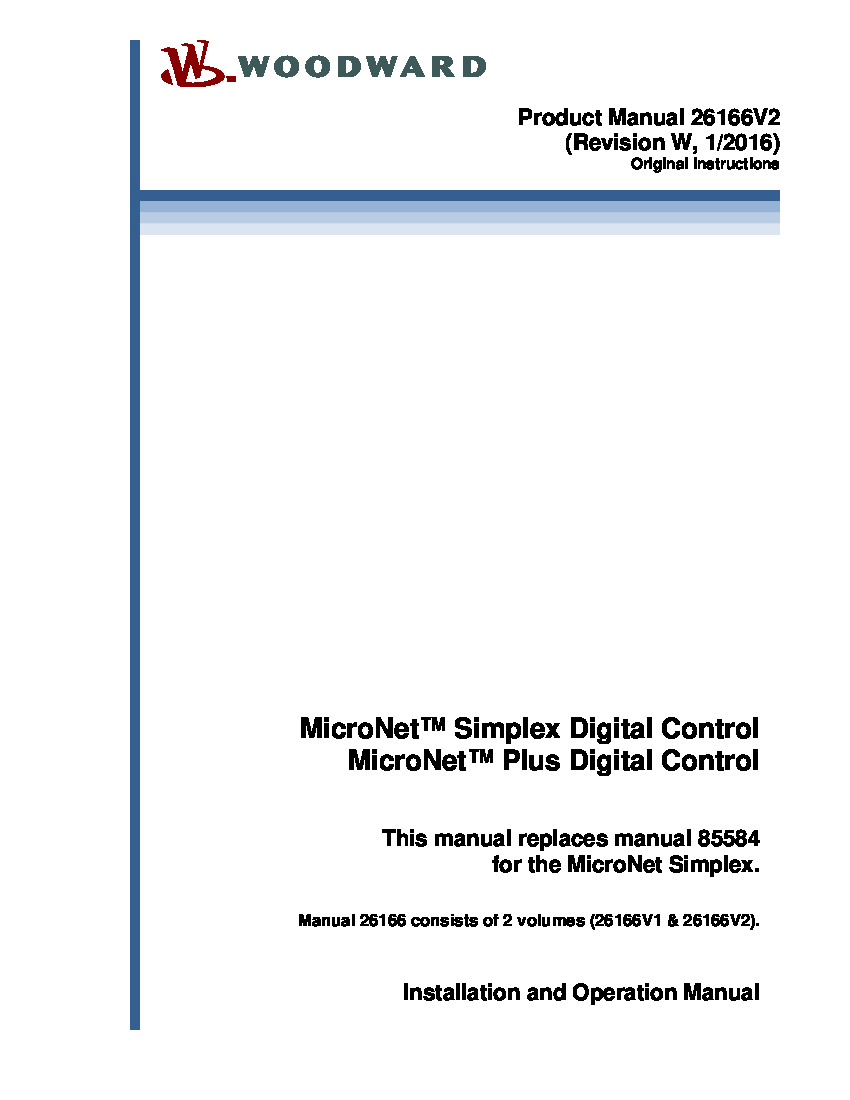

Information on the 5501-428 Actuator Control Module, including specs and installation instructions (including complete field-wiring information), can be found online in the MicroNet Simplex & MicroNet Plus Manual 26166V2.

Reviews For 5501-428
Internal Review

The 5501-428 control system with multiple 2 CH Actuator modules has the potential for a ‘beat’ frequency to be created around 3000 Hz. This signal may create noise within the chassis and has been known to cause fluctuations in low amplitude signals such as RTDs and thermocouples. - AX Control Tech

Repair Services For 5501-428

Type Lead Time Price Action
Repair Service 1-2 weeks $415

Our highly skilled technicians can repair your 5501-428. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
