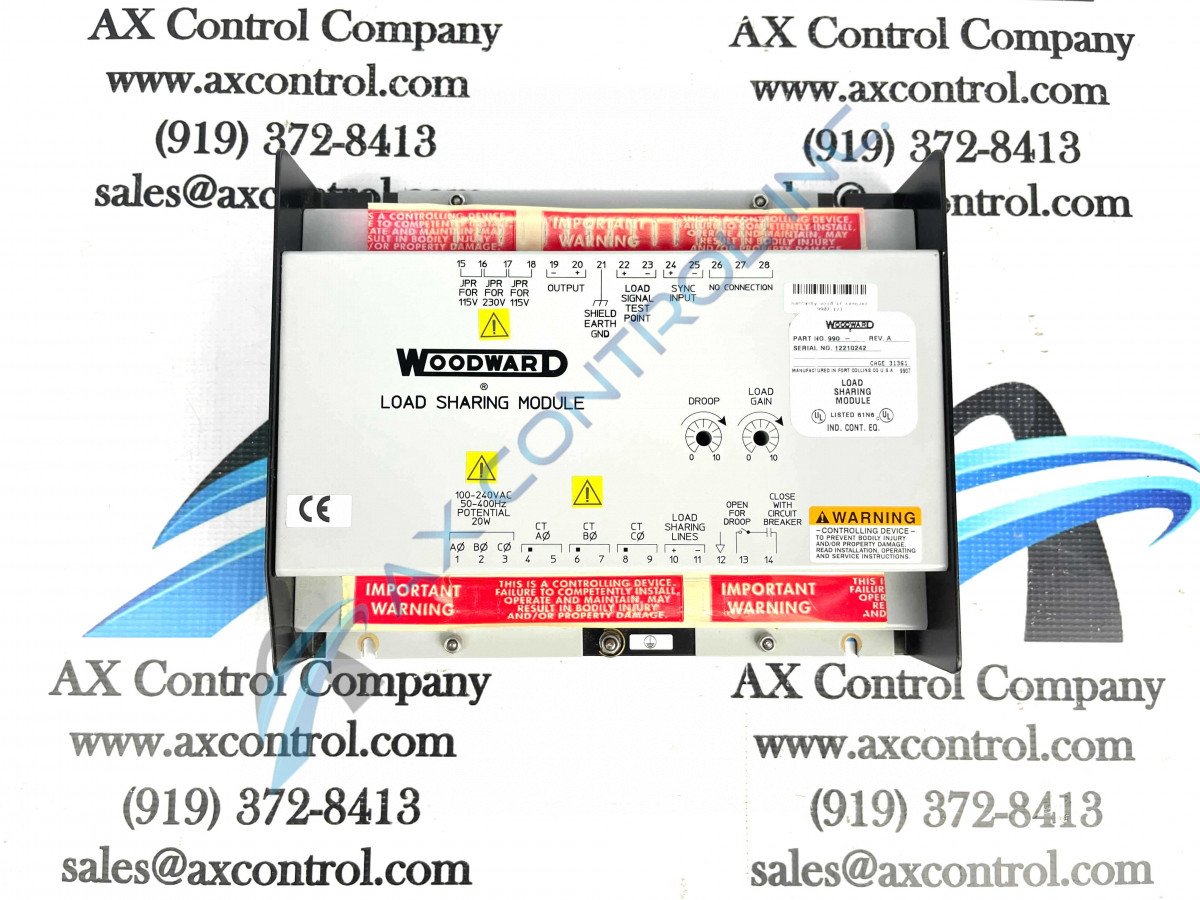

Woodward Load Sharing Module Part 9907-252. This part features +0.5 to +4.5 VDC analog output type and 24 VDC supply voltage. Allows load sharing with Woodward and non-Woodward equipped engines and provides isochronous and droop load sharing.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 9907-252 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

9907-252

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
Woodward Load Sharing Module Part 9907-252. This part features +0.5 to +4.5 VDC analog output type and 24 VDC supply voltage. Allows load sharing with Woodward and non-Woodward equipped engines and provides isochronous and droop load sharing.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 9907-252 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

This unit of the Woodward Inc. manufactured Load Sharing Modules (LSM) is designed to be integrated in with industrial generator engines. These LSM units are outfitted to equip the generators with other Woodward power generating accessories and attachments. The additional component modules consist of the SPM-A and SPM-D synchronizers, an Automatic Generator Loading Control module, and an Automatic Power Transfer and Loading Control module. This unit in particular is the 9907-252 model, and is available from our inventory here at AX Control Inc. AX Control is able to provide industrial automation hardware; equipment and parts, for a great rate and value. All of our devices in stock are from both new, unused manufactured surplus, or lightly used, reconditioned materials. All of our repairs are done by our on-site, local team of technicians. The 9907-252 Load Sharing Module is powered by a supply intake that nominally rests at 24 volts of direct current, but ranges from at least 18 to 32 V/DC. The inputs for this unit are both three-phase PT and CT inputs. The PT inputs range with a voltage of 95 to 130 V/AC, line to line. The CT inputs need between 3 and 7 A Rms at a full load. The adjustments available for this unit to be able to process includes droop and load gain. Droop is able to provide output reduction between no-load and full-load. The Load Gain adjustment alters the load on an individual generator when two or more are paralleled. The environmental specifications that the 9907-252 is designed with gives it an operational temperature range of -40 to 70 degrees C, or -40 to 158 degrees F.
