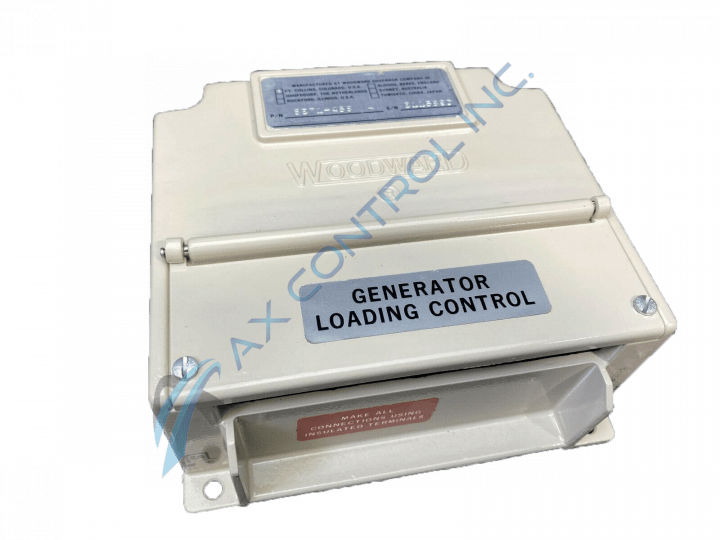

The Part 8271-468 is from Woodward's Generator Loading Control. It uses a 115/230 VAC power supply and has a beige outer shell. This unit is mainly used in commercial applications. When used with Woodward load sharing and speed control systems it allows for adjustment of the electrical load assumed by the generator sets.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a 8271-468 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8271-468
  • SKU: 8271468WO
  • Manufacturer: Woodward
  • Series: Generator Loading Control

8271-468

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
The Part 8271-468 is from Woodward's Generator Loading Control. It uses a 115/230 VAC power supply and has a beige outer shell. This unit is mainly used in commercial applications. When used with Woodward load sharing and speed control systems it allows for adjustment of the electrical load assumed by the generator sets.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a 8271-468 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8271-468
  • SKU: 8271468WO
  • Manufacturer: Woodward
  • Series: Generator Loading Control

8271-468 Technical Specifications

Application Commercial
Color Beige
Compatibility with other Woodward Series EG, 2301,2500, EPG
Input Power 115/230 Vac
Load Sharing/ Generator Ratio 1:15
Manufacturer Woodward Fort Collins CO
Power Output 0-Full

Product Description

The standard commercial functionality of the Generator Loading Control unit 8271-468 is programmed into the unit. This allows the unit to control user-selected adjustments of the electrical load assumed by the Genset. Operating and adjusting the 8271-468 to the desired specifications, depend largely on the unit’s use of a power system.

It can use an isolated power system, or a local system, which is paralleled to an infinite bus. When in an isolated system, the 8271-468 Generator Loading Control is used with each load sharing and speed control. It is connected to the paralleled lines from both of them and can detect the generator’s load. This unit’s output is designed to bias the line voltage to assume control over a fraction of the total system load. Twelve wire terminals are appropriately labeled by the manufacturer for their usage. If paralleling to an infinite bus, measure the voltage at the load signal test jacks of the Generator Loading Control while the unit is fully loaded.

In isochronous paralleling applications, the Generator Loading Control part number 8271-468 regulates the power while the utility maintains frequency. An advantage of this type of control system over the standard droop operation of paralleling is that on parting from the utility, the now-isolated bus is automatically under isochronous speed control without the operator having to readjust the speed settings.

Reviews For 8271-468
Internal Review

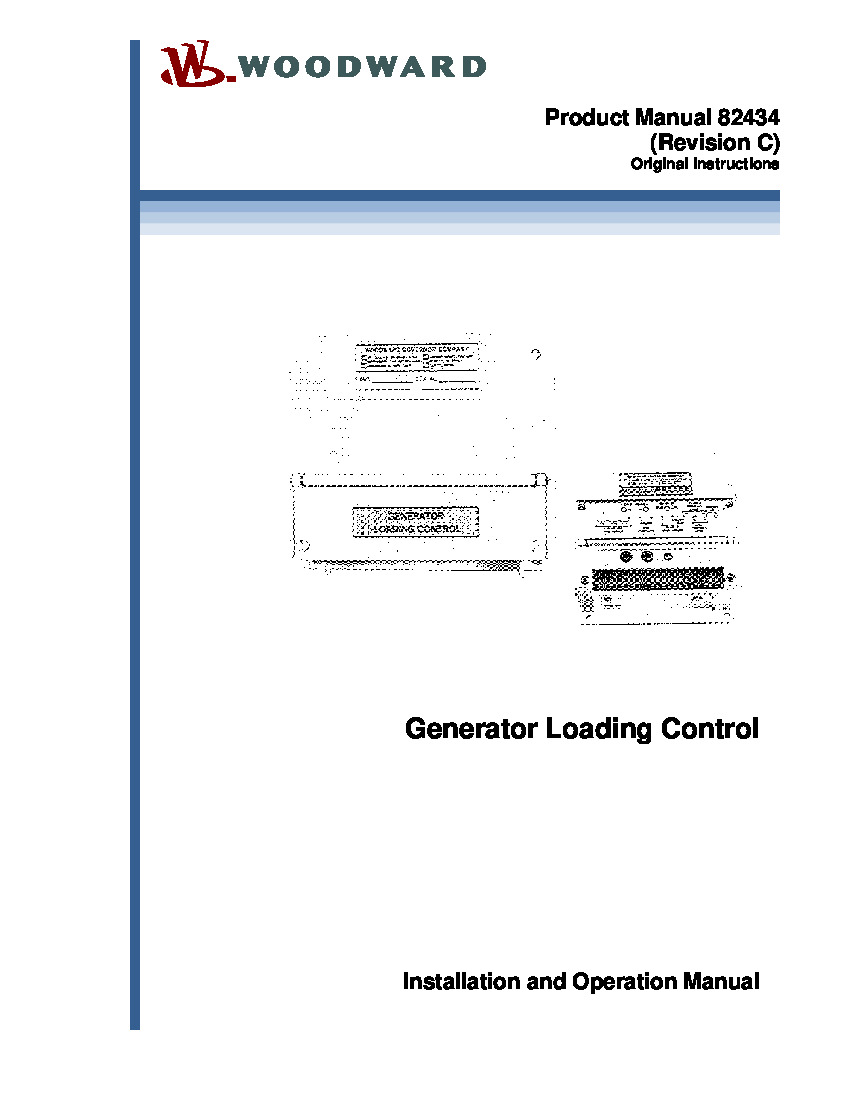

Within the generator controlling series from the Woodward unit, 8271-468 has the most abundant market availability compared to the other parts. If you have to reinstall this unit consult a trained professional as well as the manufactures manual 82434. -AX Control INC. Tech Team

Repair Services For 8271-468

Type Lead Time Price Action
Repair Service 1-2 weeks $526

Our highly skilled technicians can repair your 8271-468. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
