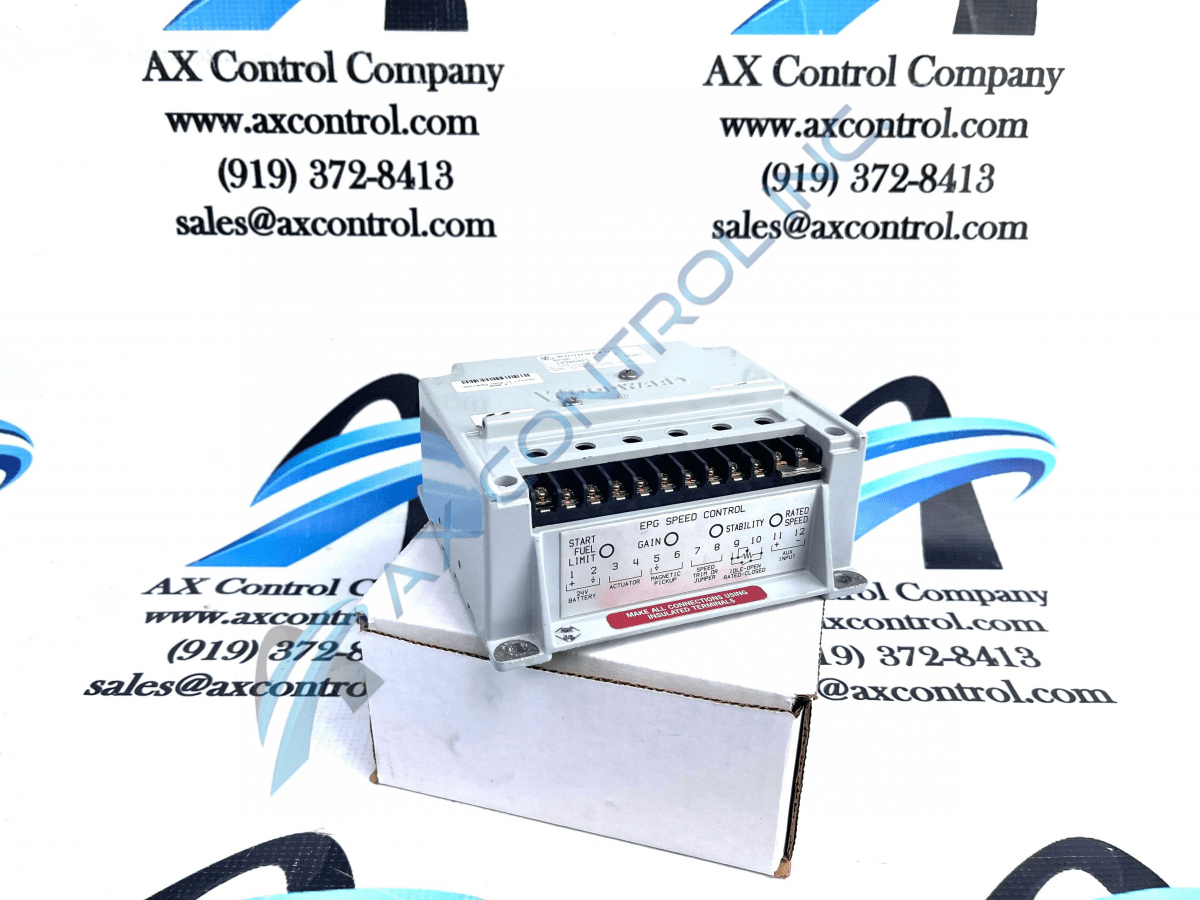

Gasoline/Diesel Turbine Control 8290-069, from Woodward, is considered an Electronically Powered Governor. This model is a single-phase droop control unit. The 8290-069 model's system battery voltage is 24 volts.



Sell Surplus: Have a 8290-069 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8290-069
  • SKU: 8290069WO
  • Manufacturer: Woodward
  • Series: EPG Electrically Powered Governor

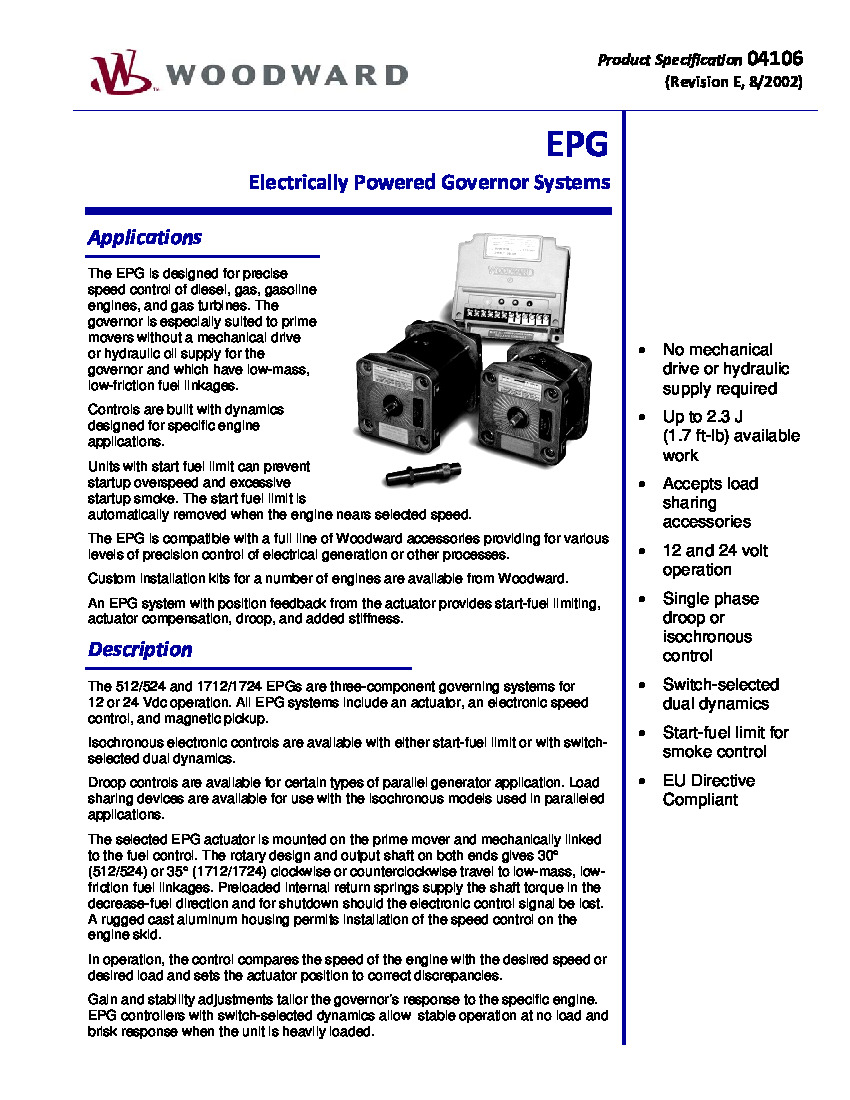

8290-069 Technical Specifications

Part Number 8290-069
Series Electrically Powered Governor, EPG
Manufacturer Woodward Inc, Fort Collins CO
Mounting Location Engine Skid Mountable in Any Attitude
Required Speed Range 750-1500 Hz
Prime Mover Type Diesel or Gas Turbine
Battery Charger Capability minimum 5 A
System Battery Voltage 24 Volt
Power Consumption maximum 95 W

Product Description

Model 8290-069 comes from the Woodward series Electrically Powered Governor and is a single-phase droop controller device compatible with prime movers. This model can be used on gas and diesel-powered engines. This device can be mounted on the prime mover near the battery and actuator. It should be installed in a well-ventilated, protected from the weather and moving devices. It should only be cooled off with natural methods.

Adding this product to a magnetic pickup and actuator will create a complete EPG system that can work on prime movers without a mechanical drive or hydraulic supply.

The 8290-069 model can have an additional optional external capacitor or ramp generator. These two options will allow the user to adjust the time it will take the prime mover to go from an idle to rated speed and vice versa. The ramp generator is most often used to provide a linear ramp with times that are adjustable up to around twenty-five seconds, so long as the model and ramp generator is being used in a typical application.

The speed range of this model is 750 to 1500 Hz. It is only compatible with actuator models 8256-016 and 8256-021. It operates with a system voltage of 24 volts. Product 8290-069 is EU Directive Compliant and can be used with two types of wires. 12 AWG and 14 AWG wires are compatible with this device. This model has been discontinued through Woodward but can still be found through AX Control and other sources.

Frequently Asked Questions about 8290-069

Are there specific ramp generator applications required when operating the 8290-069 model?

Yes! The ramp generator used with the 8290-069 model is only used with 24-volt batteries, which the 8290-069 model is. The ramp generator model number that goes with this model is 8271-909.

It has been mentioned that the 8290-069 model can be used with an external capacitor. What is the function of the external capacitor?

When the external capacitor has been added to the 8290-069 unit and the chosen prime mover will provide an exponential ramp with up to four seconds. The capacitor can rapidly change speed but will slow as the unit reaches its chosen final value. More information on the function of the external capacitor and the 8290-069 model can be found in the 82327 Manual attached above.

If a magnetic pickup is used with this model, how will it be mounted?

When a magnetic pickup is used with an 8290-069 model, it must be mounted through a rigid or housing bracket. When the model is being mounted ensure that the sensed gear used is sensitive to surrounding magnetic fields. When the model has been mounted it must have a clearance between the pickup and the outside diameter of the chosen gear at approximately 1.02 millimeters.

Reviews For 8290-069

Internal Review

While the information on the 8290-069 model is easily found and readily available online, the actual availability for the units themselves is sparse. Due to the limited availability, if anything happens to the model, the user could likely get by repairing it rather than fully replacing it. - AX Control Tech
