Woodward EPG System model number 8440-013 is a 501 model that runs on a 12-volt battery. For proper operation, this model needs a max. of 60 W power consumption. The 8440-013 model needs to be adjusted before the operation, the rated speed potentiometer will need to be adjusted.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 8256-013 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8256-013
  • SKU: 8256013WO
  • Manufacturer: Woodward
  • Series: EPG Electrically Powered Governor

8256-013 Technical Specifications

Actuator Rotation for Increased Value Type CCW
Battery Voltage Measuring Value 12-Volt
Manufacturer Woodward
Model Type 501
Prime Mover Type Diesel/Gas Turbine and Gasoline

Product Description

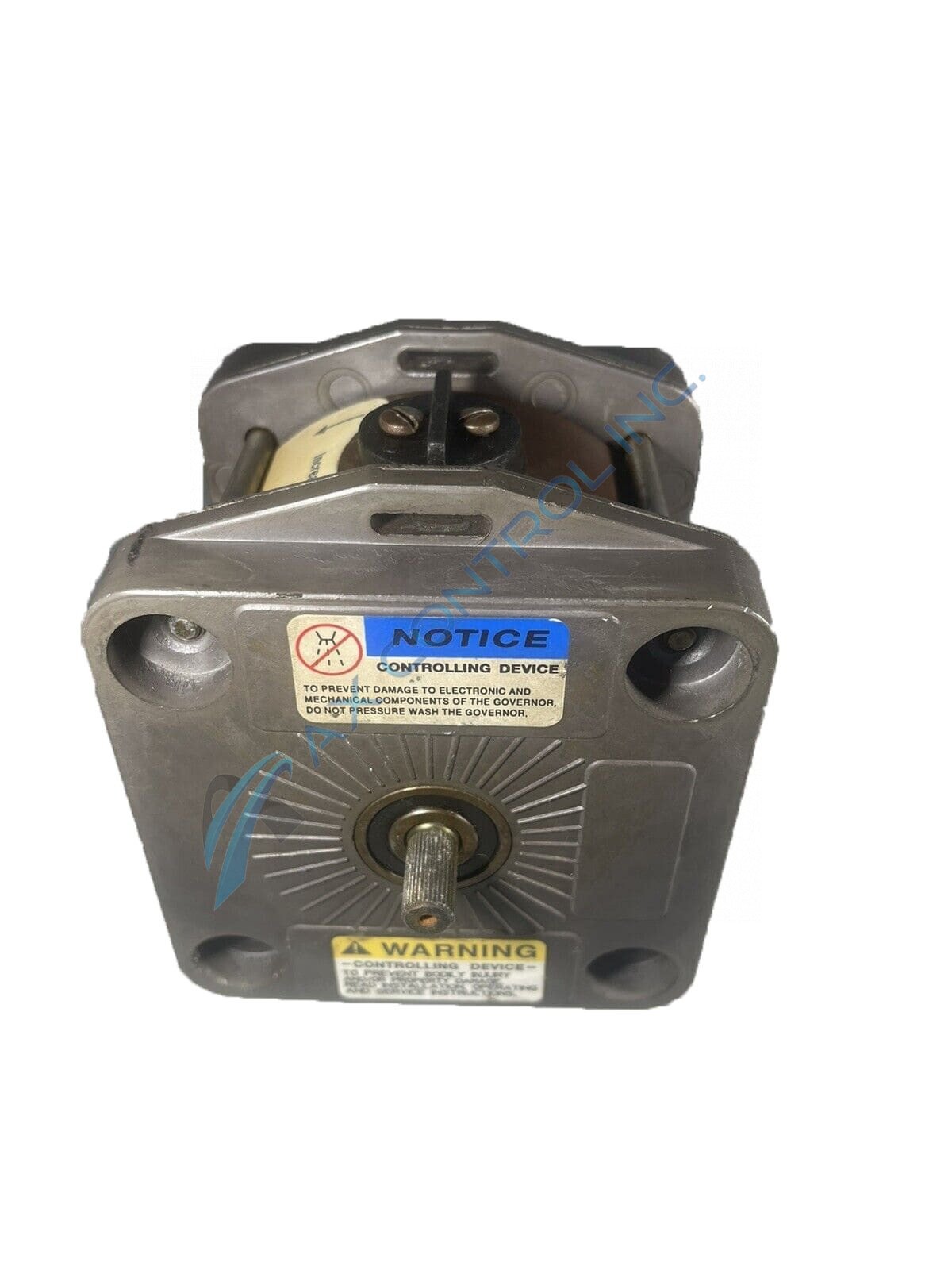

Model 8256-013 is an actuator from Woodward that is best suited for use on prime movers. It is part of Woodward’s Electrically Powered Governor series and can be used with gasoline, diesel, or gas engines. The actuator uses clockwise and counterclockwise rotation, as well as isochronous speed control and droop speed control.

While these models are capable of withstanding high heat, they should be operated in temperatures that range from -40 to 180 degrees Fahrenheit. Heat that is too intense can be damaging to the product and the entire EPG system. Actuators are just one out of three parts of a complete EPG system. Model 8256-013 will consume up to 60 watts of energy, and can be powered by either a 24-volt battery or a 12-volt battery.


The actuator should be connected to the engine’s fuel control with a linear linkage. The product can be mounted directly to the engine it is being operated with, and a corrosive-resistant material makes sure it will last as long as possible. Model 8256-013 weighs less than two pounds and is a compact product. Woodward has discontinued these actuators, but they are available through other sources. AX Control can sell, buy, and repair these models while offering a three-year warranty.

Reviews For 8256-013

Internal Review
(5.0)

The 8256-013 model must have a battery charger that is no less than 7 A, anything lower than this will cause the generator to malfunction. All wiring information can be found in the 82329 product manual. - AX Control Tech Team

Repair Services For 8256-013

Type Lead Time Price Action
Repair Service 1-2 weeks $1783

Our highly skilled technicians can repair your 8256-013. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
