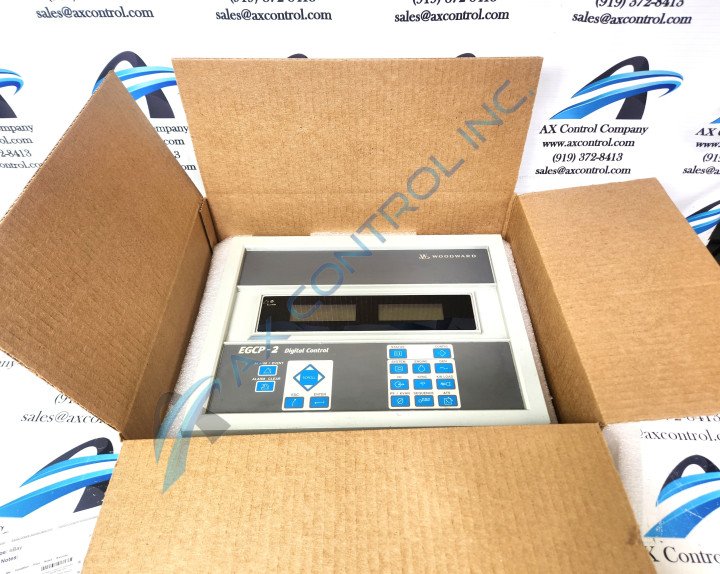

The EGCP-2 series are microprocessor-based complete generator load control and engine management models. 8406-120 from Woodward



3 Year Warranty: Learn More
Sell Surplus: Have a 8406-120 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8406-120
  • SKU: 8406120WO
  • Manufacturer: Woodward
  • Series: Engine Generator Control Package

8406-120 Technical Specifications

Dimensions 11.1 x 14.1 x 2.7 inch
Display Type 2 Backlit LCD\'s
Features Multiple Crank Repeat Set Point
Input Voltage 150–300 Vac PT Input, 9–32 Vdc
Manufacturer Woodward
Operating Temperature –20 to +70 °C
Standards Vibration SV2 5–2000 Hz @ 4 G and RV1 10–2000 Hz @ 0.04 G²/Hz
Storage Temperature –40 to +105 °C

Product Description

The 8406-120 is an EGCP-2 Engine Generator Control Package model manufactured by Woodward. This microprocessor-based unit is suitable only for use in non-hazardous locations and is rated for an operating temperature of –20 to +70 °C (storage temp rating of –40 to +105 °C). This model is designed for use with speed control and an automatic voltage regulator for gas or diesel generator sets up to 30,000 kW. The 8406-120 can be configured to operate utility paralleled or stand-alone. This is a high voltage model designed for small- to medium-sized generator sets

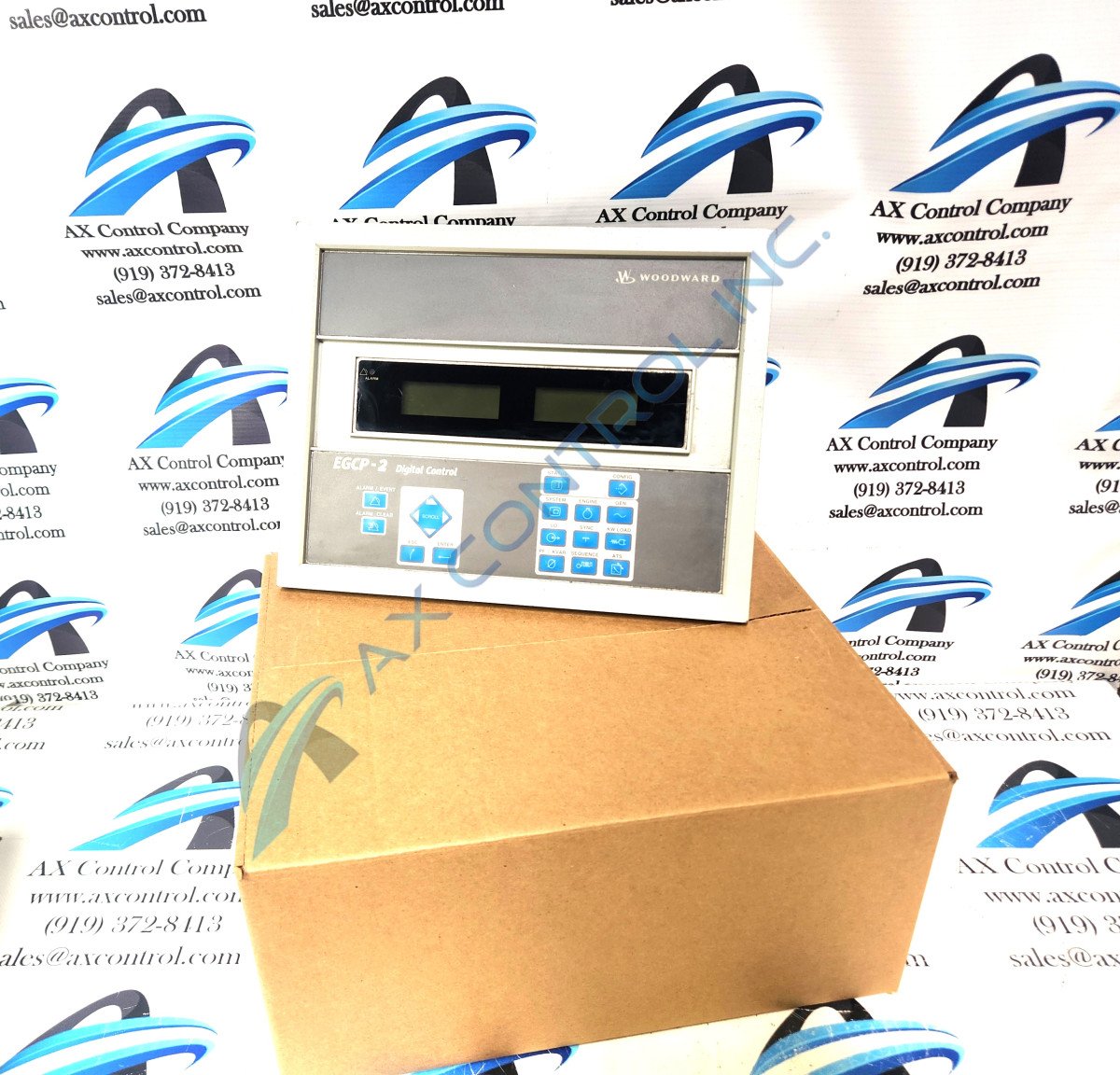

The 8406-120 measures 11.1 x 14.1 x 2.7 inches and features a keypad and two backlit LCD displays on the front panel. This front panel is used to configure site-specific requirements and to monitor the unit operation and alerts. The two screens also enable users to simultaneously monitor and tune related parameters. These screens display eight lines of status information, with the option of four lines of configuration or alarm log information. There is also a red LED on the front panel, used to indicate alarm conditions and shutdown conditions.

Features of the 8406-120 include:

  • Engine Control
  • Gen-Set Synchronizing
  • Real (kW) Load Control
  • Reactive (kVAR) Control
  • Automatic Generator Sequencing (multiple units)
  • Gen-Set Protective Features
  • Engine Protective Features
  • Communication – PC Interface (complete details of the communication features may be found online in Communication Manual 26181)

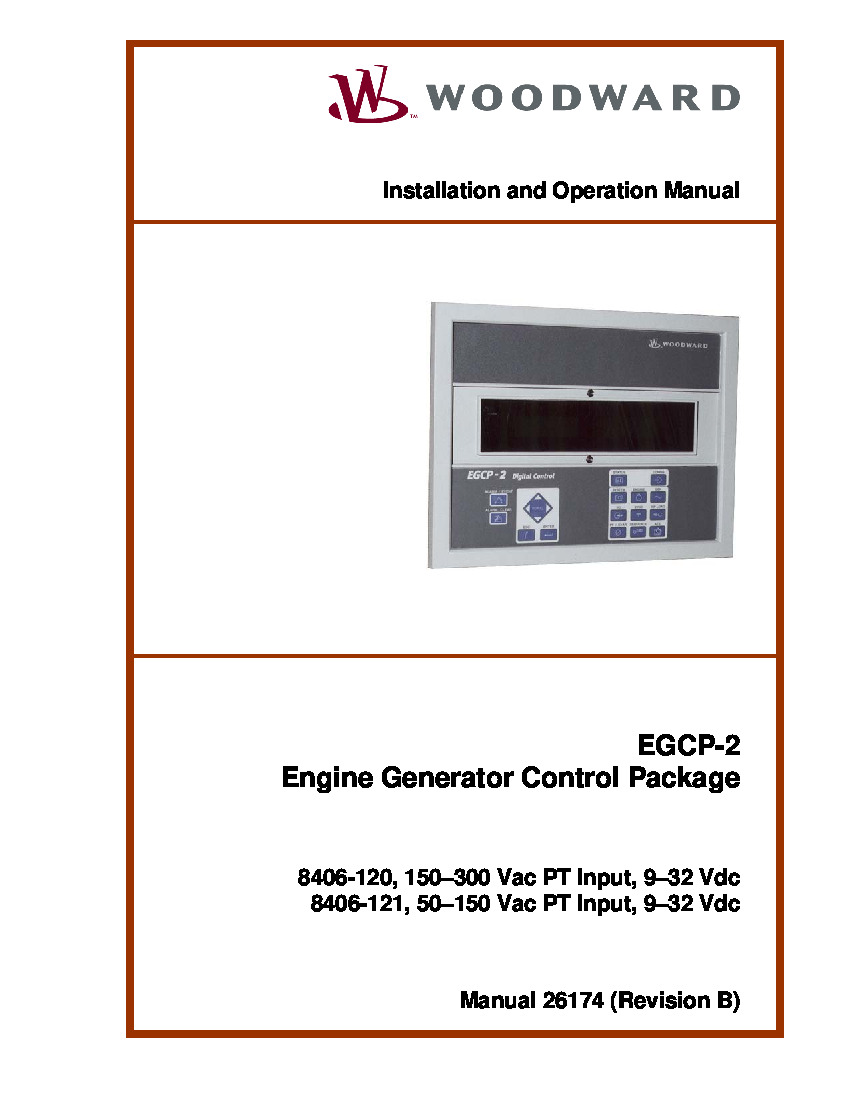

Components needed for installation and remote communication are not shipped with the 8406-120 and must be ordered separately. Complete installation instructions may be found on our site in EGCP-2 Engine Generator Control Package Manual 26174.

Reviews For 8406-120

Internal Review

The 8406-120 Operator Interface is designed for simplicity and redundancy of function in all operating modes. Two backlit Liquid Crystal Display screens are used to display various operating and status information to the operator, as well as for tuning set points. - AX Control Inc. Tech Team

Repair Services For 8406-120

Type Lead Time Price Action
Repair Service 1-2 weeks $2445

Our highly skilled technicians can repair your 8406-120. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
