Woodward model easYgen-3100-5-P2 has a Modbus RTU protocol embedded into the device, this model is also made up of upwards of eighty terminals. This model can also be used with up to thirty-two other genset controllers within the EasyGen 3000 series.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a EasyGen-3100-5-P2 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: EasyGen-3100-5-P2
  • SKU: EasyGen31005P2WO
  • Manufacturer: Woodward
  • Series: EasyGen-3000 Series

EasyGen-3100-5-P2

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
Woodward model easYgen-3100-5-P2 has a Modbus RTU protocol embedded into the device, this model is also made up of upwards of eighty terminals. This model can also be used with up to thirty-two other genset controllers within the EasyGen 3000 series.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a EasyGen-3100-5-P2 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: EasyGen-3100-5-P2
  • SKU: EasyGen31005P2WO
  • Manufacturer: Woodward
  • Series: EasyGen-3000 Series

EasyGen-3100-5-P2 Technical Specifications

Accuracy Class 1
Linear measuring rang 1.25xVrated
Manufacturer Woodward
Measurable Alternator Windings 3p-3w, 3p-4w, 1p-2w, 1p-3w
Power Supply 12/24 Vdc ( 8 to 40 Vdc)
Resolution 11 Bit

Product Description

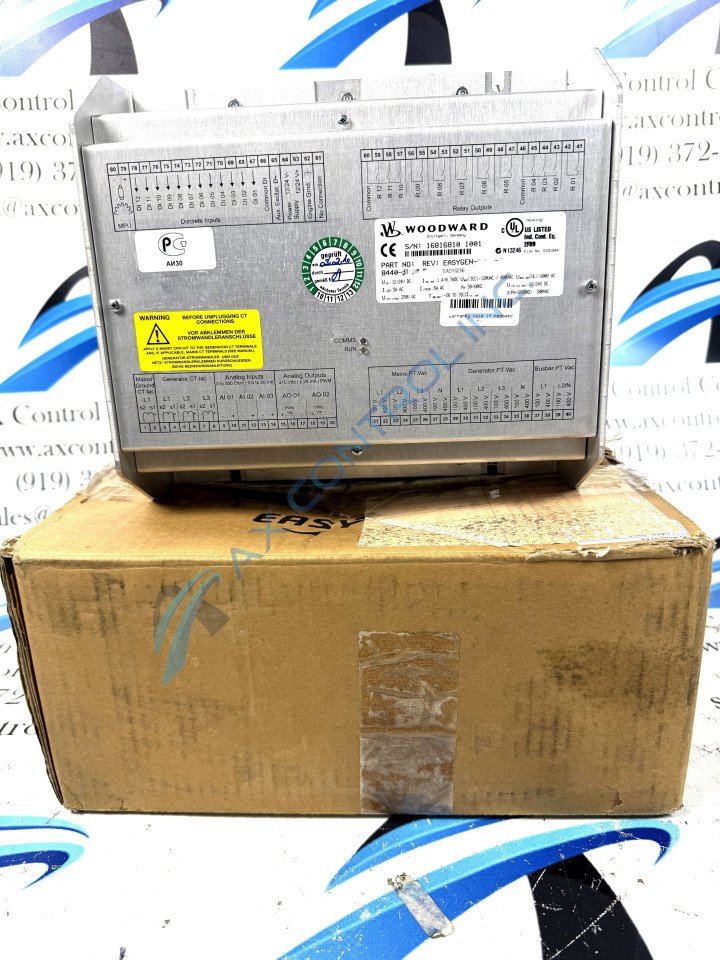

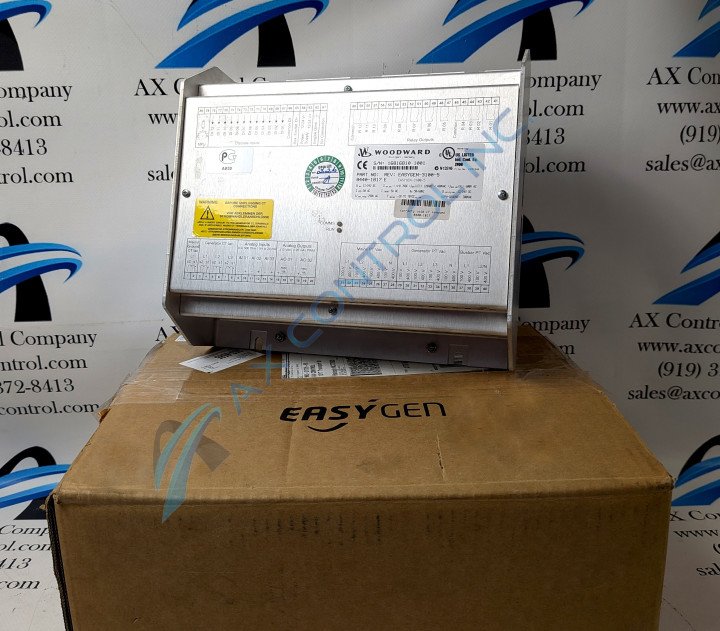

The easYgen-3100-5-P2 genset controller can be used in multi-unit operations to control up to 32 gensets in a range of applications, such as peak shaving, AMF, and cogeneration. It has both Master and Slave control capabilities. easYgen-3100-5-P2 can be used with either simple or complex paralleling. It can also be used in single unit operations.



This Woodward genset controller is a Package 2 (P2) model and includes a few additional features not found in the P1 controllers. easYgen-3100-5-P2 offers engine cylinder temperature protection and has three PID controllers which are freely configurable. It also comes with external analog I/Os (via CANopen). There are sixteen external analog inputs and four external analog outputs on this controller.



In the easYgen 3000 series, 3100 models do not have a built-in display. These units are in sheet metal housing and are designed for the cabinet back mounting. Configuration and control are done via Woodward’s ToolKit software. As indicated by the part number, this controller is the 3100 P2 version with 5A CT inputs. For complete functions and features of this unit, refer to easYgen Manual 37470A and Product Specification sheet 37258P.



EasYgen-3100-5-P2 has a 12/24 VDC (8 to 40 VDC) power supply. Operating temperatures must be kept between -20 to 70 °C ( -4 to 158 °F), though a temperature range of -30 to 80 °C ( -22 to 176 °F) can be tolerated for storage.

  • 8440-1845
  • 8440-1932
Reviews For EasyGen-3100-5-P2
Internal Review

Woodward model easYgen-3100-5-P2 features FlexApp which helps to easily configure four different operating modes. If more information is needed on this controller please find the attached manual. - AX Control Technician
