The 8440-2057 Alternate easYgen-3100-1 Controller

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 8440-2057 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8440-2057
  • SKU: WO-57056
  • Manufacturer: Woodward
  • Series: easYgen-3000 Series

8440-2057 Technical Specifications

Front Panel Dimensions 282W X 216H X 96D mm
Manufacturer Woodward
Max. power consumption per path < 0.15 W
Measuring Frequency 50/60Hz (40 - 85 Hz)
Operation Temp -20 - 70C
Resolution 11 Bit

About the 8440-2057

Genset control unit model 8440-2057 is capable of single or multi-unit operation. In applications where multiple units are required, this genset controller can connect up to 32 units. This includes mains parallel operations and a range of load management applications. Manufactured by Woodward, the 8440-2057 is part of the easYgen-3000 series. Control units in this series are available in a variety of models. The 8440-2057 unit is a 3100 model with the Package 2 (P2) option. The combination of features specific to this easYgen-3000 model are:

  • 1A CT inputs
  • Metal housing (no display, intended for cabinet back mounting)
  • External analog I/Os (via CANopen)
  • Engine cylinder temperature protection
  • PID controllers (3, freely configurable)

Critical 8440-2057 Alternate easYgen-3100-1 Controller Diagnostics

Because easYgen 3100 models such as this one do not have a built-in HMI, the control is managed via PC using ToolKit software. It has the same multi-lingual capabilities and multi-level password protection features as other units in this genset control series. The 8440-2057 control unit supports start/stop logic for both gas and diesel engines. An extensive set of programmable setpoints provide highly customizable protection. Twelve alarm outputs, ten of which are configurable, alert of conditions outside normal operations. This may include conditions related to:

  • Generator load balance
  • Engine speed/frequency mismatch
  • Mains phase shift/rotation field

Frequently Asked Questions about 8440-2057

How many total I/O ports does the 8440-2057 offer?

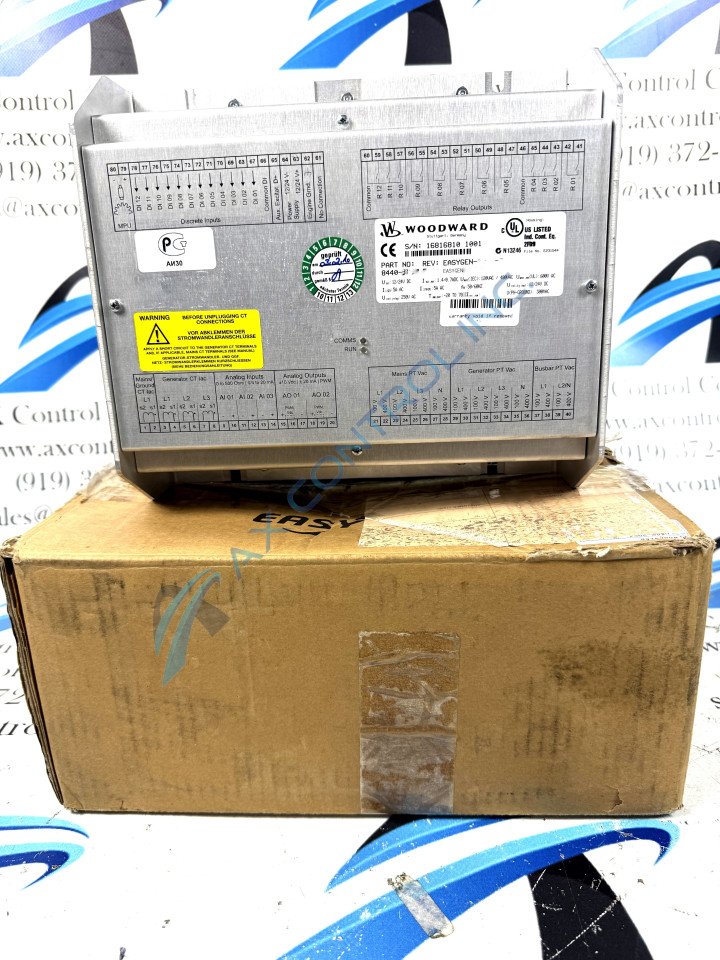

This 8440-2057 Genset Controller Module has two total femaie ports, as pictured just above here.

Does C/T Connection use have any important guidelines for this 8440-2057?

Yes. A bright yellow sticker on the surface of this 8440-2057 Controller is telling of safe C/T connection strategy.

Reviews For 8440-2057

Internal Review
(5.0)

Model number 8440-2057 is one of the last few easYgen-3100-1 models, this model features a configurable frequency/voltage which permits manual control of different breakers. - AX Control Technician

  • EasyGen-3100-1

Repair Services For 8440-2057

Type Lead Time Price Action
Repair Service 1-2 weeks $970

Our highly skilled technicians can repair your 8440-2057. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
