Woodward model 8440-1801 EasyGen300 series Genset Controller. It is powered by consumption of less than or equal to .15 W nominal, battery voltage of 6.5-32 V.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 8440-1801 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8440-1801

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
Woodward model 8440-1801 EasyGen300 series Genset Controller. It is powered by consumption of less than or equal to .15 W nominal, battery voltage of 6.5-32 V.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 8440-1801 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8440-1801 Technical Specifications

Dimensions 158W X 158H X 40D mm
Endurance Vibration 4 G, 30 Hz, 1.5 h
Housing easYpack
Insulation Voltage 1,500 Vdc
Maximum Value (Vmax) 346/600 Vac
Temperature Standards IEC 60068-2-30; IEC 60068-2-2; IEC 60068-2-1
Weight Less than 450 grams

Product Description

The 8440-1801 Woodward Inc EasyGen 300 Genset Controller model is available for purchase at AX Control Inc. This specific model is also known as the EasyGen-350-X model which when it comes to the voltage measuring and the mains it can be used in three-phase three-wire, one-phase three-wire, and one-phase two-wire versions. The control has status LEDs which indicate the operating stage of the control, LED seventeen on the control will indicate that the Genset controller has stopped, if LED twelve is just on and not flashing it indicates that the generator is on and operating properly.

There are many different technical specifications for powering this control, one of them being the maximum power consumption within the control which is typically somewhere in the range of less than .15 W. Another technical specification for this device if you are using a main to measure frequency then the Hz for this main should be in the range of 40.0 to 85.0. The sinusoidal vibration on the control should either be 4 G or 5 to 10 Hz.

When connecting the battery to the control the battery voltage should be in the range of 6.5-32 V and the accuracy of the battery voltage should be one percent. If you are looking at the dimensions of the control the dimensions are 158 mm by 158 mm by 40 mm.

If you are interested in purchasing this control model you can contact our sales department by email at sales@axcontrol.com or by phone at (919) 372-8413.

  • EasyGen-350-X
Reviews For 8440-1801
Internal Review

This model has a voltage measuring range of three-phase three-wire, one-phase three-wire, and one-phase two-wire versions. To determine which phase you should use with your control and engine consult your manual and a certified professional.

Repair Services For 8440-1801

Type Lead Time Price Action
Repair Service 1-2 weeks $1192

Our highly skilled technicians can repair your 8440-1801. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

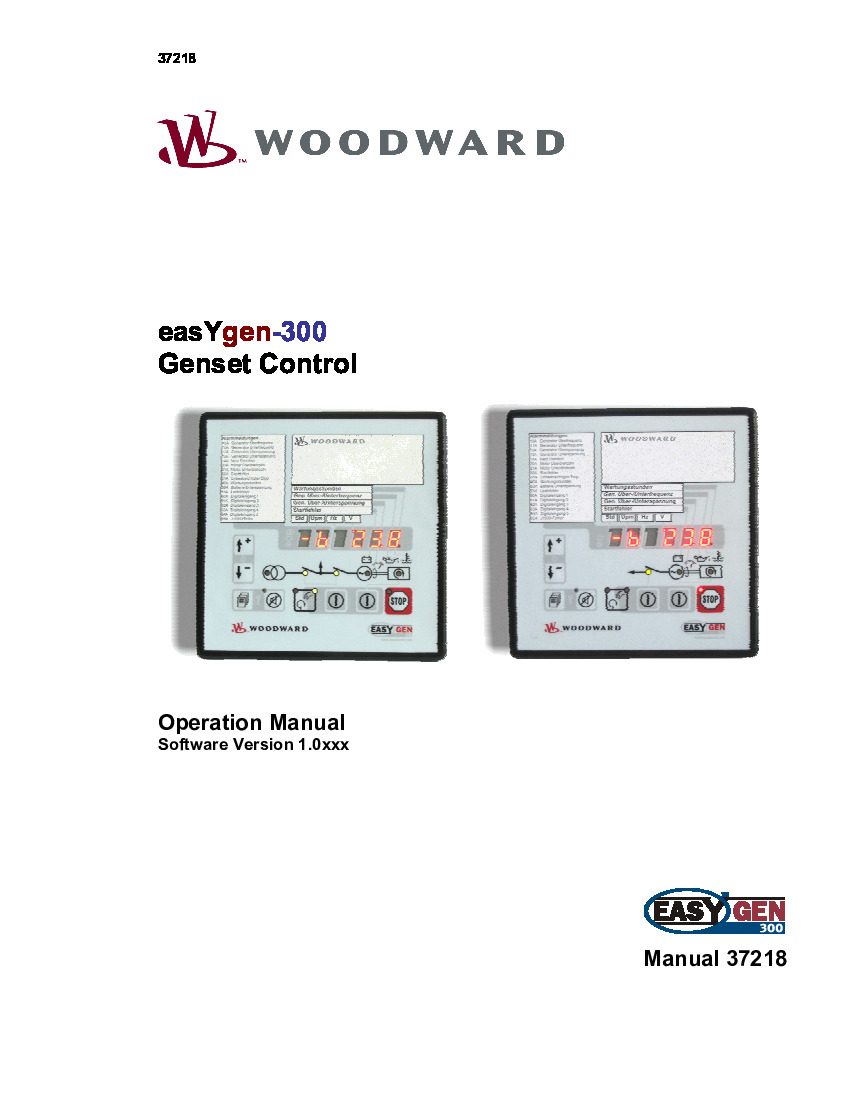

8440-1801 Manuals, White Papers, Data Sheets, and Troubleshooting
