EasyGen-2200-5

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product

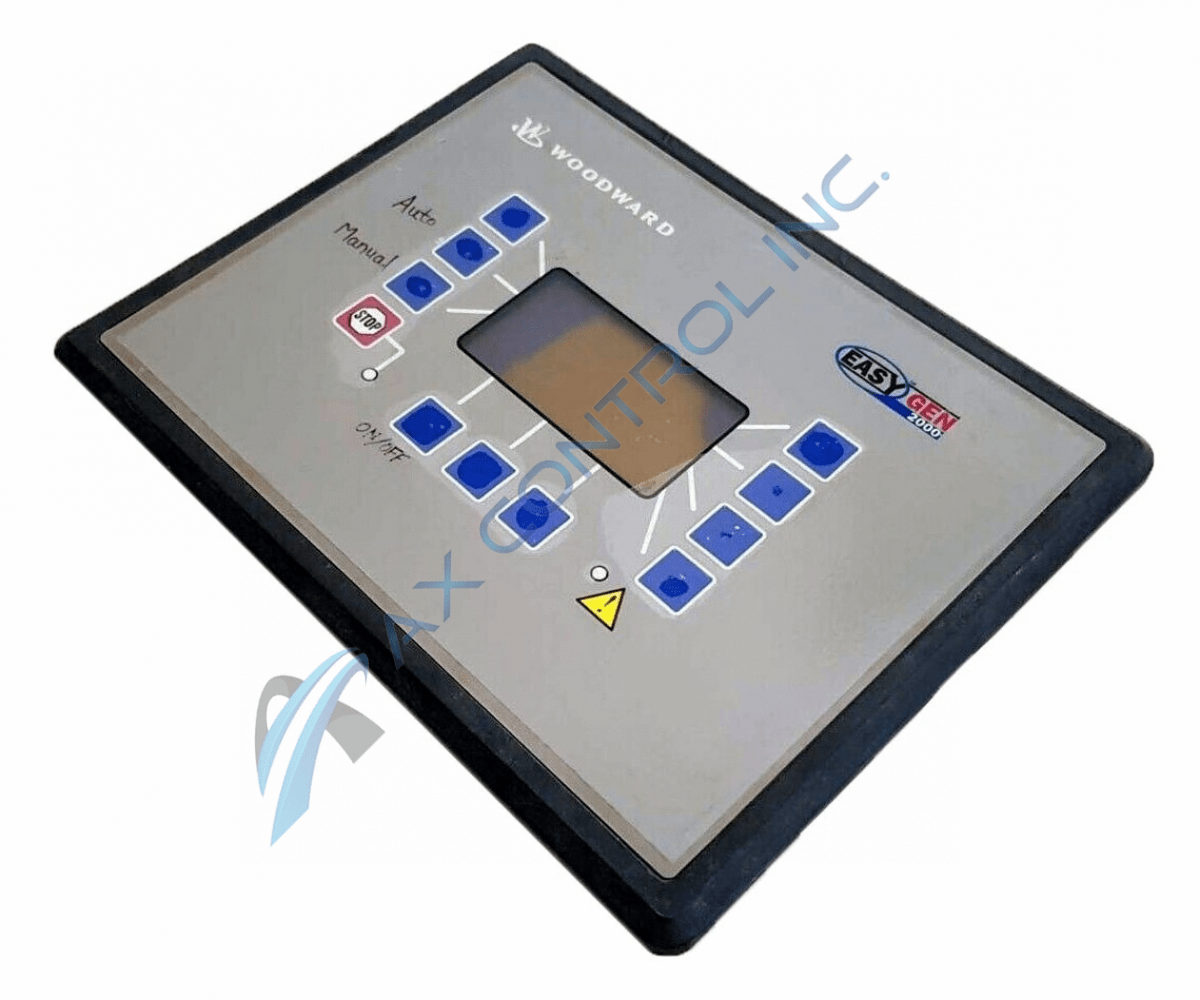

Woodward EasyGen-2200-5 genset controller. 5A CT inputs / front panel mounting with display.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a EasyGen-2200-5 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: EasyGen-2200-5
  • SKU: EasyGen22005WO
  • Manufacturer: Woodward
  • Series: EasyGen-2000 Series

EasyGen-2200-5

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
Woodward EasyGen-2200-5 genset controller. 5A CT inputs / front panel mounting with display.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a EasyGen-2200-5 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: EasyGen-2200-5
  • SKU: EasyGen22005WO
  • Manufacturer: Woodward
  • Series: EasyGen-2000 Series

EasyGen-2200-5 Technical Specifications

Generator Frequency 15.0 to 85.0 Hz
Manufacturer Woodward
Phase Angle -180 to 180°
Real Energy 0-4,200 GWh
Reverse Voltage Protection full supply range
Storage Temperature -30 °C/80 °C

Product Description

The EasyGen-2200-5 is part of the easYgen-2000 series from Woodward.  The EasyGen-2200-5 is designed for generator set (Genset) control for multiple unit operations.  It offers protection/control for load sharing for up to sixteen Gensets in isolated operation (island) or parallel operation of a single unit with a utility.  The FlexApp(™) feature of this product allows configuration of the number of operated breakers: none, GCB (generator circuit breaker), and dual GCB and MCB (miniature circuit breaker.)  The unit also offers Boolean operators and programmable timers to allow modification of control and relay functions.

The EasyGen-2200-5 is comprised of a plastic housing with an HMI display (LC display with softkeys,) an analog output and generator CT terminal, a Mains/generator/busbar PT terminal, a USB/RS-232 service port connector, relay outputs terminals, eight discrete inputs terminals, a CAN bus interface terminal, and MPU inputs.

The EasyGen-2200-5 has various operation modes, including auto, stop, manual, and Load/no-load test modes.  Breaker control includes open-close control, breaker monitoring, phase matching, and slip frequency. The unit offers remote control adjustments of speed, voltage, frequency, power, power factor set points, and reactive power via an interface and the system’s analog/discrete inputs. The unit supports eleven languages and can be configured via its front panel or by PC connection. It has multi-level password protection located on the front panel of the control.

If you have any questions regarding this model and its availability you can contact our sales department by email at sales@axcontrol.com or phone at (919) 371-8413, if you are interested we also offer free and worldwide shipping on this unit.

  • 8440-1855
  • 8440-1857
Reviews For EasyGen-2200-5
Internal Review

This Genset controller is equipped with protection for load sharing for up to 16 other Genset controllers. It has generator circuit breakers as well as mini circuit breakers. Make sure that only certified personnel are operating and installing this control. - AX Control Tech Team

Repair Services For EasyGen-2200-5

Type Lead Time Price Action
Repair Service 1-2 weeks $2404

Our highly skilled technicians can repair your EasyGen-2200-5. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
