9905-712

Product Description

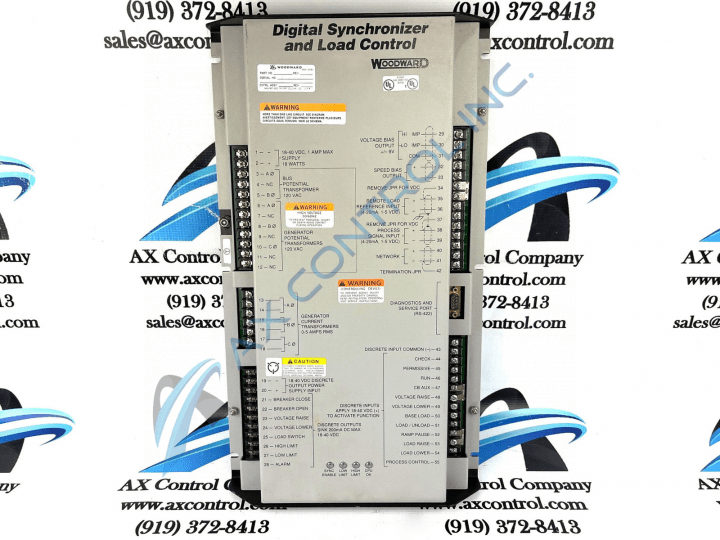

This model is a microprocessor-based DSLC designed for paralleling, synchronizing, loading, and unloading three-phase AC generator sets. Model 9905-712 is capable of power factor control and process control functions, as it is one of the full upgrade level controls in this Woodward series. It is designed for use with a Woodward speed control (or another compatible device) and an automatic voltage regulator. This unit has three-phase true RMS power sensing, ensuring accuracy even in the event of voltage fluctuations and unbalanced phase loading.

Woodward's 9905-712 has a 120/240 Vac and a speed bias of 1-5 Vdc. This WYE PT Configuration unit is rated for operating temperatures from –40 to +70 °C (-40 to 158 F) and storage temperatures from –55 to +105 °C (-67 to 221 F).

Additional environmental specifications for the 9905-712 are:

• Humidity: 95% at 38 °C
• Mechanical shock: US MIL-STD 810C, Method 516.2, Procedures I, II, V
• Electromagnetic susceptibility: ANSI/IEEE C37.90.2; ANSI C37.90.1-1989
• Vibration: US MIL-STD 167, Type I

To protect against static damage, certain precautions should be followed when working with or near this unit, such as touching and holding a grounded metal object (pipes, cabinets, equipment, etc.) to discharge the static electricity on your body to the ground before doing maintenance on the DSLC, wearing natural fiber clothing while performing maintenance on the part, and keeping plastic, vinyl, and Styrofoam materials away from the control, the modules, and the work area as much as possible.

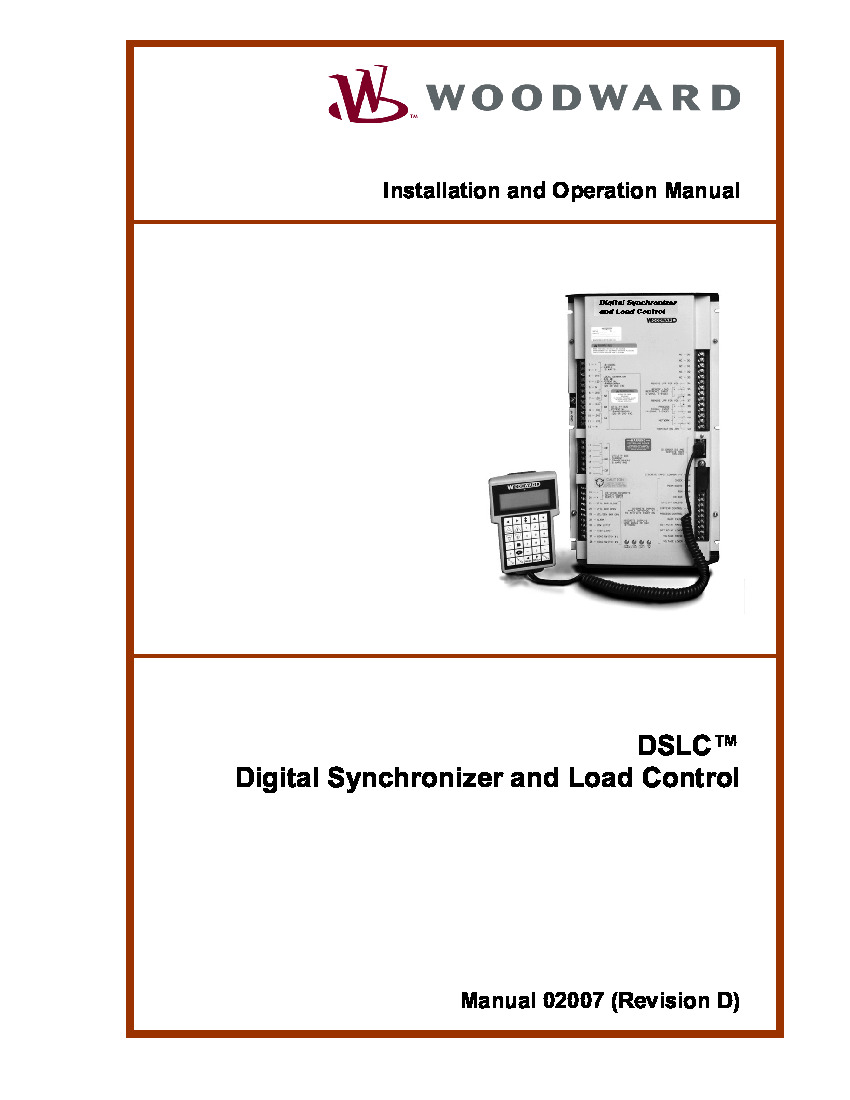

For a more comprehensive list of precautions, as well as additional product information on the 9905-712 DSLC unit, please refer to the Woodward DSLC Digital Synchronizer and Load Control Manual 02007, available online.
